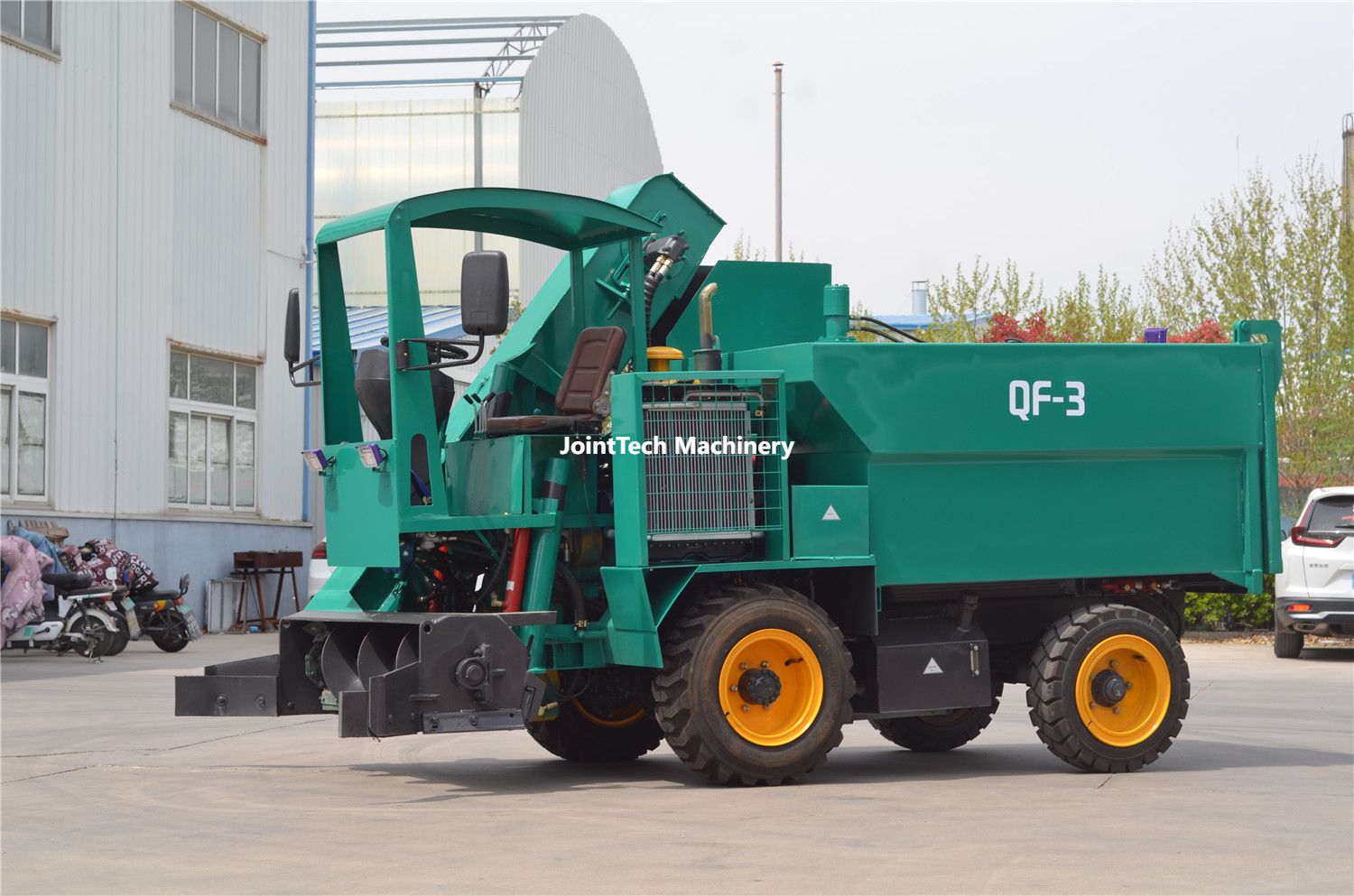

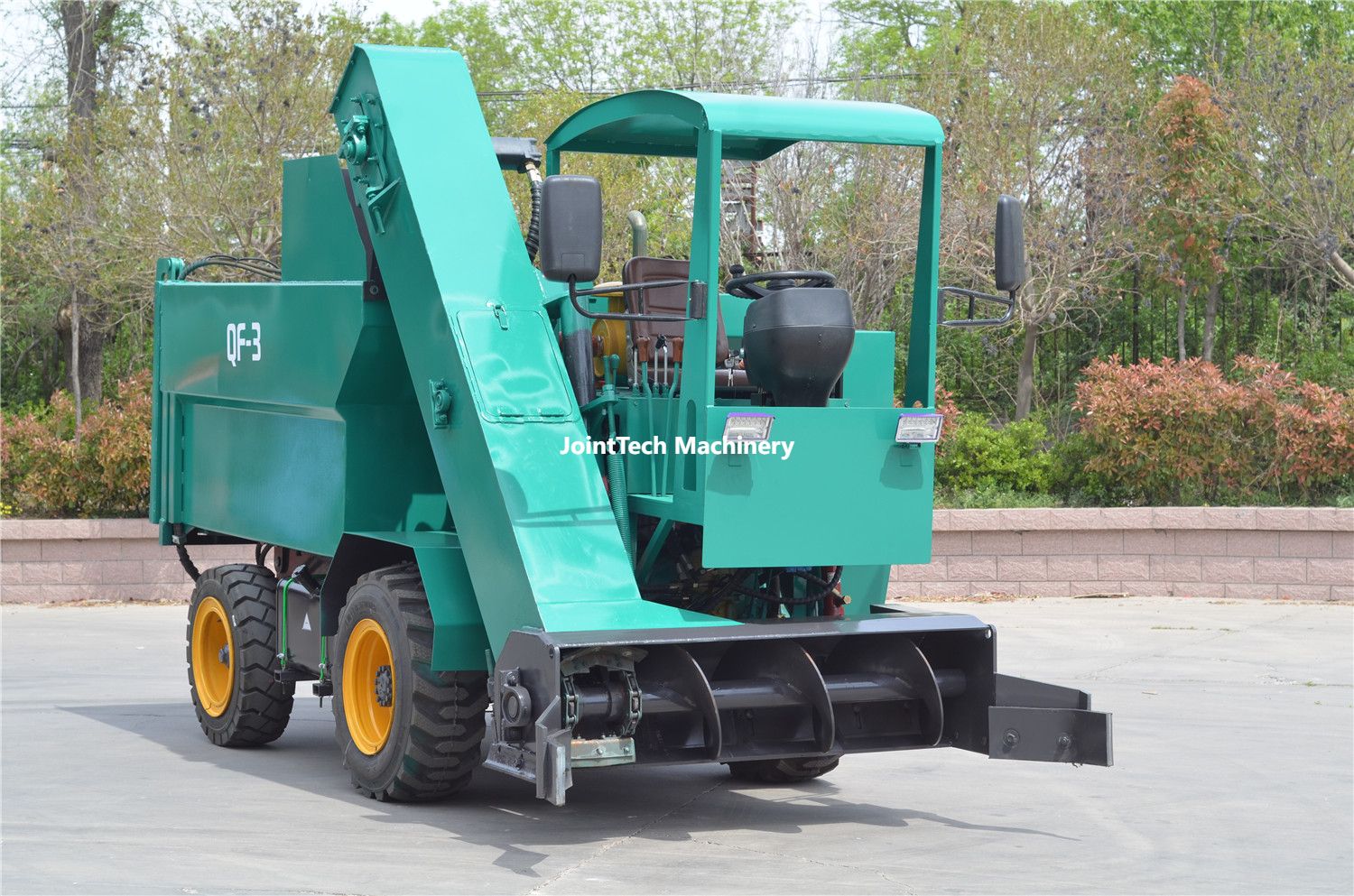

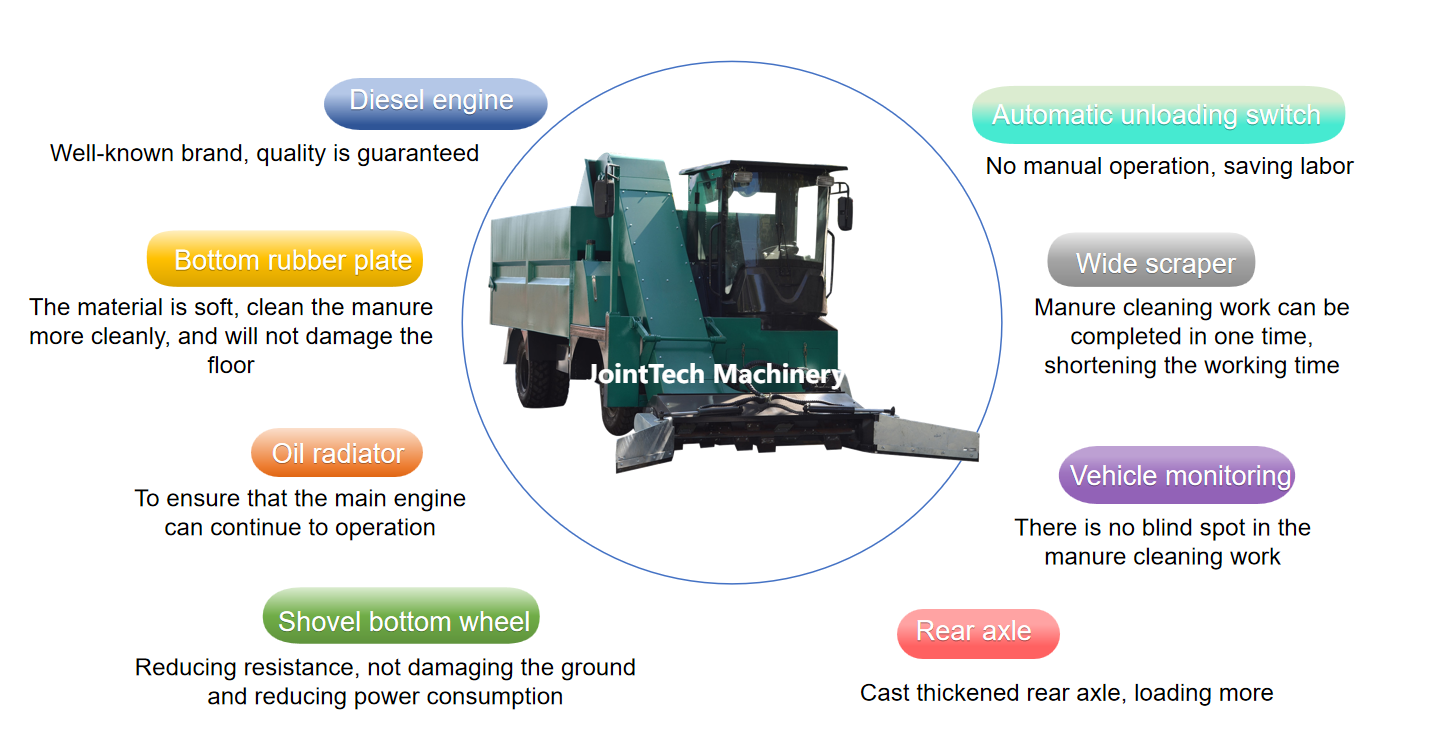

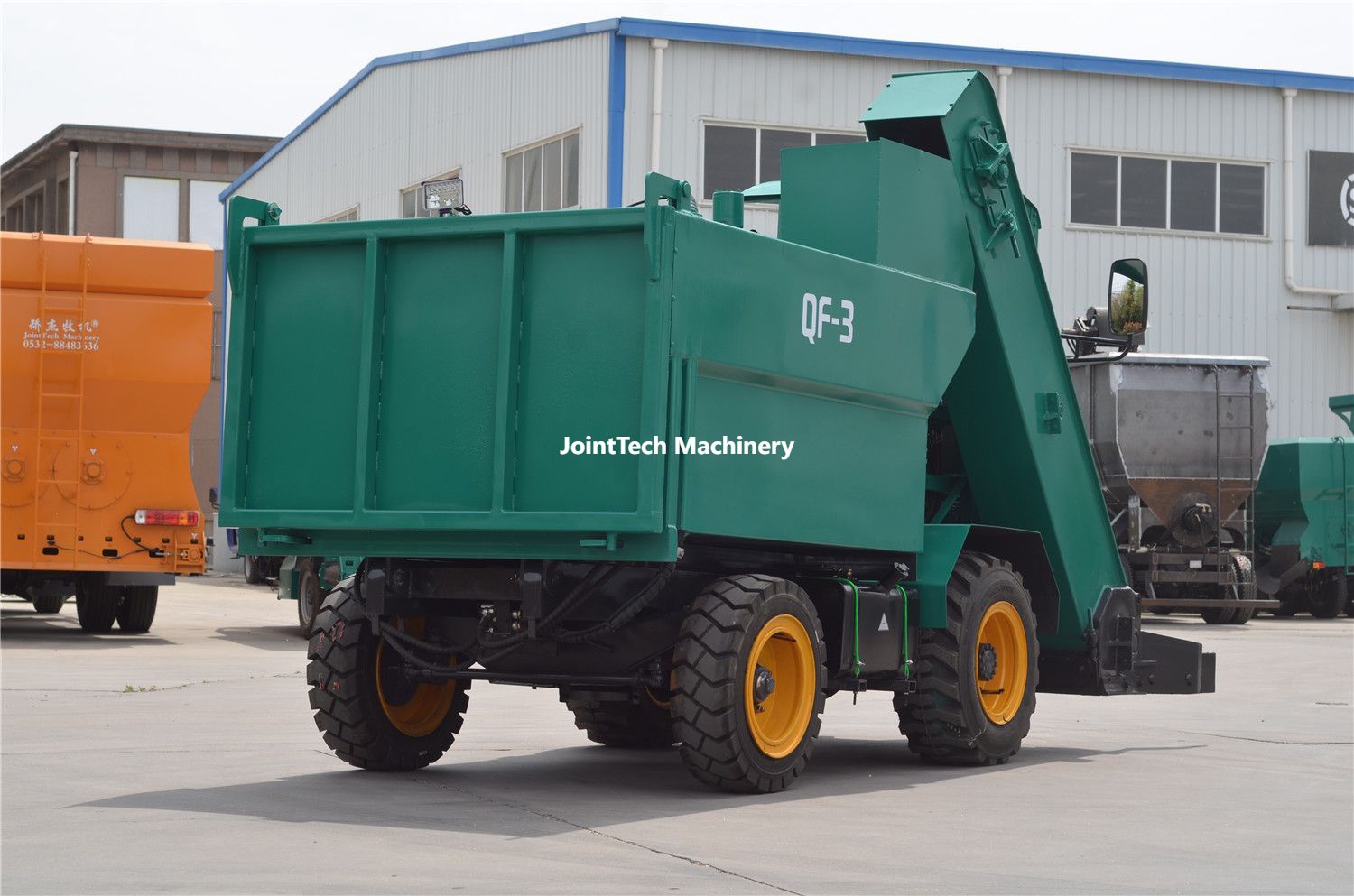

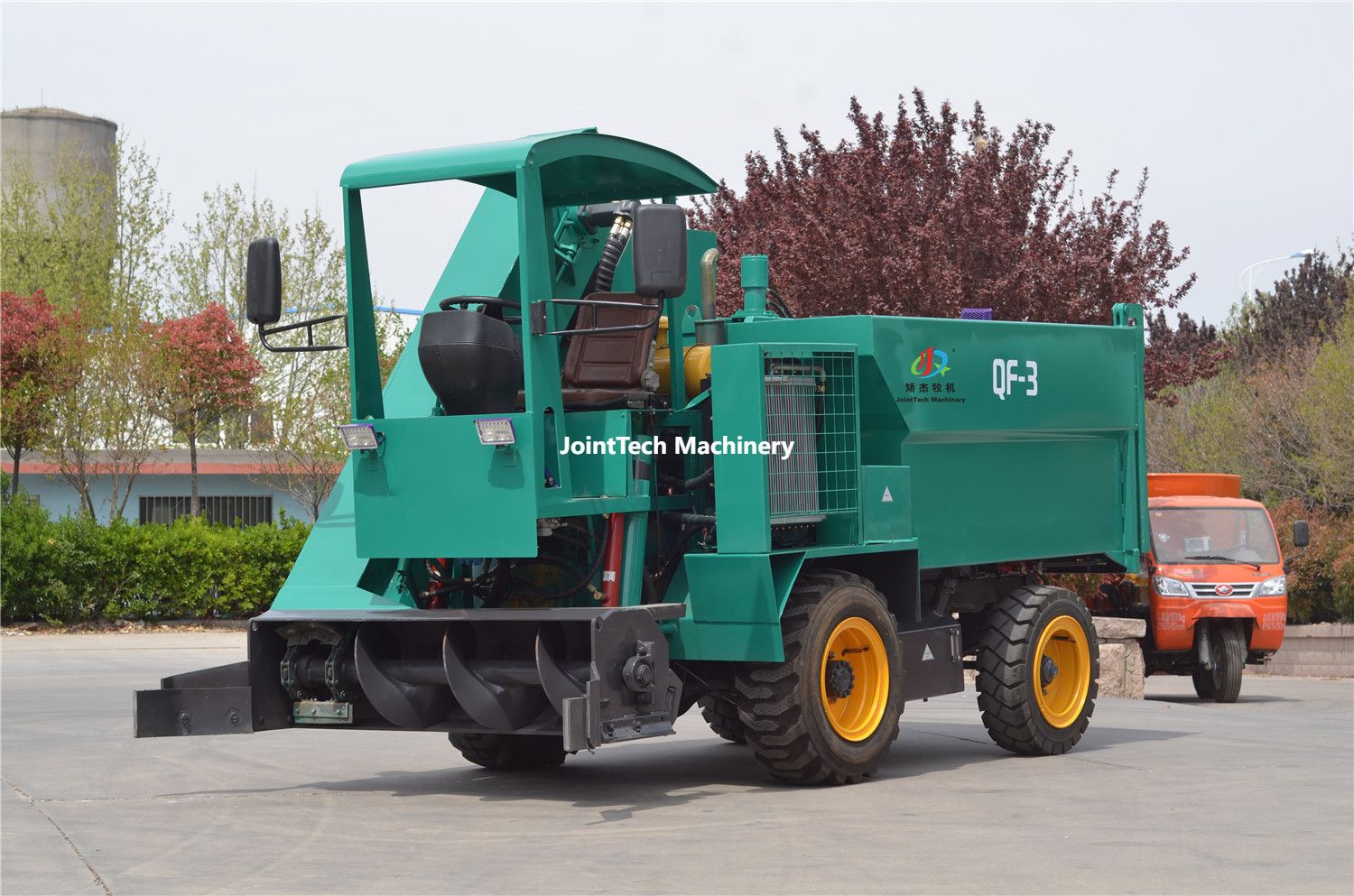

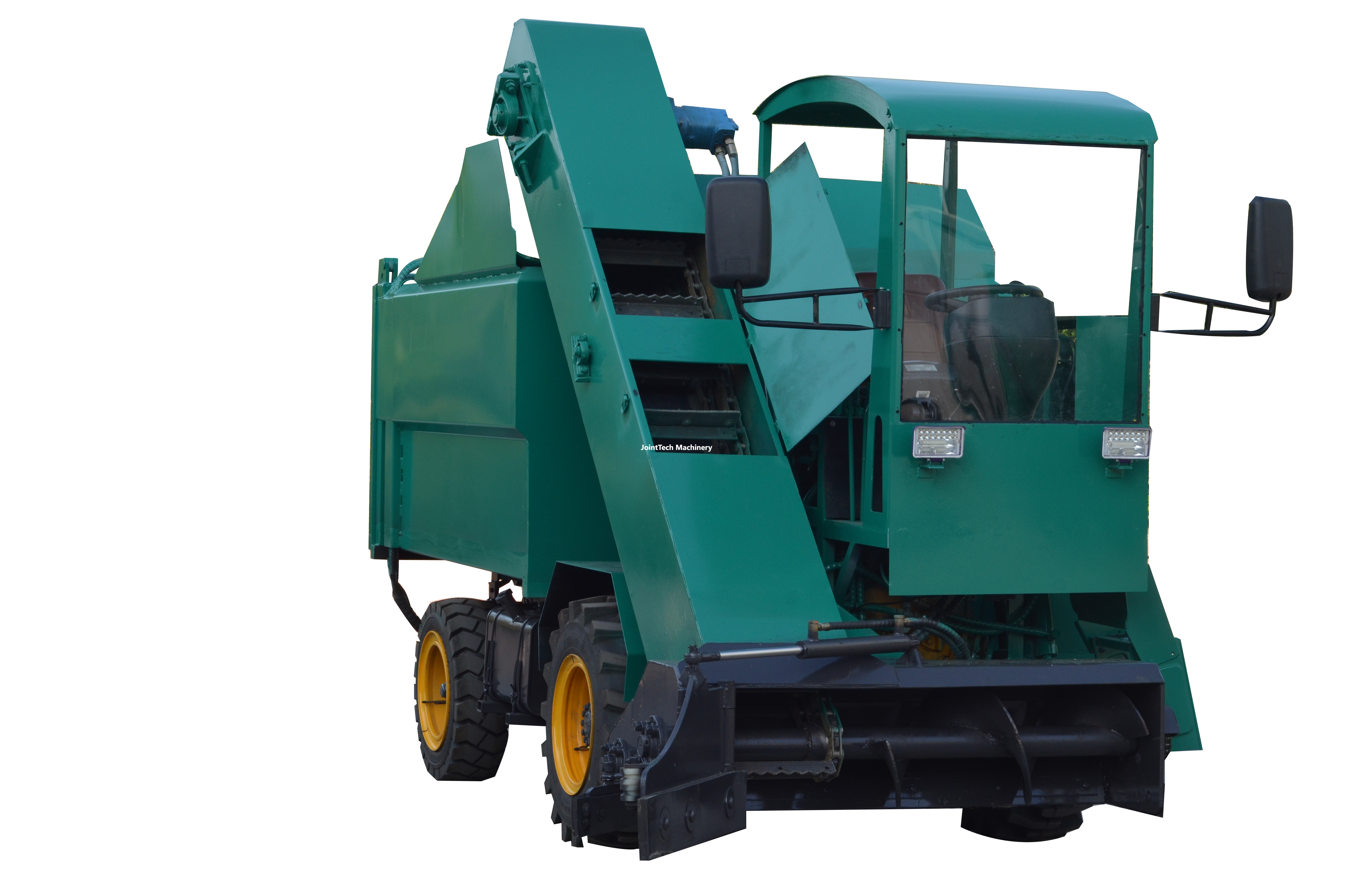

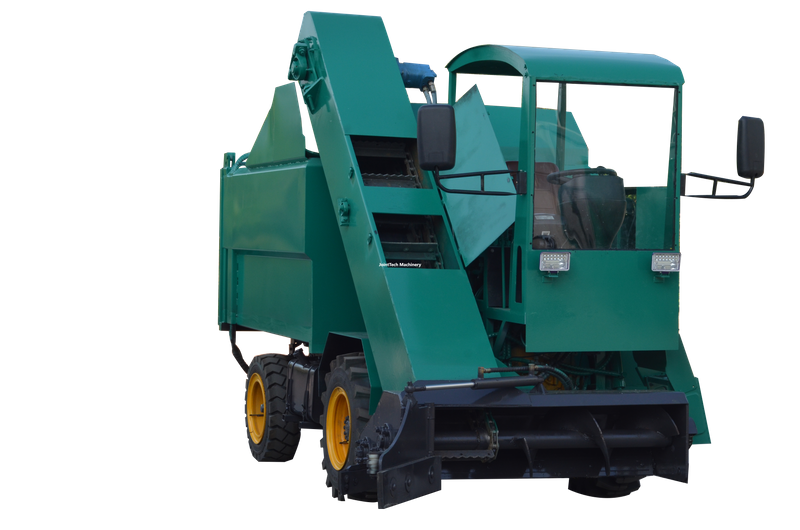

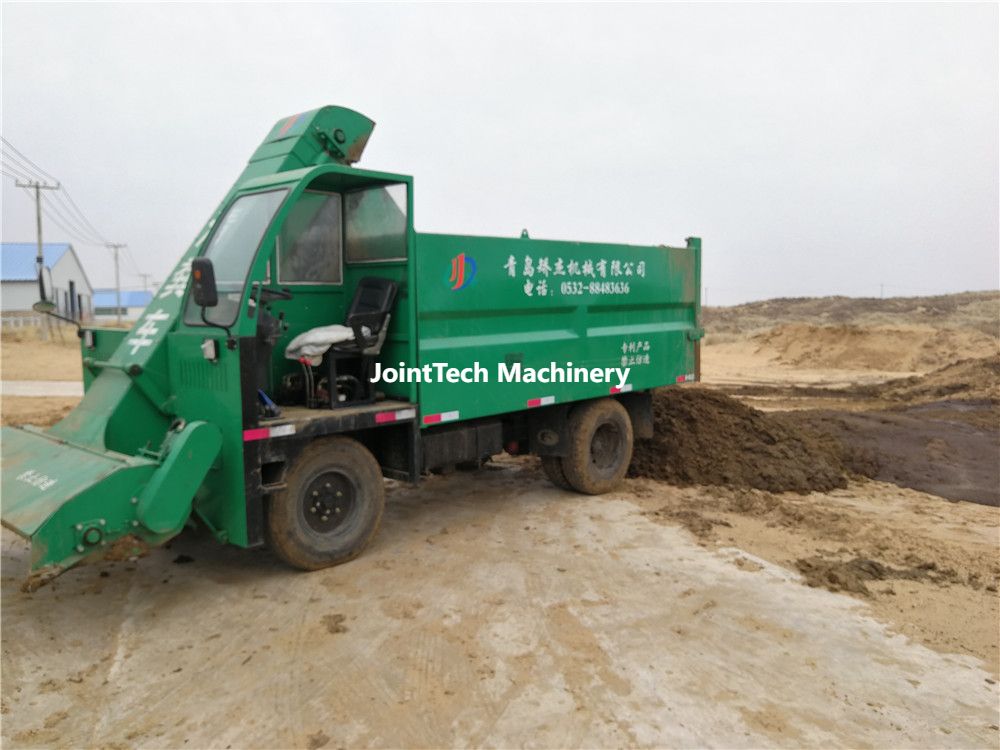

Small Cow Manure Collector Structural Composition

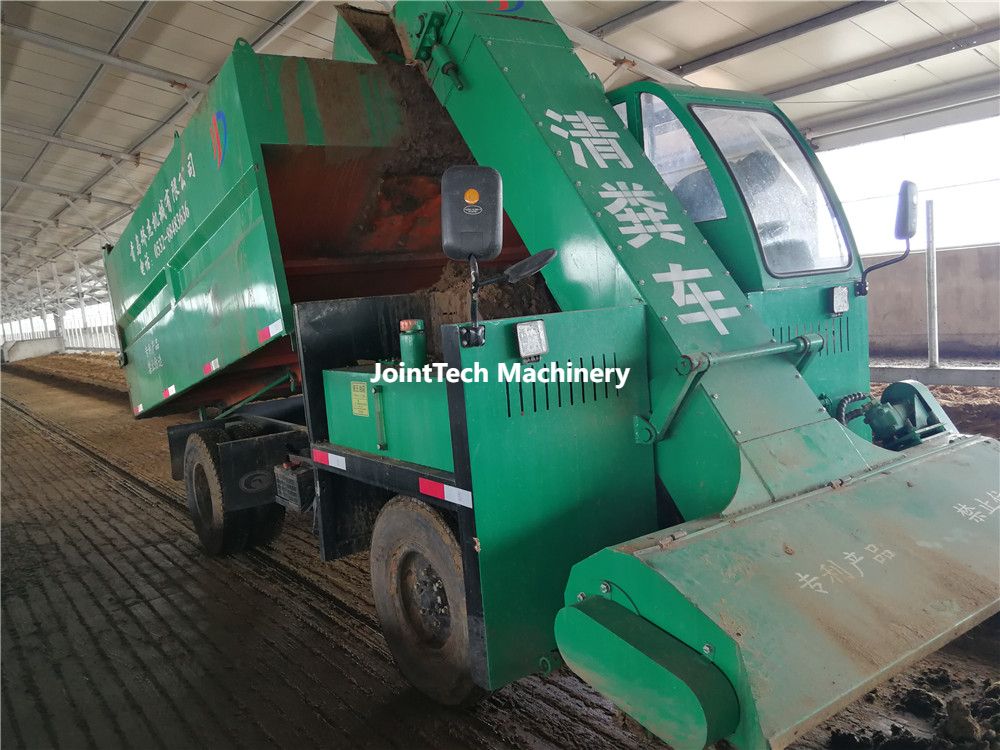

The cow manure collector is used for collecting livestock manure on farms. The manure collector machine is constructed from Q355B material, which is the most durable steel, and is assembled with a frame and a hopper. The engine is powered by a diesel motor.
The manure cleaning shovel head of the machine is designed with widened scrapers on both sides, which can be customized according to the width of the feeding channel, quickly complete the manure cleaning work.
The rubber plate at the bottom of the shovel head is designed to be in close contact with the ground and not damage the ground.
A large area oil radiator is used to reduce the oil temperature and ensure the continuous normal operation of the engine.

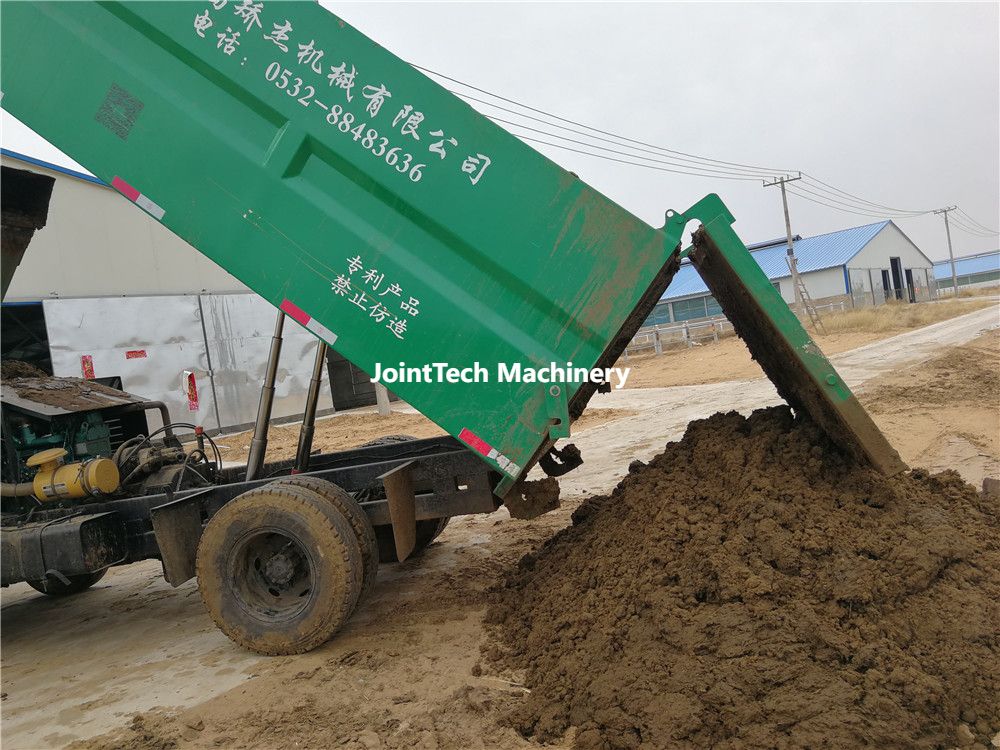

The automatic manure unloading switch does not need to be operated manually, saving labor.

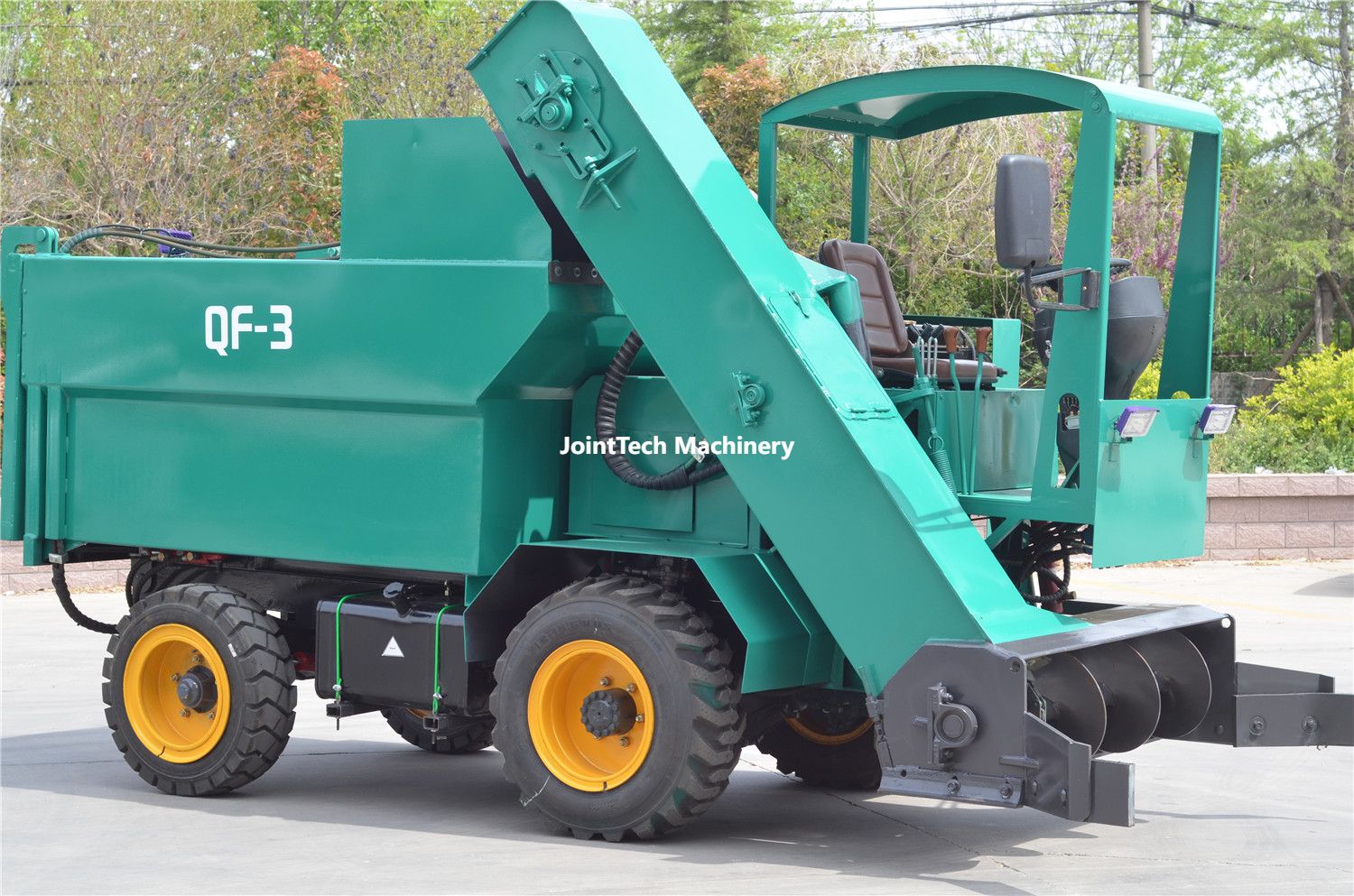

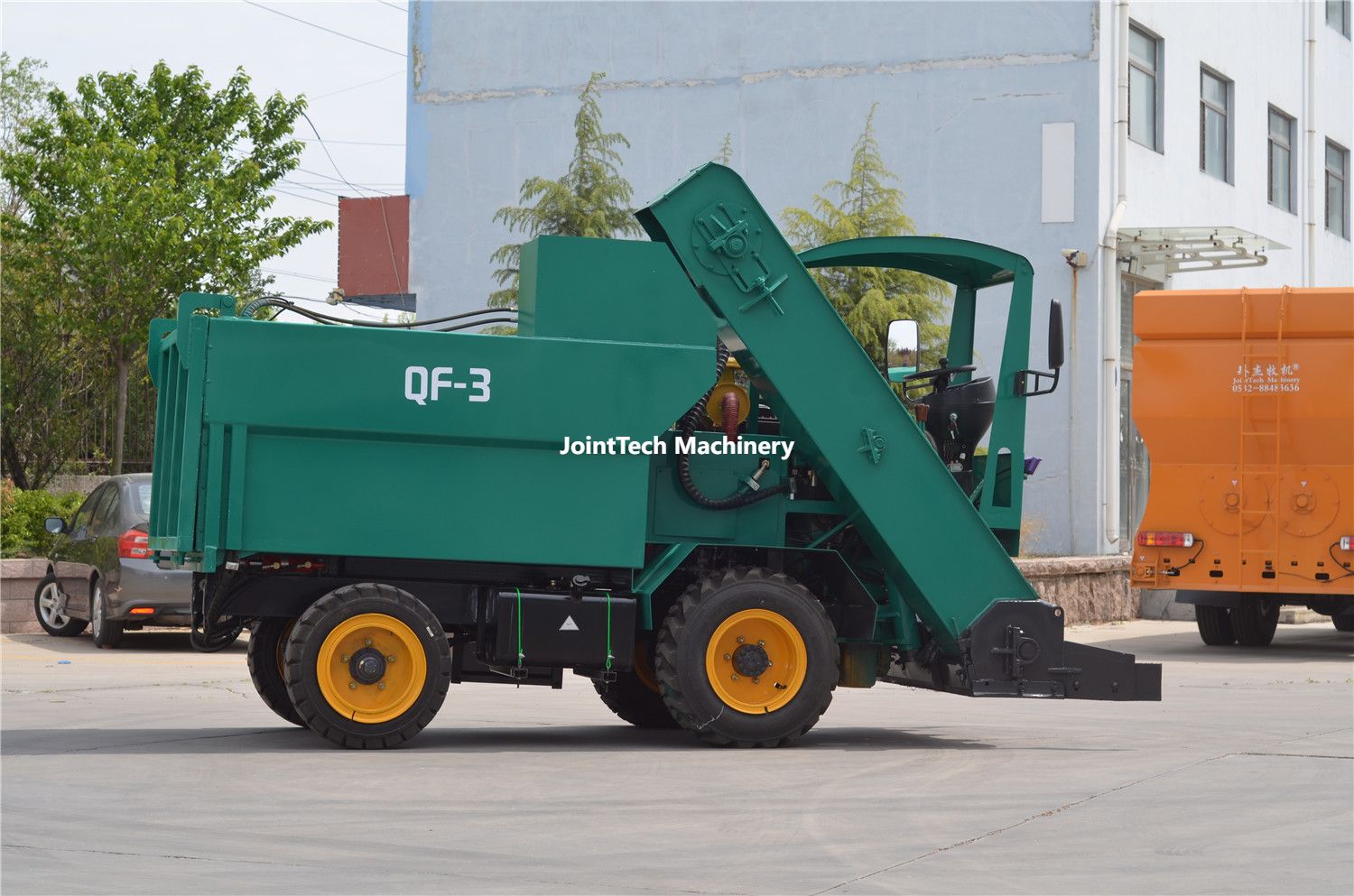

Small Cow Manure Collector Parameter
| 1 | Model | QF-3 |
| 2 | L*W*H (mm) | 4000*1900*2300 |
| 3 | Engine | YUNNEI 490 |
| 4 | Power(HP) | 55 |
| 5 | Loading Weight(kg) | 3000 |
| 6 | Machine Weight(kg) | 2800 |
| 7 | Applicable Cow Farm Scale | 100-300 Cows |
Small Cow Manure Collector Configuration
Fully Welded Mix Boby: Q355B

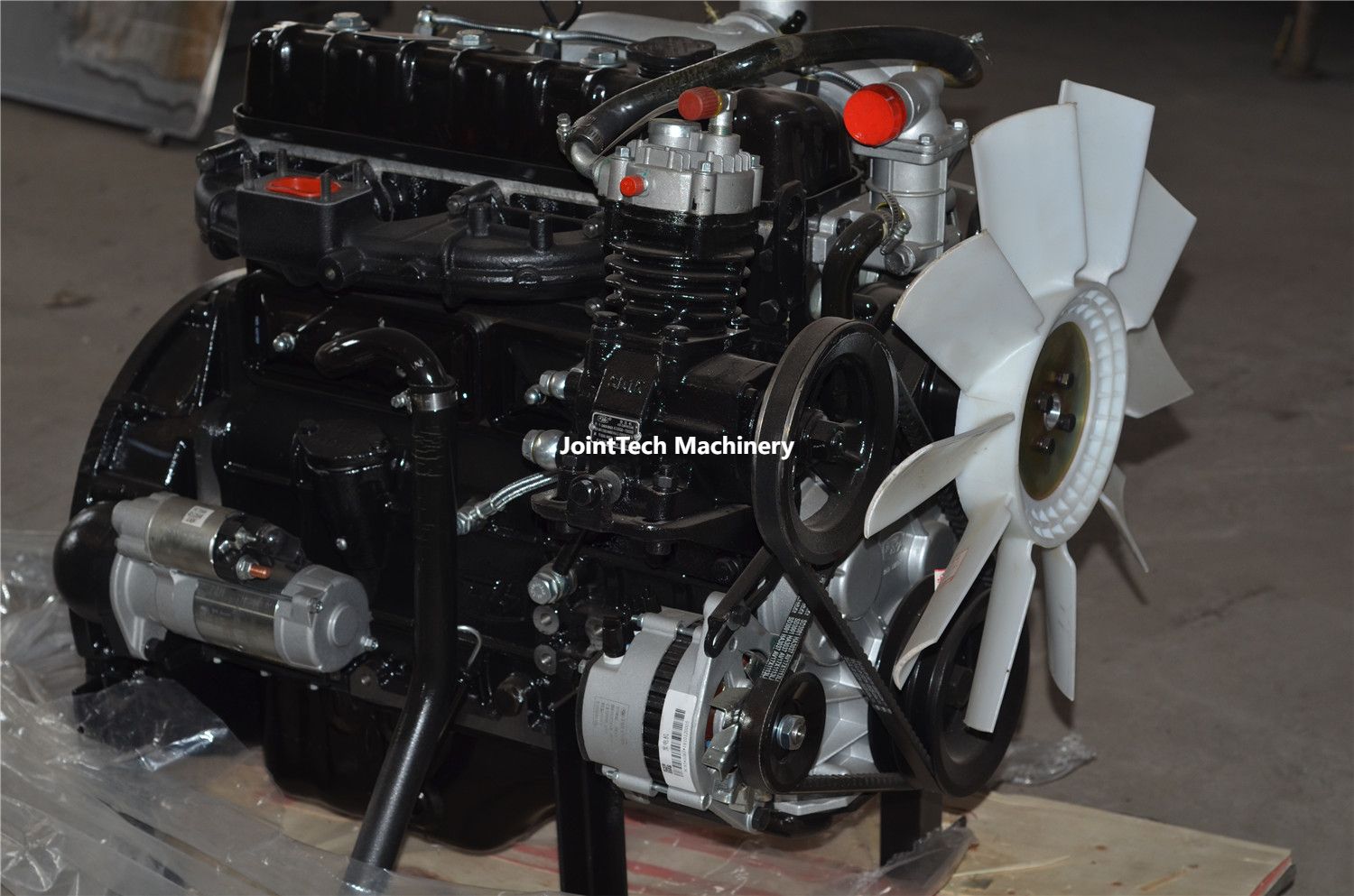

Diesel Engine
YUNNEI 490 powerful diesel engine. 4 cyclinder, strong power and low fuel consumption, easy maintenance.
Adjustable scraper width
The hydraulic cylinder expands the scraper to both sides, and the maximum width of manure removal can reach 3.6 meters.
Bottom Wheel
By enabling the shovel to glide and roll on the ground, it reduces resistance, prevents damage to the surface, and lowers energy consumption.

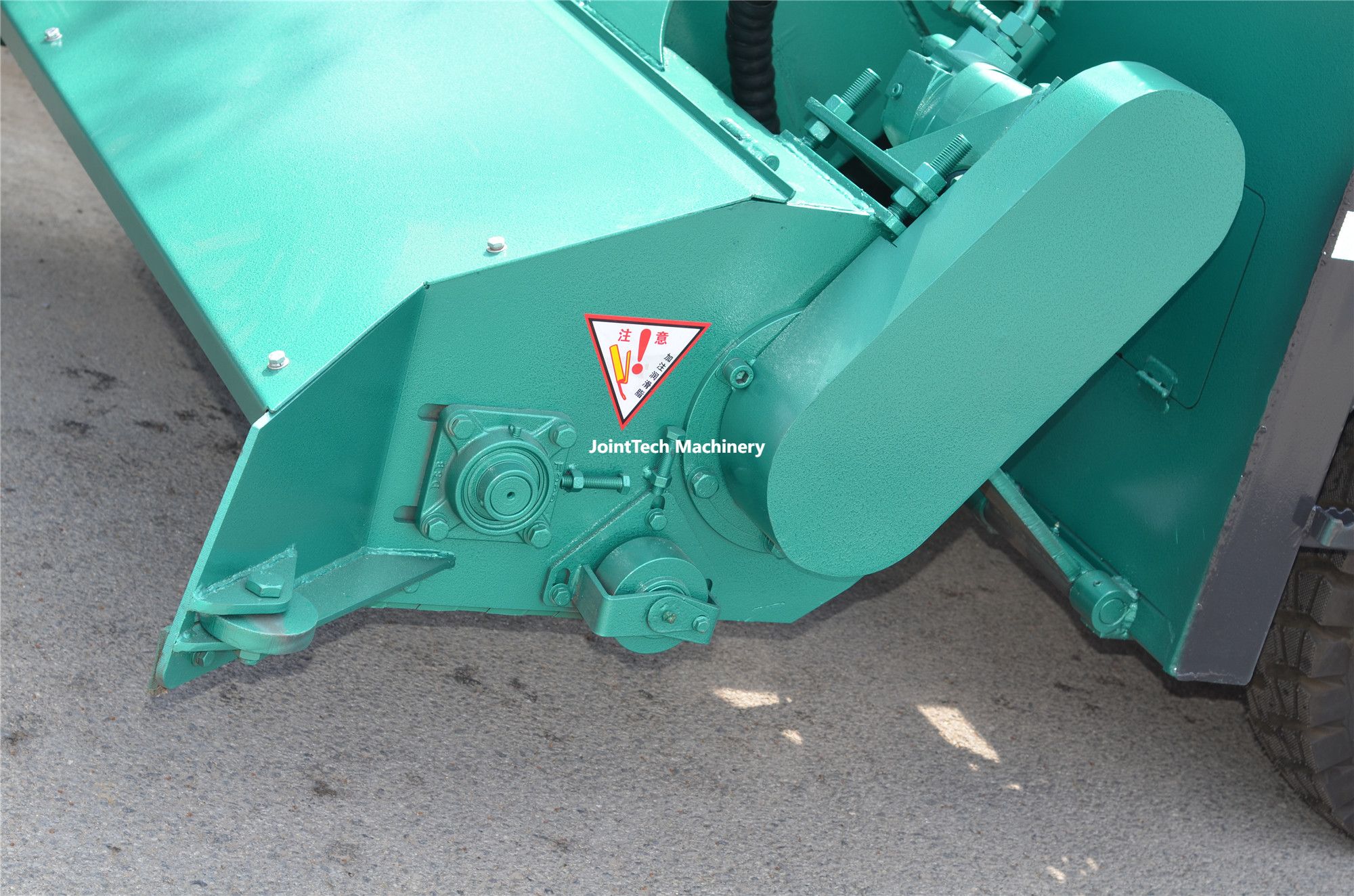

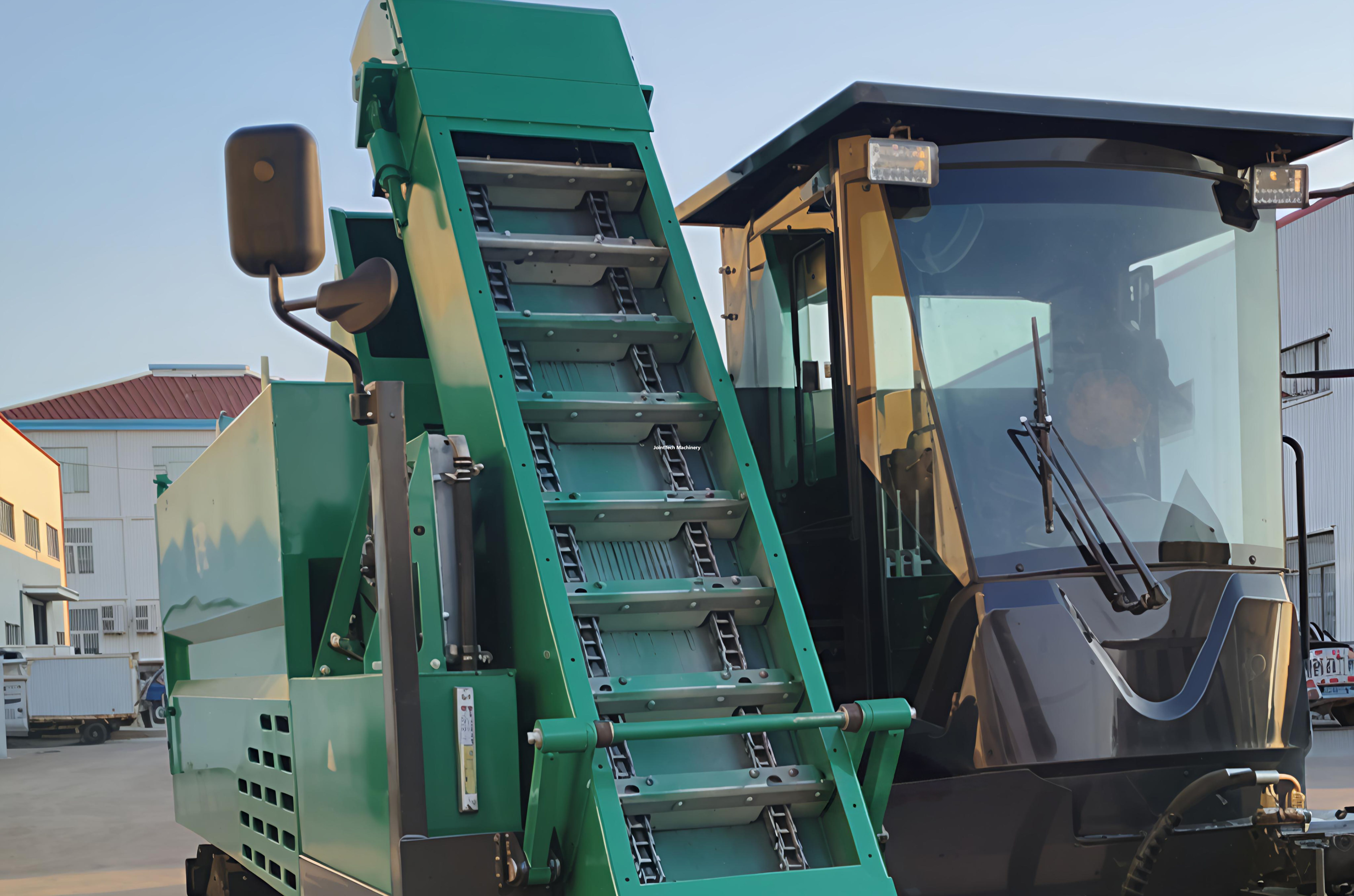

Chain Lifting
When the manure scraper collects some excrement /feces, they will be transported to the rear via chains and rubber plates.

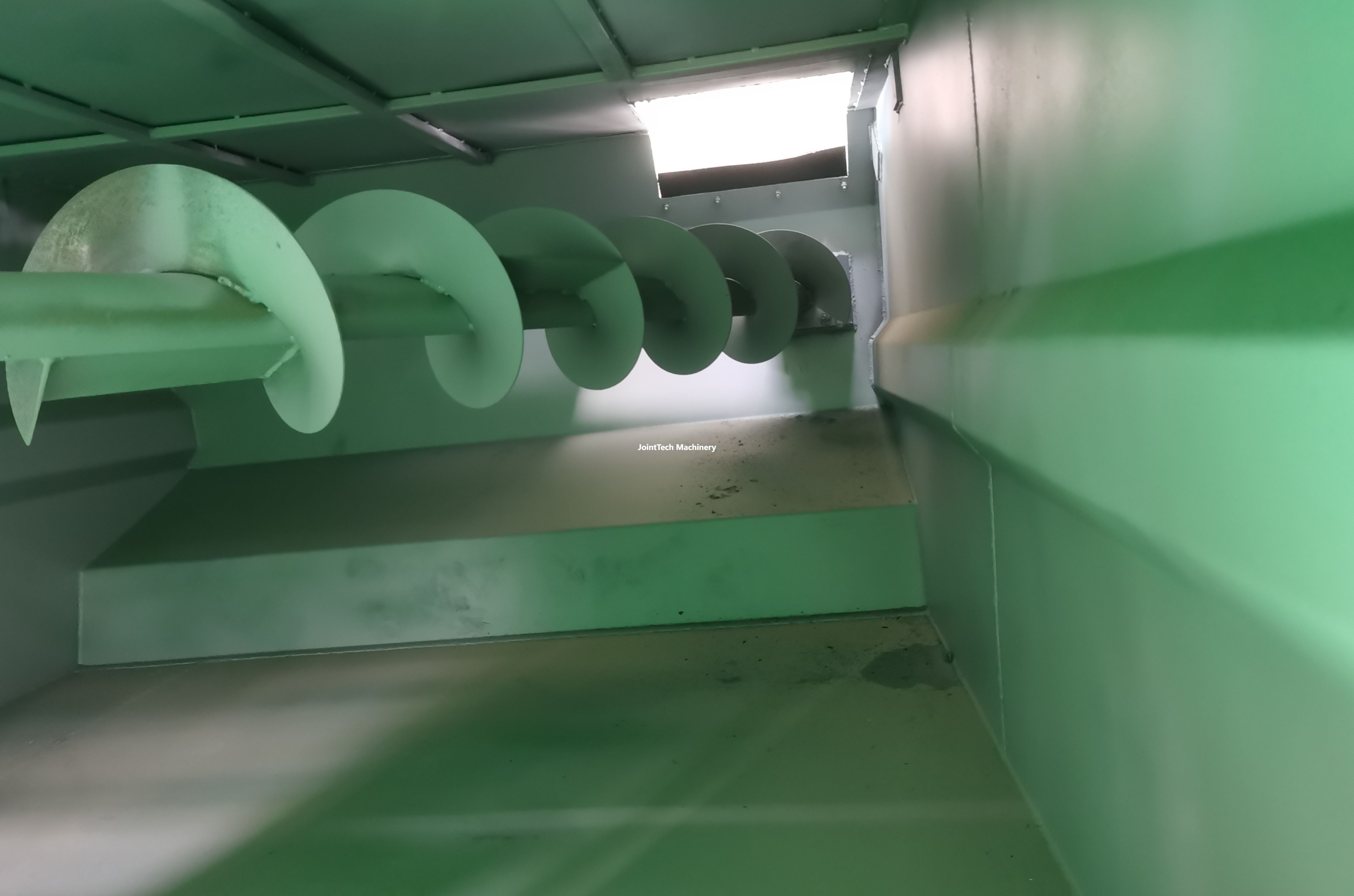

Inside auger
The rotating auger inside the box prevents manure from clogging at the entrance.

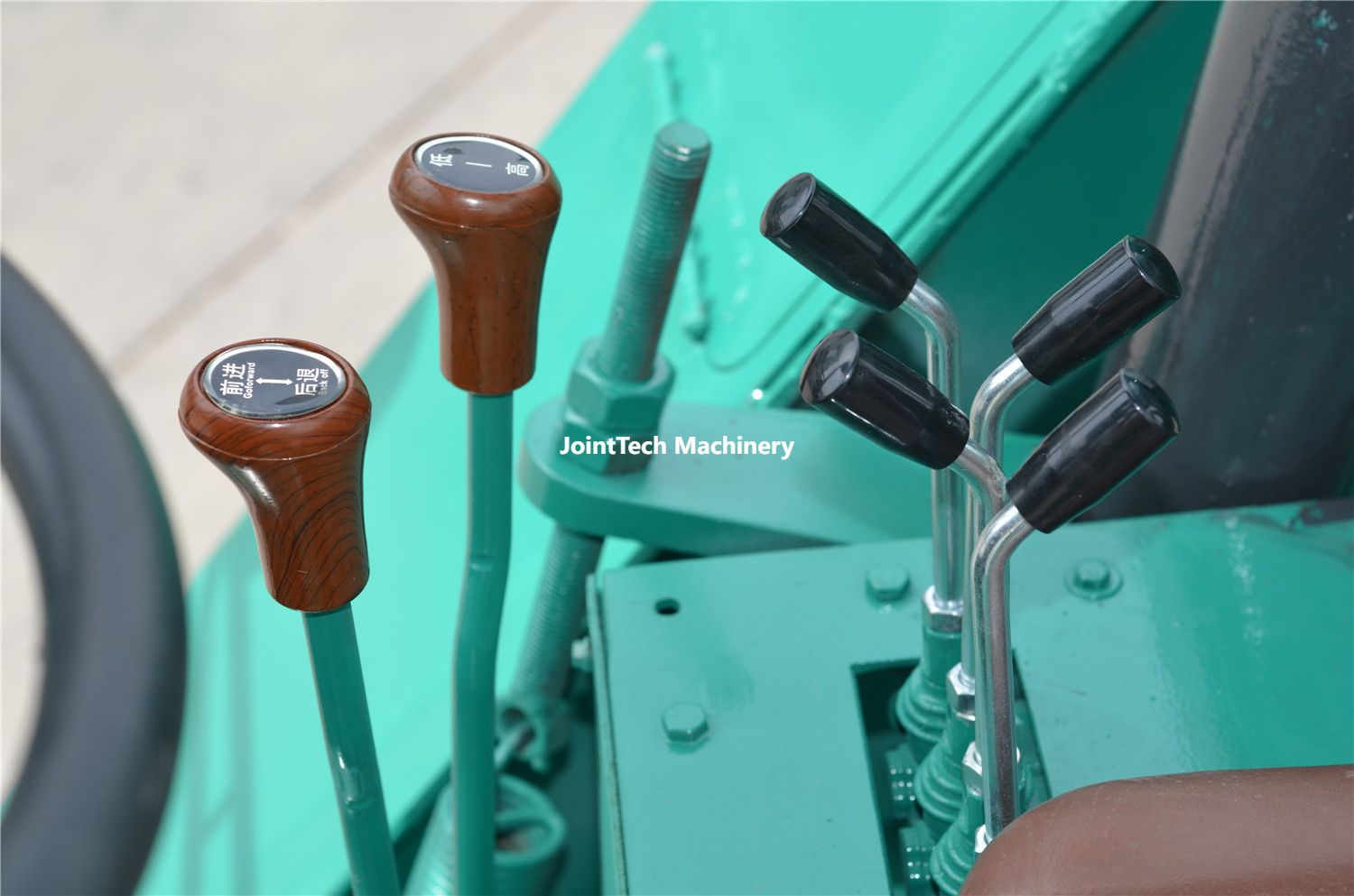

Operate Rod
Only one driver needs to sit in the cab and push the pull rod to complete the manure removal work, saving a lot of labor and easy to operate.

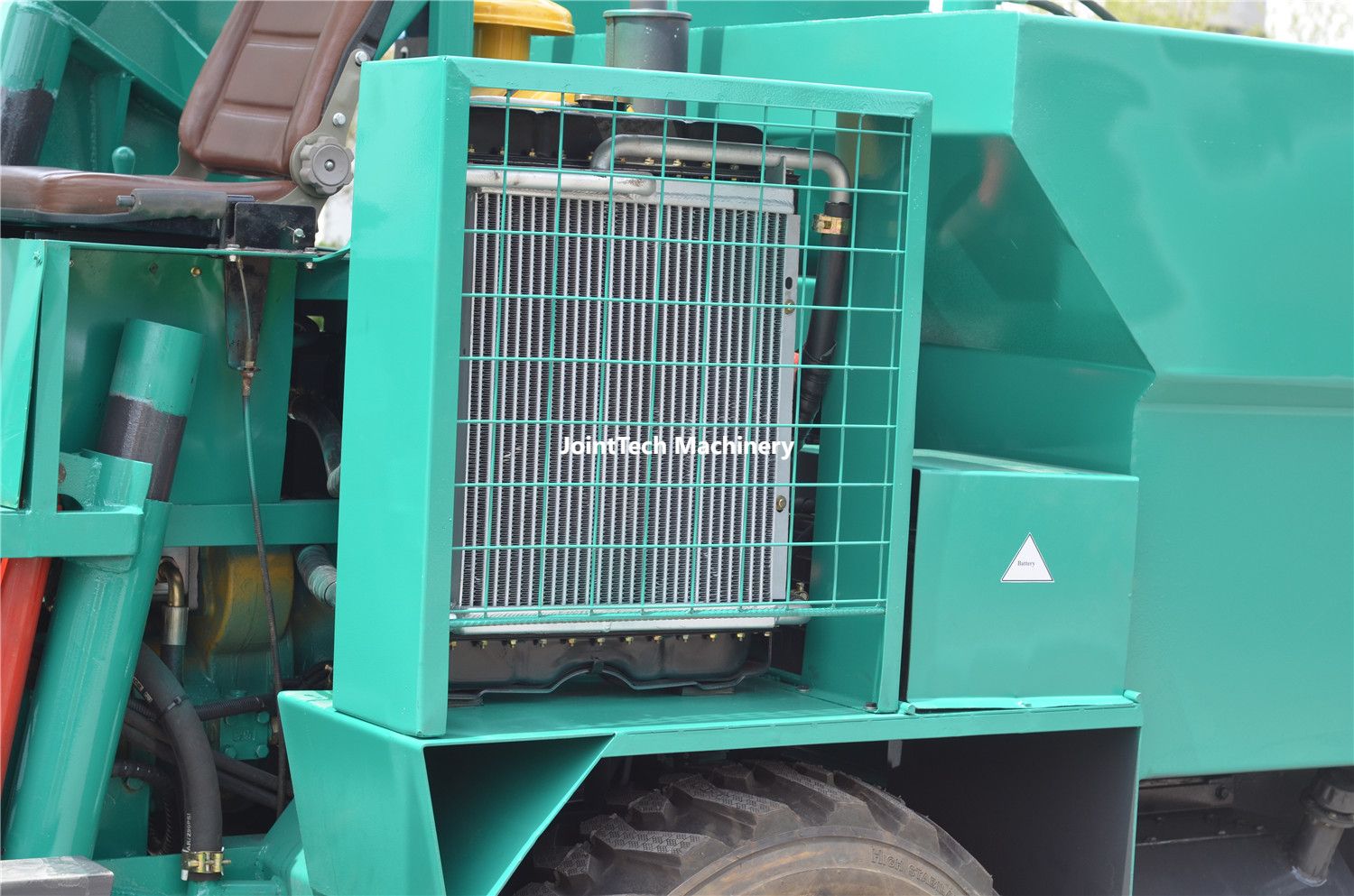

Oil Cooler
Utilize a large area oil cooler to lower oil temperature, ensuring the engine operates continuously and normally.

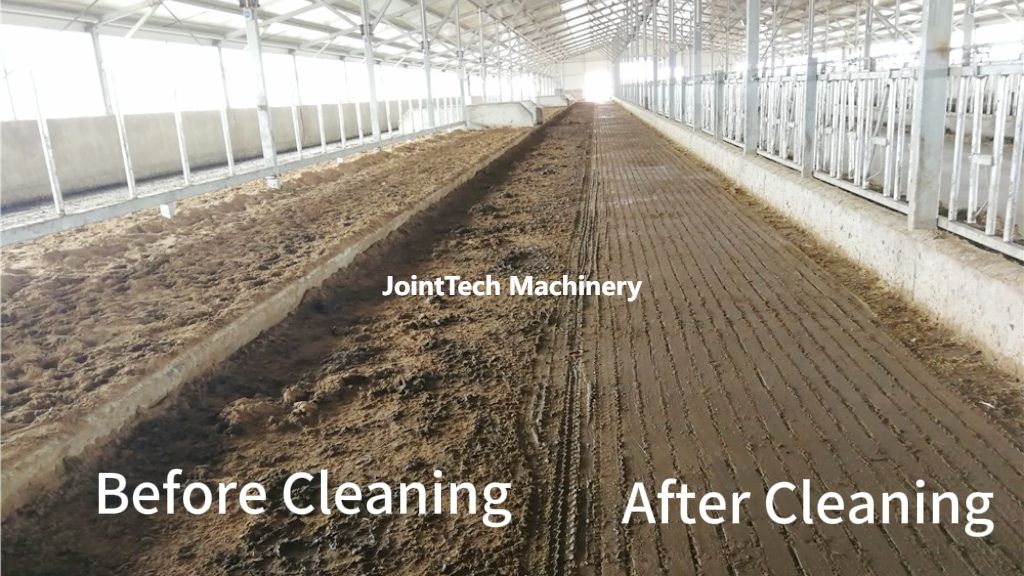

Use Of Cow Manure Collector
Q: Why do you need a cow dung collector?
a. A comfortable experience for the cows
b. A cleaner floor results in cleaner hooves
c. Save a lot of labor
Q: Does this cow manure collection machine require electrical wiring?
The cows and yourself will experience little to no hindrance from the machine. The machine does not require cables or
gutters. This ensures a more secure living environment for the cows. Thanks to its compact design the collector can easily navi-gate in between the cows, the sorting gates and around the cubicle passages and waiting area.
Q: What advantages does this cow manure collector machine offer?
The Collector is specifically designed for barns with solid floors and takes a revolutionary diverse approach when compared to traditional manure scrapers. The Collector does not push manure, but use auger and chain to transmit it.
This makes the build-up of manure -in which cows stand - a thing of the past. This not only makes for a cleaner floor, it also ensures the cows' hooves remain cleaner. This improves both cow health and the well-being of the animals.
Q: What is the working efficiency of this cow manure collector machine?
It needs only one worker to operate and can finished 1000 cows farm's manure collecting within 2 hours which makes this job easier.lt is very effective and labor saving. It can load and unload automatically,after the dung/manure collect work is over, you can transport the dung/manure to where you need it.
Q: What about warranty?
We will send the wearing parts of each machine when delivery. Warranty is 1 Year, during this period, we will offer free spare parts if they are damaged. After warranty, we send the parts in a reasonable price.
