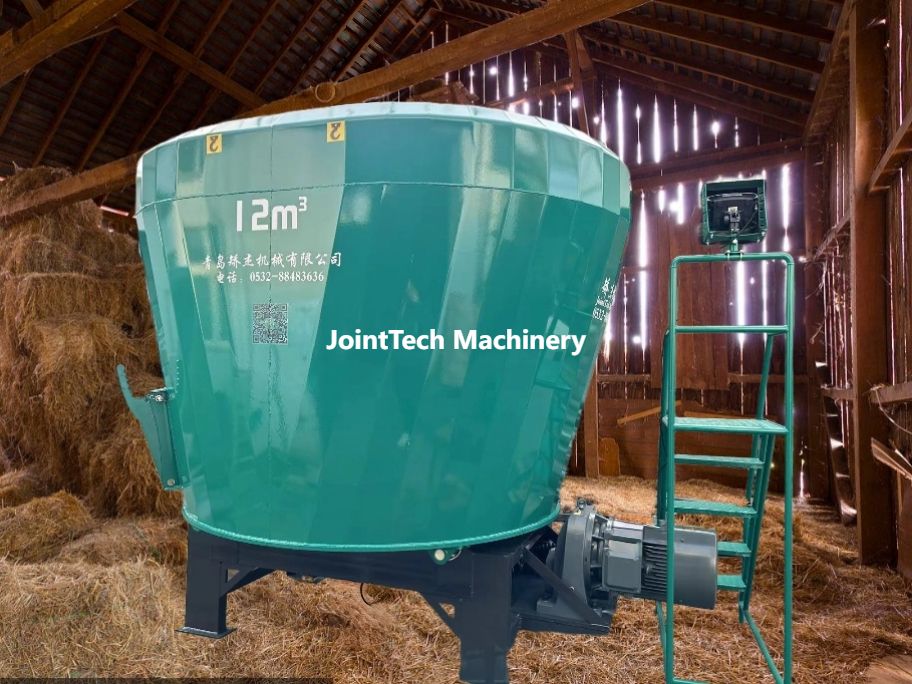

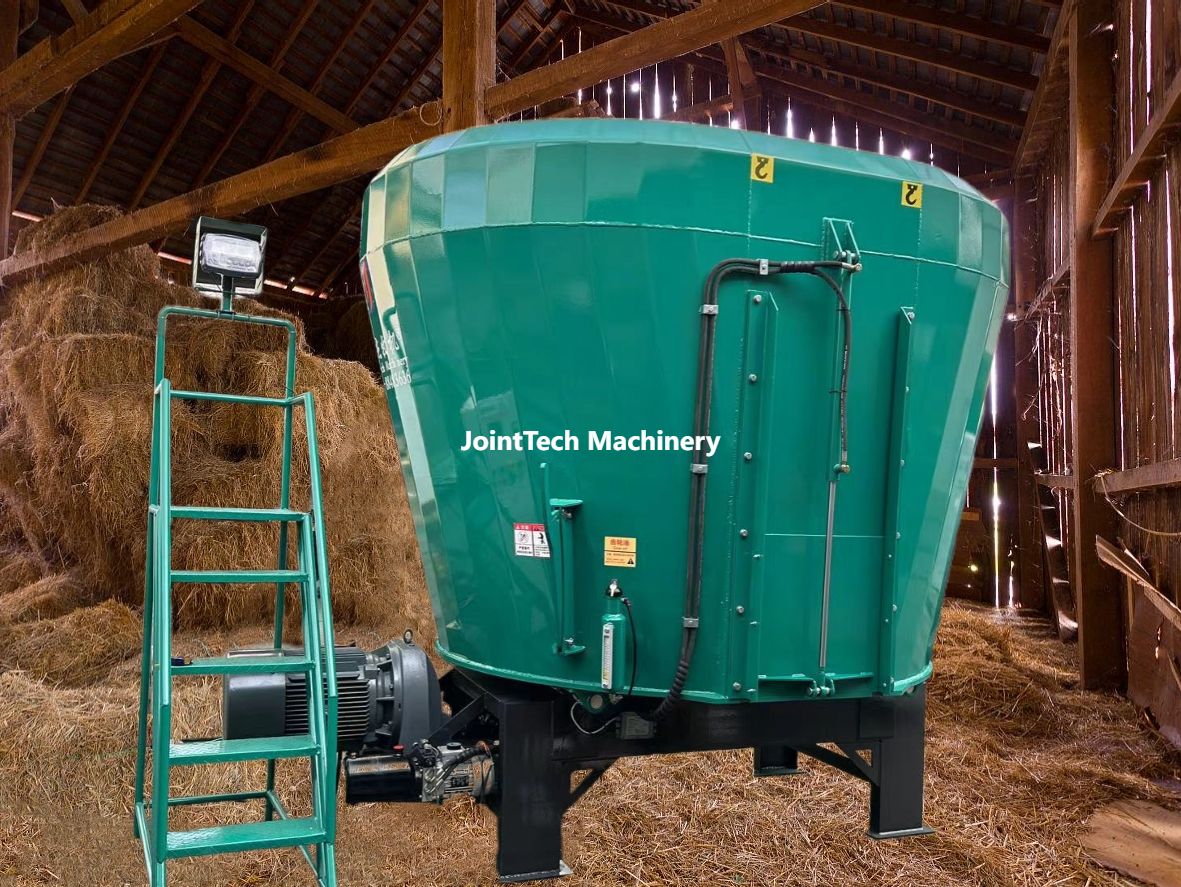

Single Vertical Auger Stationary TMR Mixer Features：

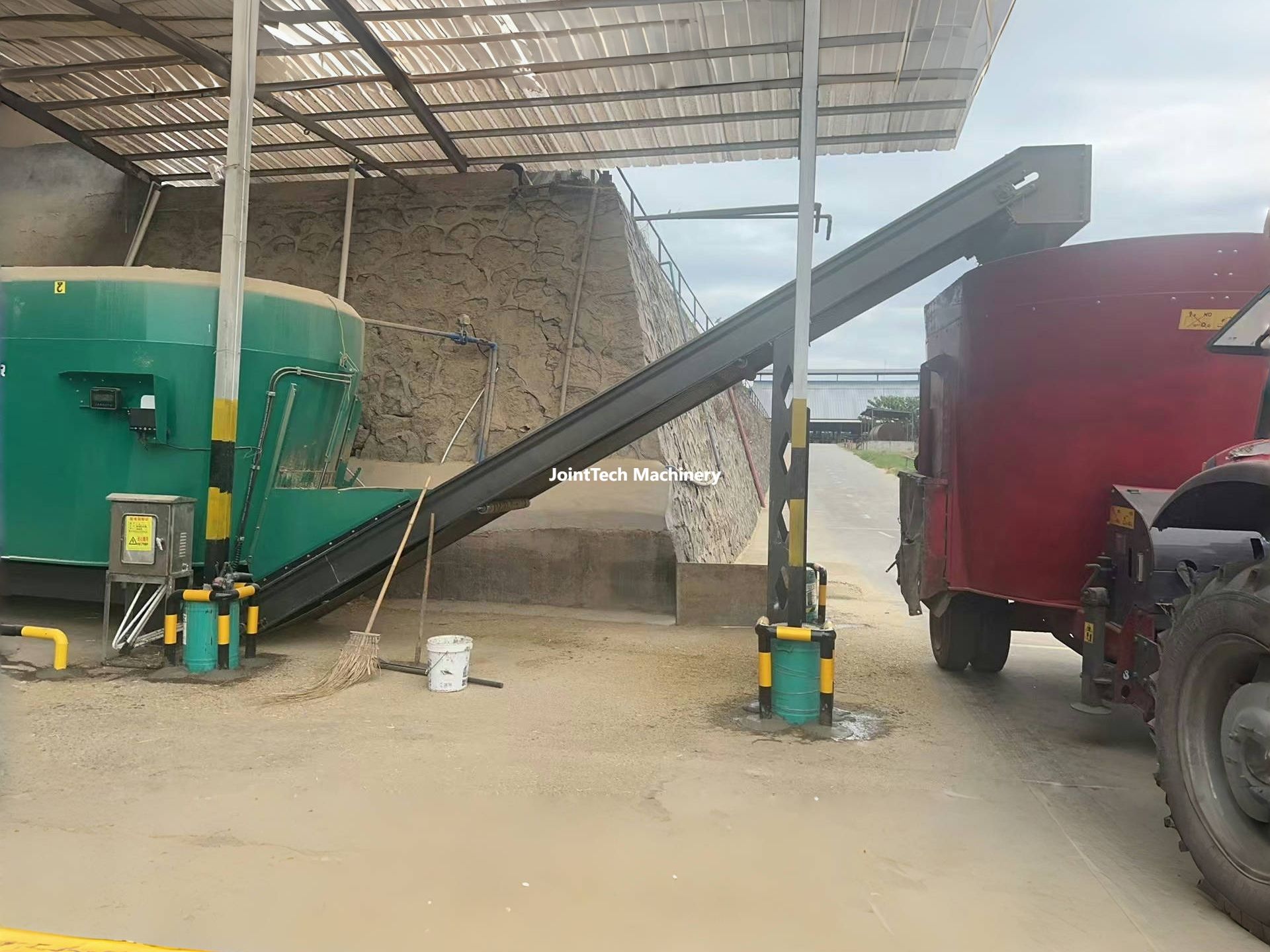

In large farms where the feeding stations are spread over a large area, it can be advantageous to mix the feed in a central location and then to discharge it using a delivery truck. A stationary feed mixer can also be a great solution on small farms.
1. The Mix Auger is made using CNC forming with a metal material of Q355B, featuring a thickness of 16 millimeters, and is additionally equipped with an 8 millimeter thick wear-resistant plate to extend the service life of the equipment.
2. The cutting blade thickness is 8 mm, tungsten carbide.
3. Mix box side thickness is 10 mm, mix box floor thickness is 20 mm.
4. The weighing system is sensitive and stable, and the display is clear. Brand: Avery Weigh-Tronix.
5. The advantage of stationary feed mixers is that they are powered by electricity, enabling you to save fuel costs.
6. Its simplicity means any maintenance costs are minimal and the machine operates at high efficiency.
Single Vertical Auger Stationary TMR Mixer Specification：
Model | L*W*H (mm) | Cutting Blade (Set) | Motor Power (KW) | Max Load (Kg) | Mix Time (Minutes) |
STMR-05 | 2880*1750*2100 | 6 | 15 | 1500 | 20 |
STMR-07 | 3160*1890*2380 | 6 | 22 | 2400 | 20 |
STMR-09 | 3460*2160*2630 | 9 | 30 | 3000 | 20 |
STMR-12 | 3800*2400*2800 | 15 | 37 | 4200 | 20 |

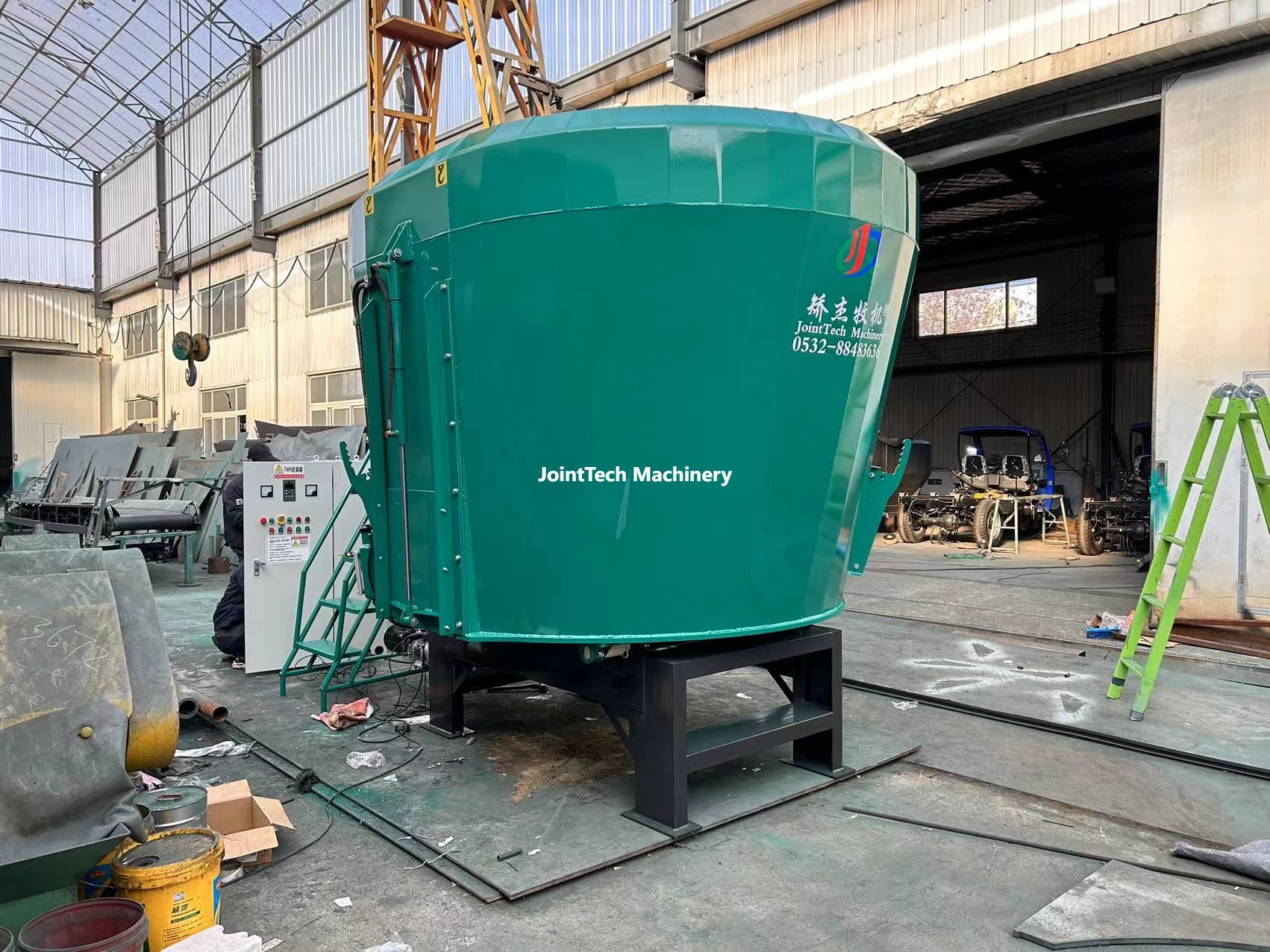

Detailed Images

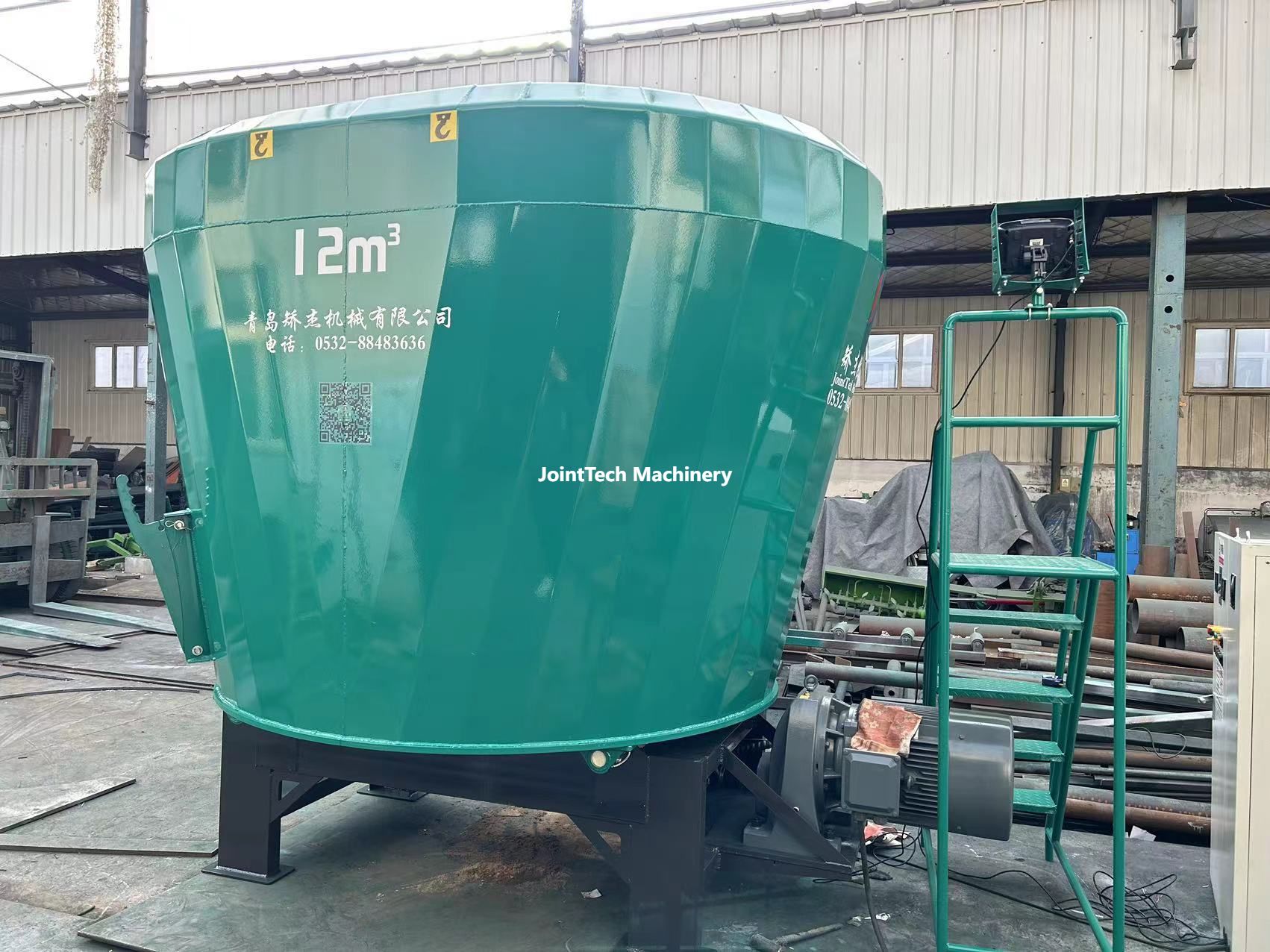

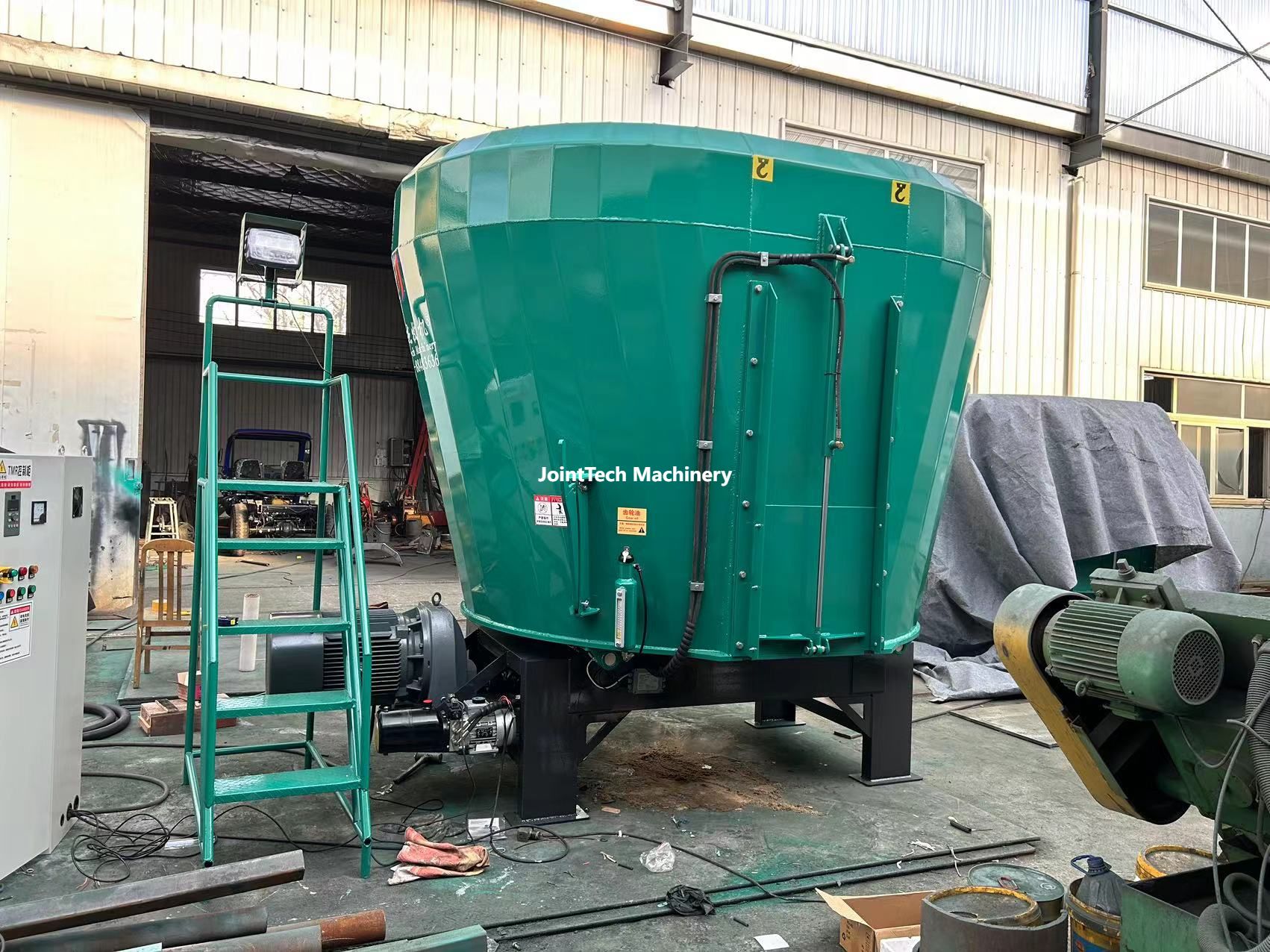

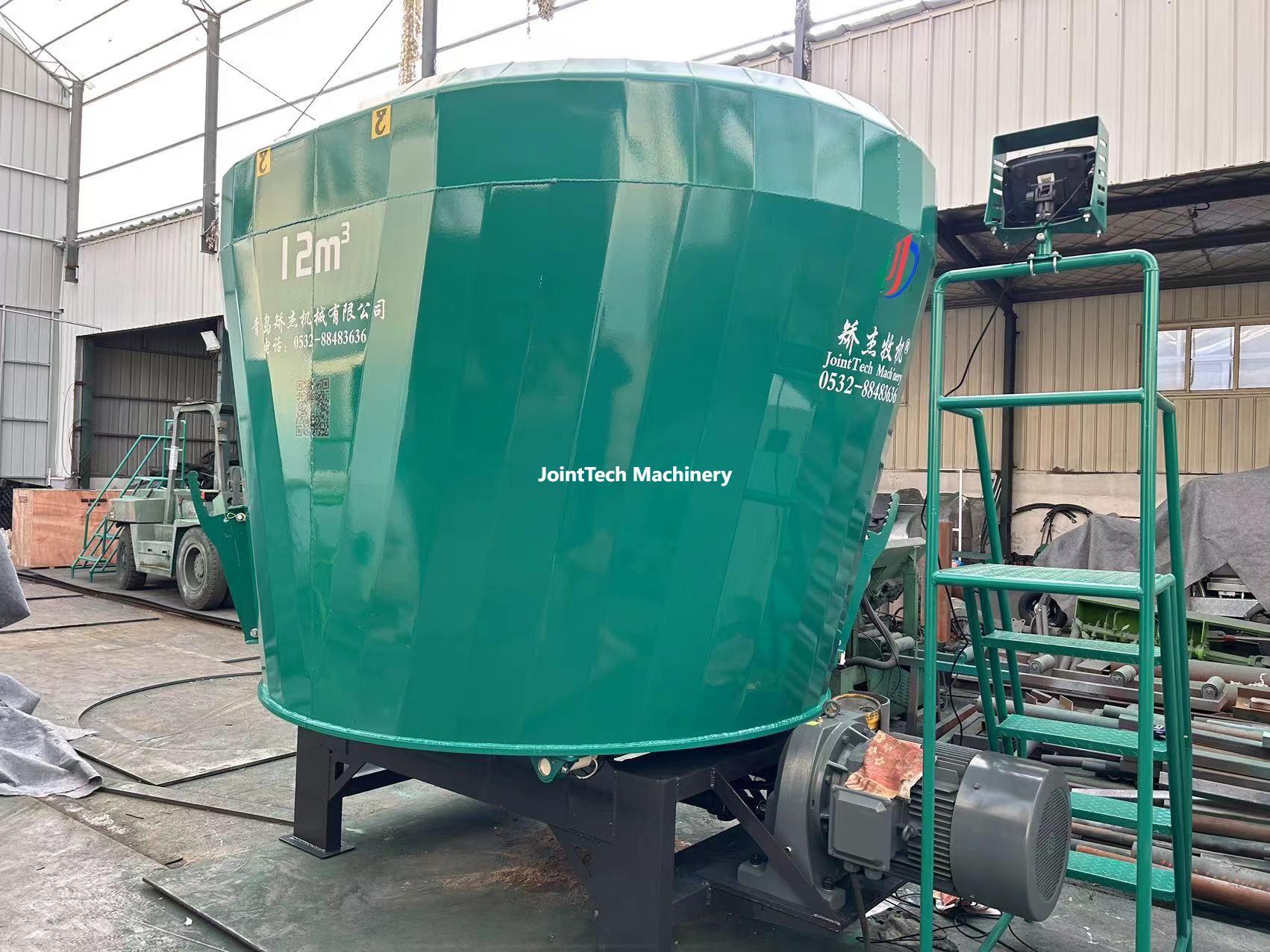

Fully Welded Mix Boby: Q355B
Floor Steel Thickness: 20 mm
Side Steel Thickness: 10 mm

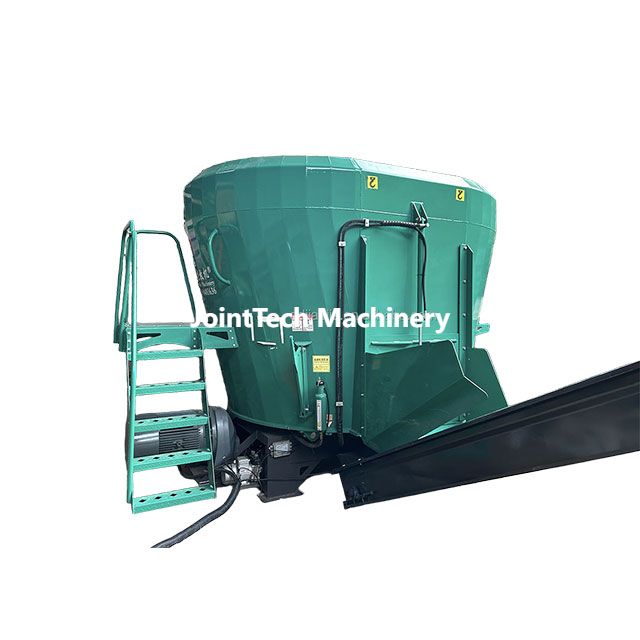

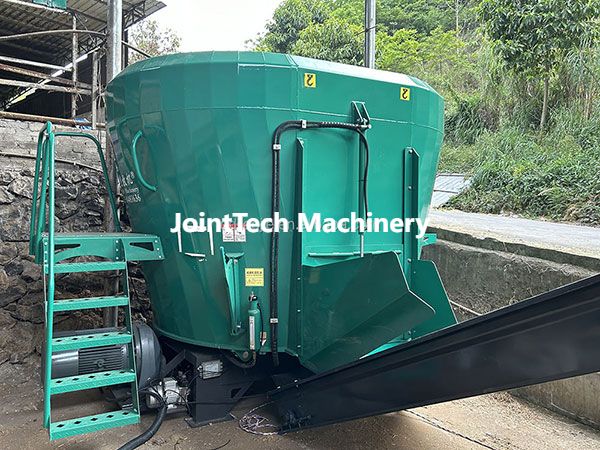

Ladder
Facilitates observation of the conditions inside the mixer.

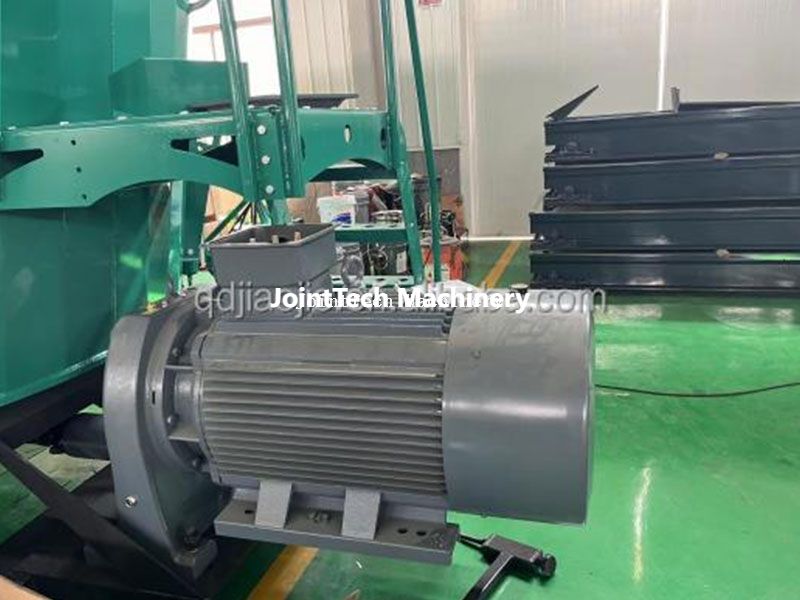

Motor
Gear reducer
Weighing Sensor
Weight Display

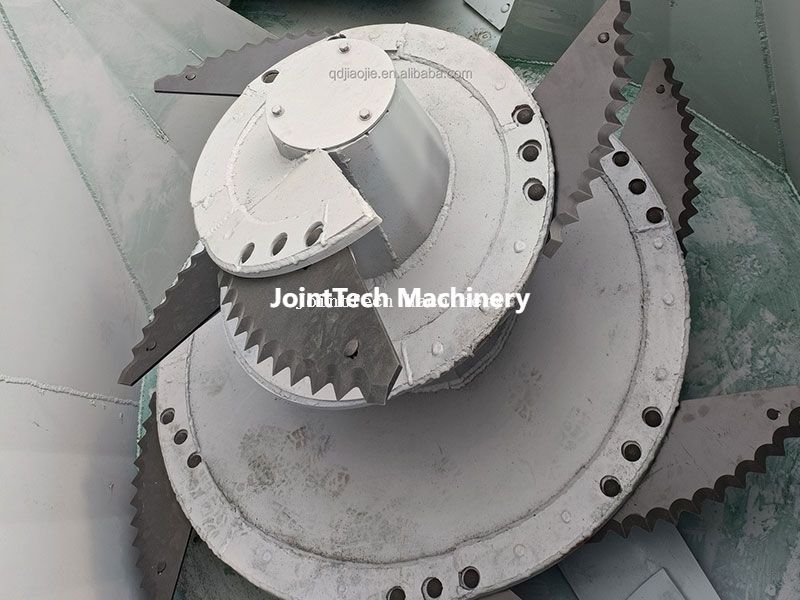

Auger
Cutting Blade
Tips：
Adding Feed order:
(1) Basic principles: according to the formula to follow the first dry after the wet, the first fine after the rough, the principle of light and heavy;
(2) Add order:
A. long grass (Leymus chinensis, wild hay, alfalfa, oat grass)
B. concentrate (raw grain, concentrated material, etc.)
C. Accessories (apple meal, cottonseed, wet beer distillers, etc.)
D. silage
E. Water or molasses
(3)In the mixing process should be noted that the charge can not be too full, leaving a certain amount of mixing cycle space.
Efficient mixing must be given to the chassis at least 20% free space for the feed cycle of mixing. To avoid the phenomenon of "arch bridge", that is, the feed is not recycled mixing, this will increase the load of the auger, affecting the mixing effect.

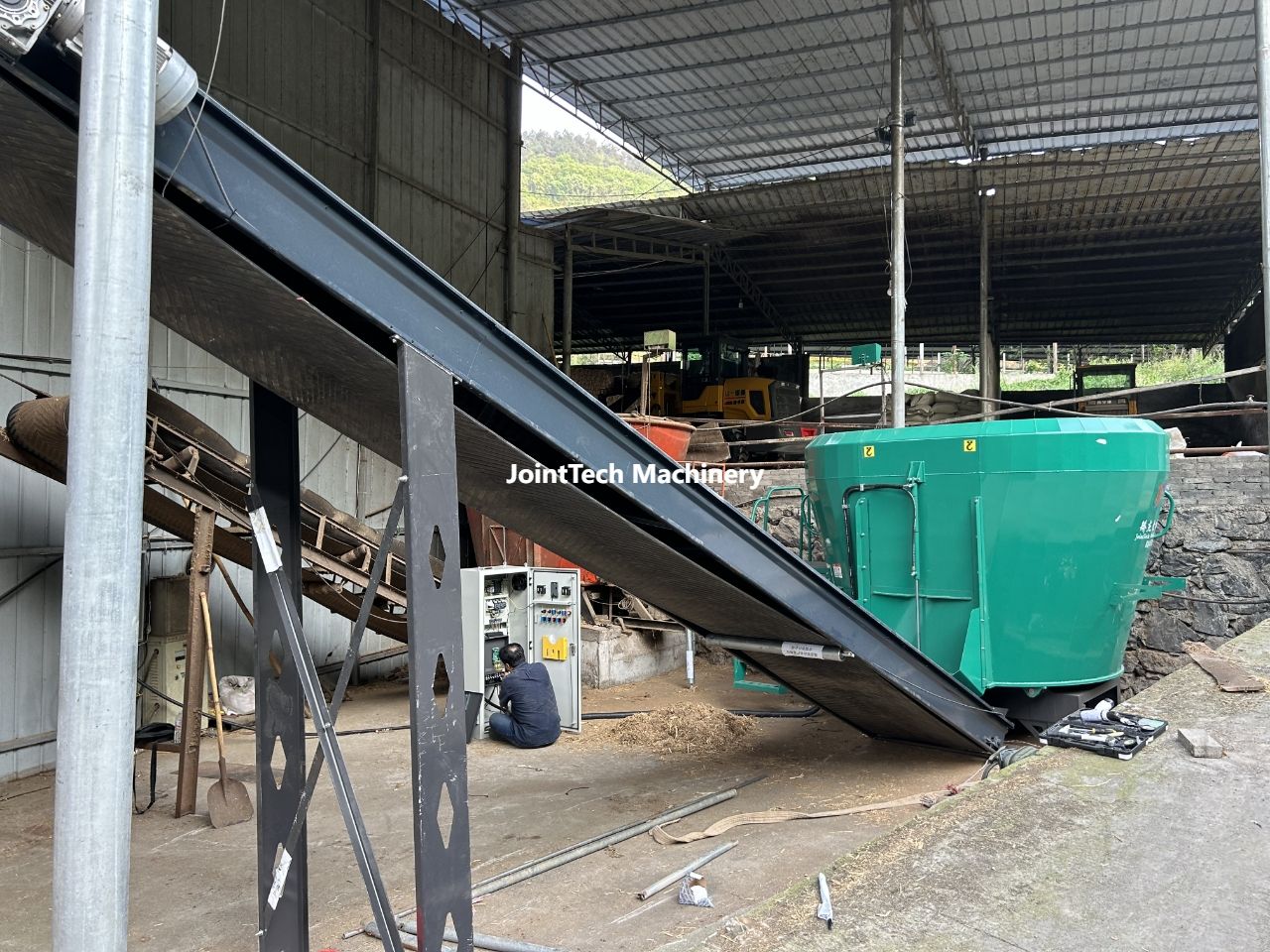

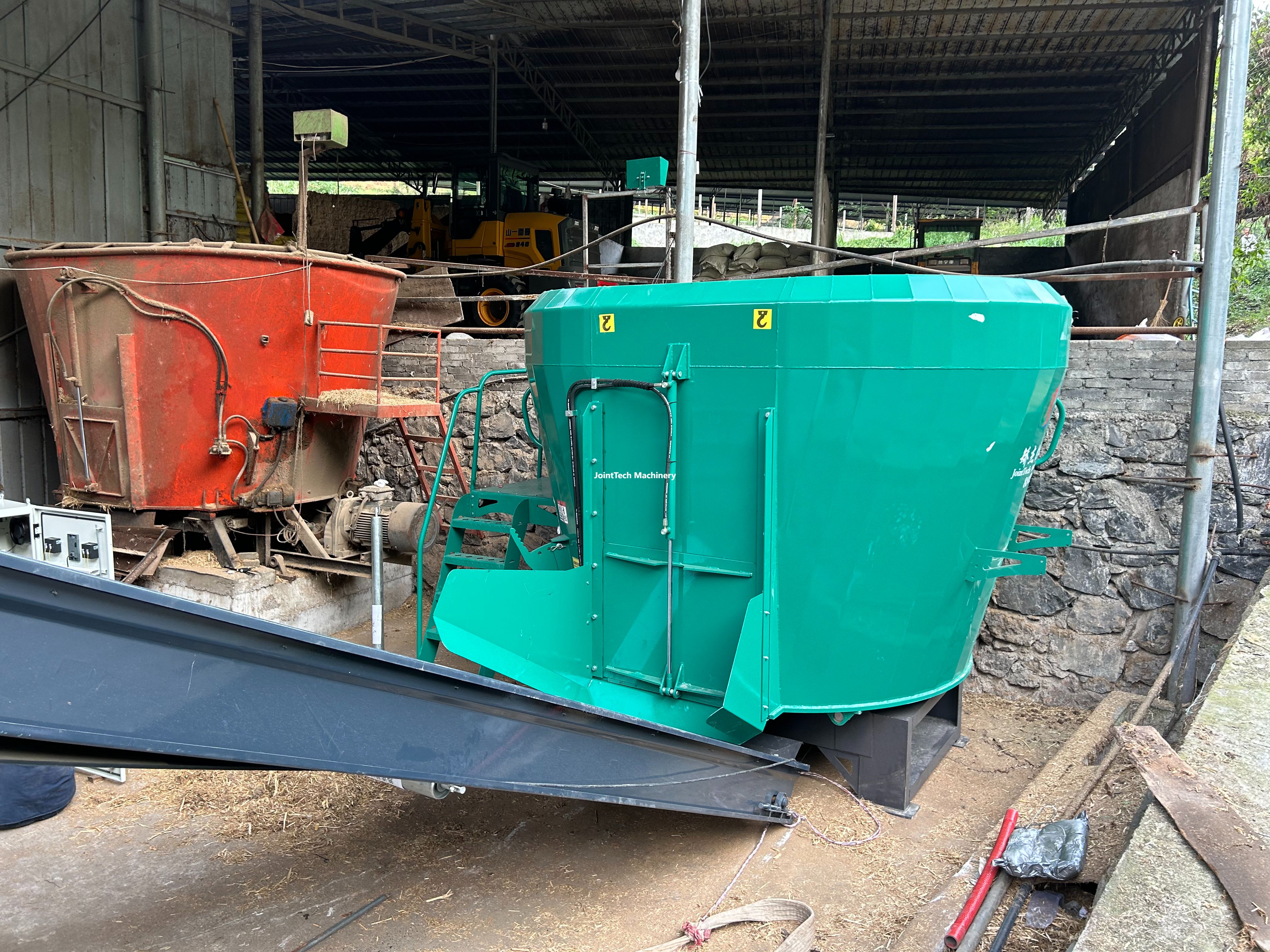

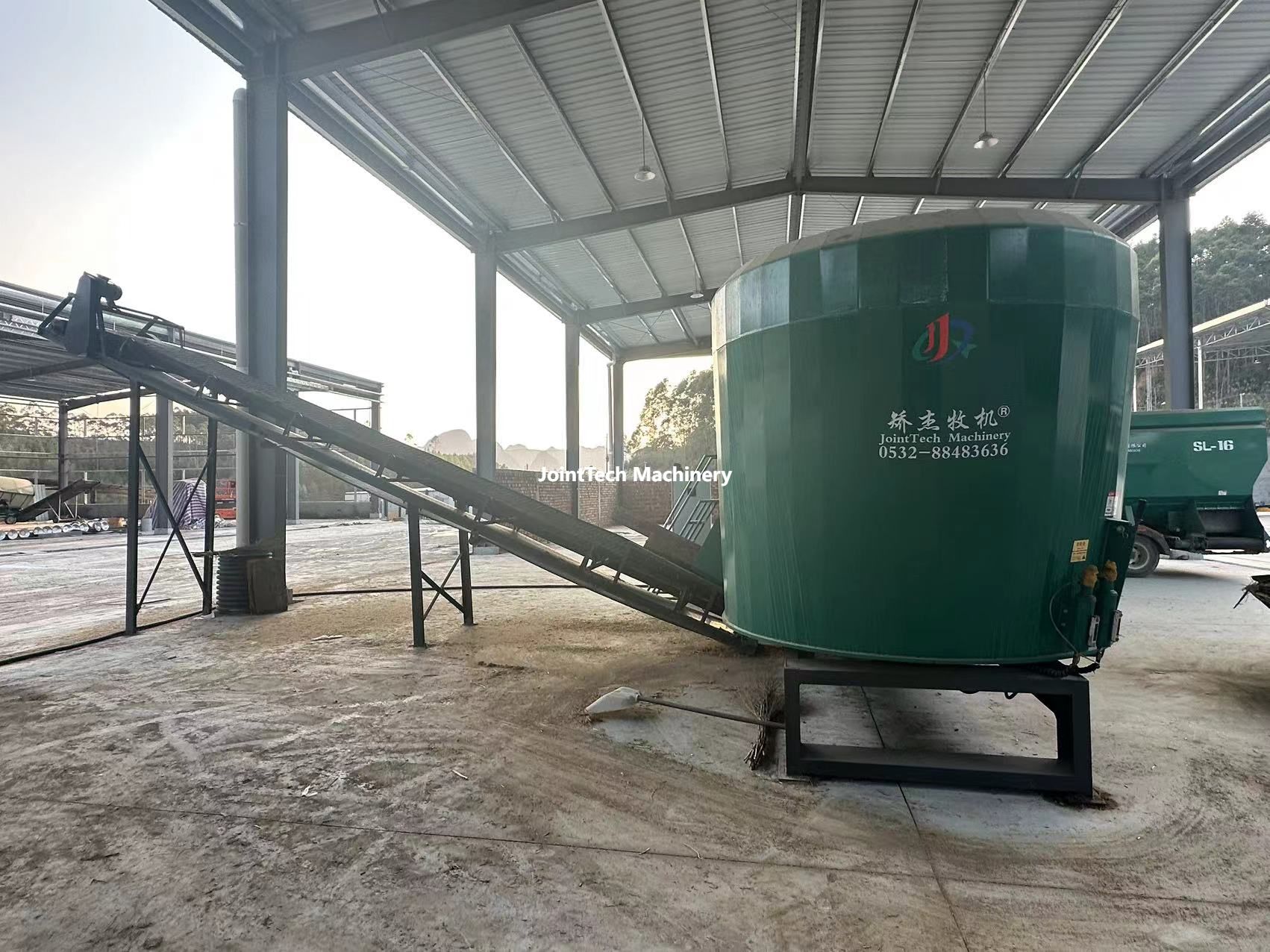

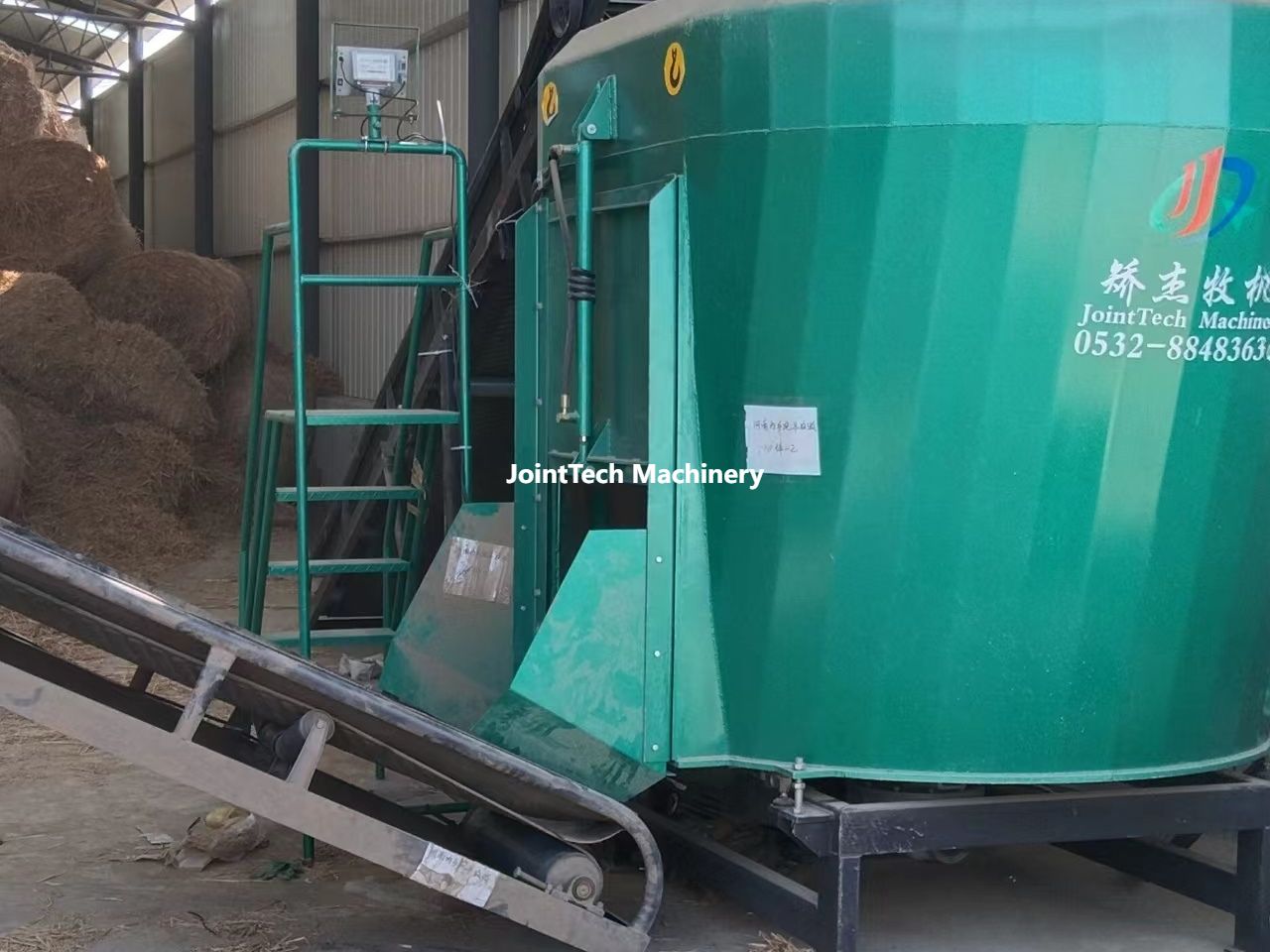

Use of Single Vertical Auger Stationary TMR Mixer
