Self Propelled TMR Mixer With Feeding Belt

Name: Self Propelled TMR Mixer With Feeding Belt
Brand: JOINTTECH
Rating: 5.0 (72 reviews)

JointTech self-propelled mixers have been developed to provide dairy cow beef cattle sheep goat donkey horse farms with an all-in-one solution for weighing, loading, mixing, and delivering feed. With a vertical mixer, a single operator can face and load ingredients, mix a full TMR, and feed the ration, save labor a lot.

Model:
MITMR-04B
Brand:
JOINTTECH
Code:
MITMR-04B

Availability:

Quantity:



Inquire Add to Basket

TMR Mixer 4 cubic metre Self-Propelled TMR Mixer Drivable TMR mixer TMR mixer with feeding belt Movable feed mixer Mobile Feed Mixer

Product Description

Company Profile

FAQ

The JointTech self-propelled TMR mixer is designed to provide an integrated solution for weighing, loading, mixing, and delivering feed for farms with cattle, beef cattle, sheep, goats, donkeys, and horses. With this mixer, a single worker can independently complete the entire process of loading, mixing, and feeding, significantly saving labor.

This TMR self-propelled mixer with throwing belt is suitable for farms with a feeding trough height of more than 50 cm.

Product Specifications

No	Item	Data
1	Power	25 HP
2	Bucket capacity	4 M3
3	Loading weigh	1.4 Ton
4	Auger Qty'	1 Set
5	Cutting Blade Qty'	7 Sets
6	Mix Time	20 Minutes
7	Discharge Type	Side Discharge
8	LWH(mm)	370019002150

Product Configuration

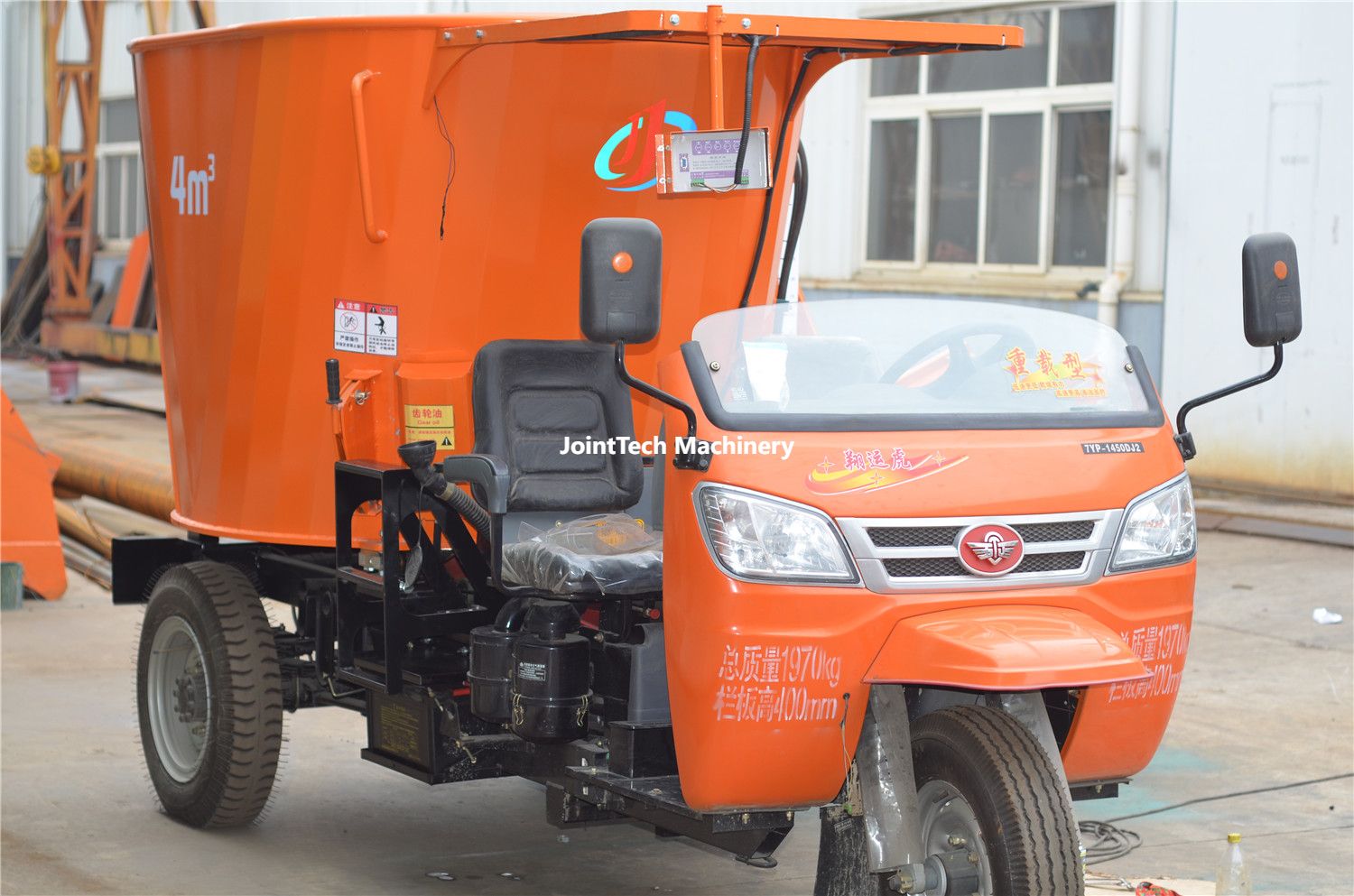

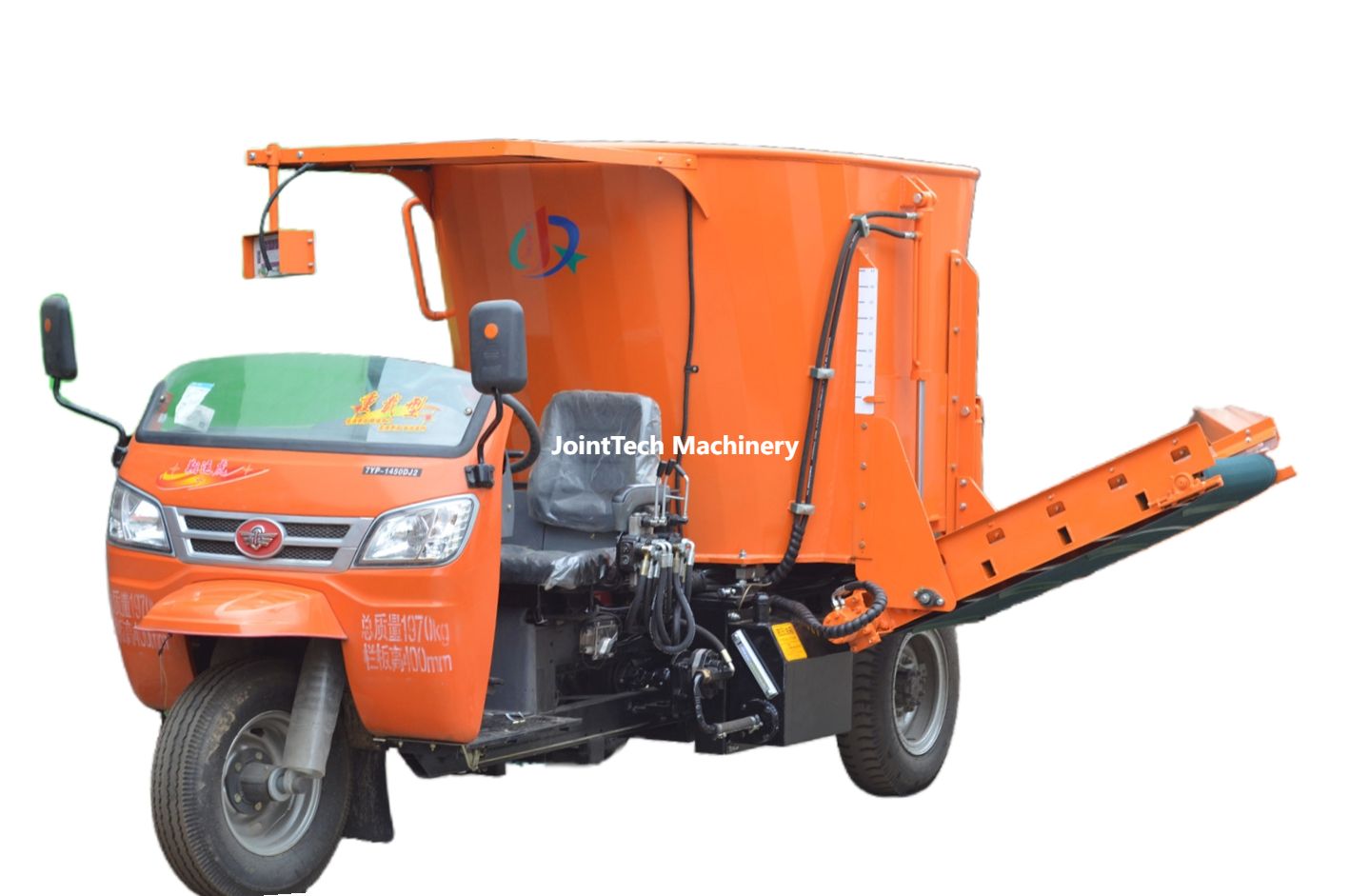

Self Propelled

A drivable and movable feed mixer.

Fully Welded Mix Boby: Q355B

Floor Steel Thickness: 12 mm

Side Steel Thickness: 6 mm

Weighing Sensors

4-point Sensitive Weighing Sensor

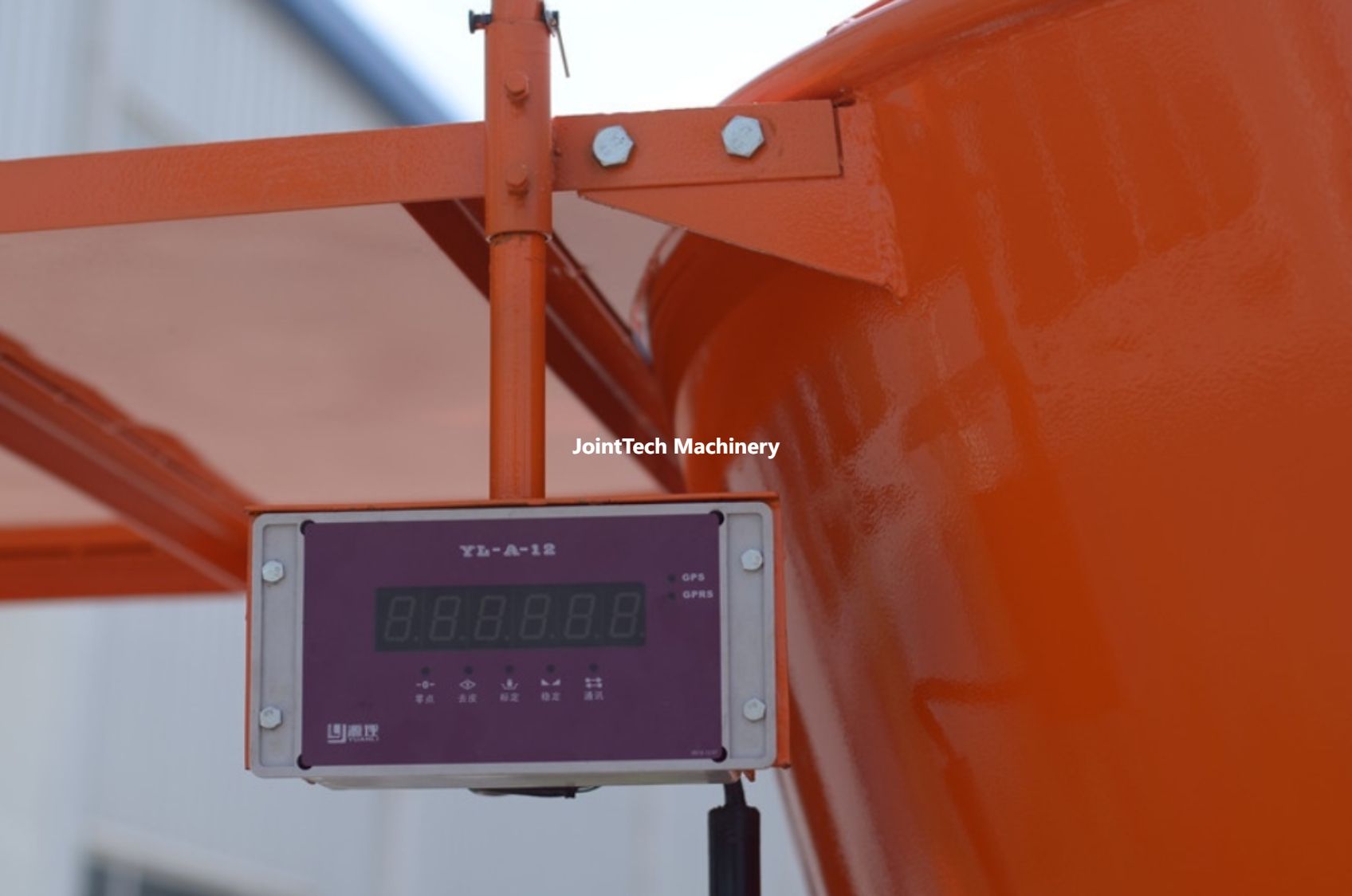

Weight Display Screen

The weighing display clearly shows the load weight.

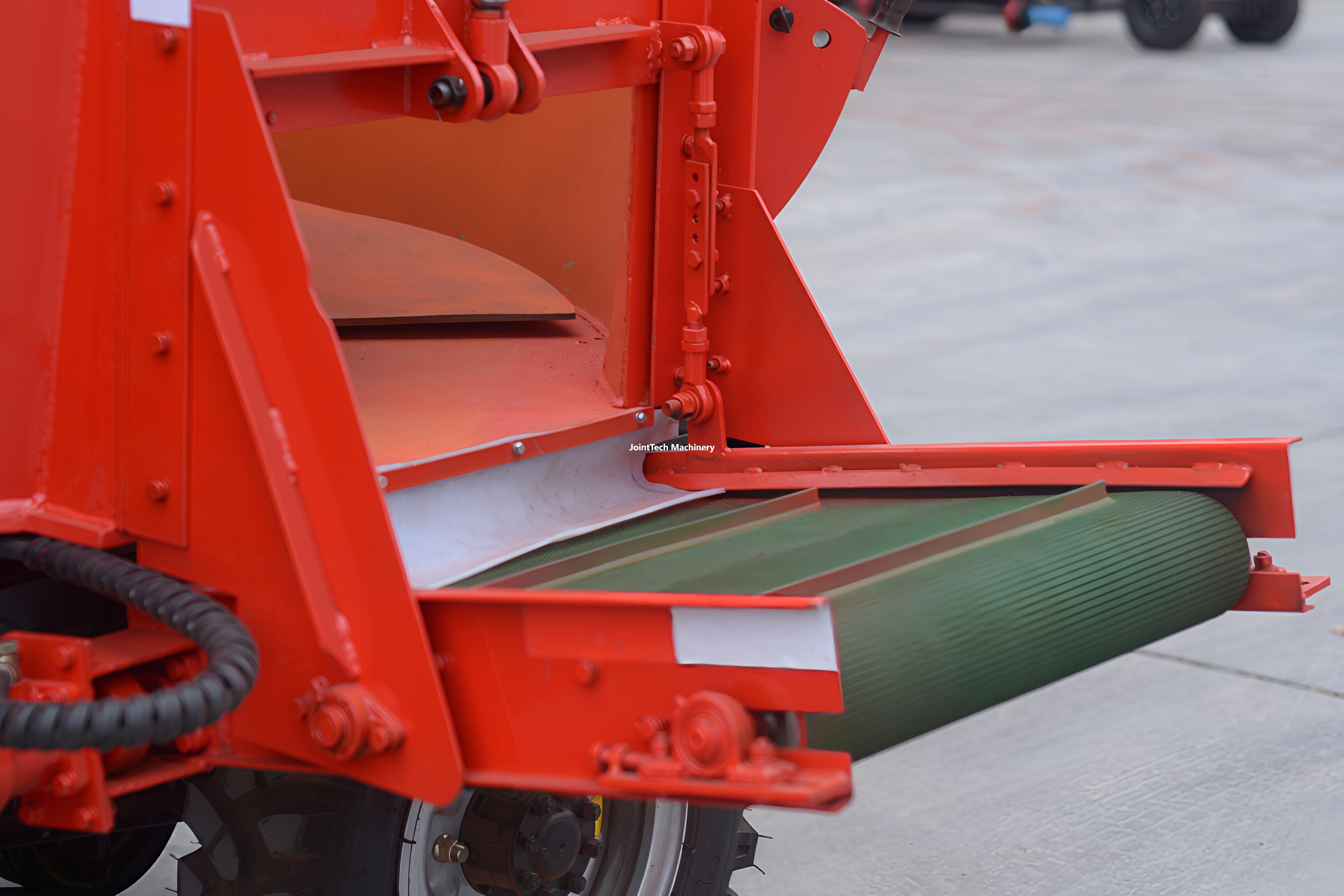

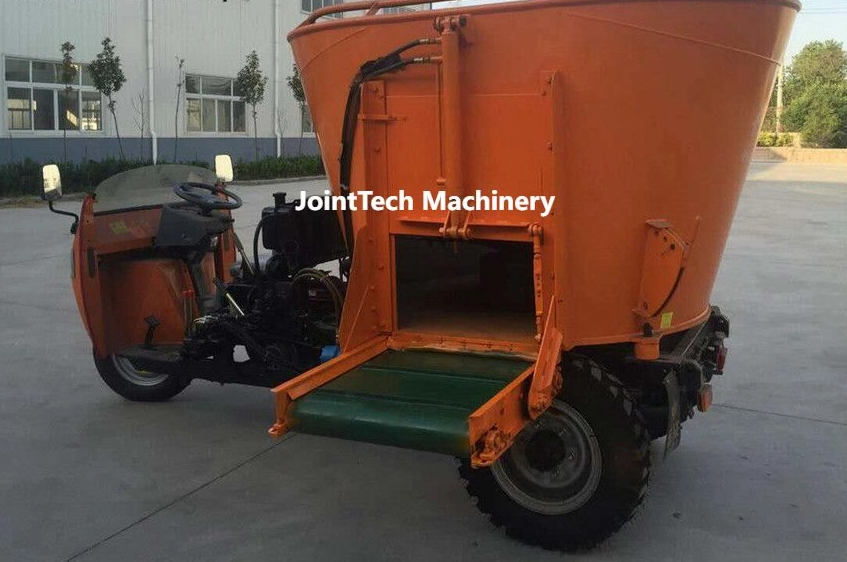

Rubber Conveyor Belt

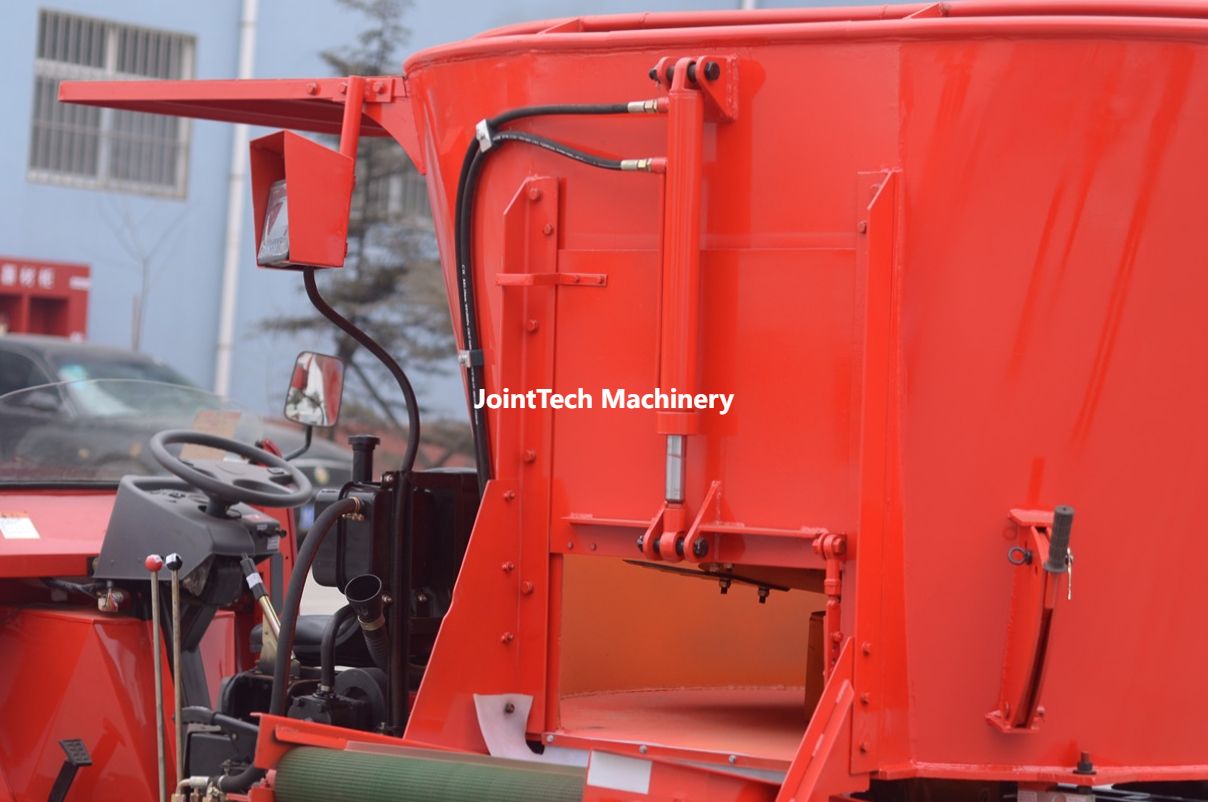

Hydraulic Rapid Discharge Door

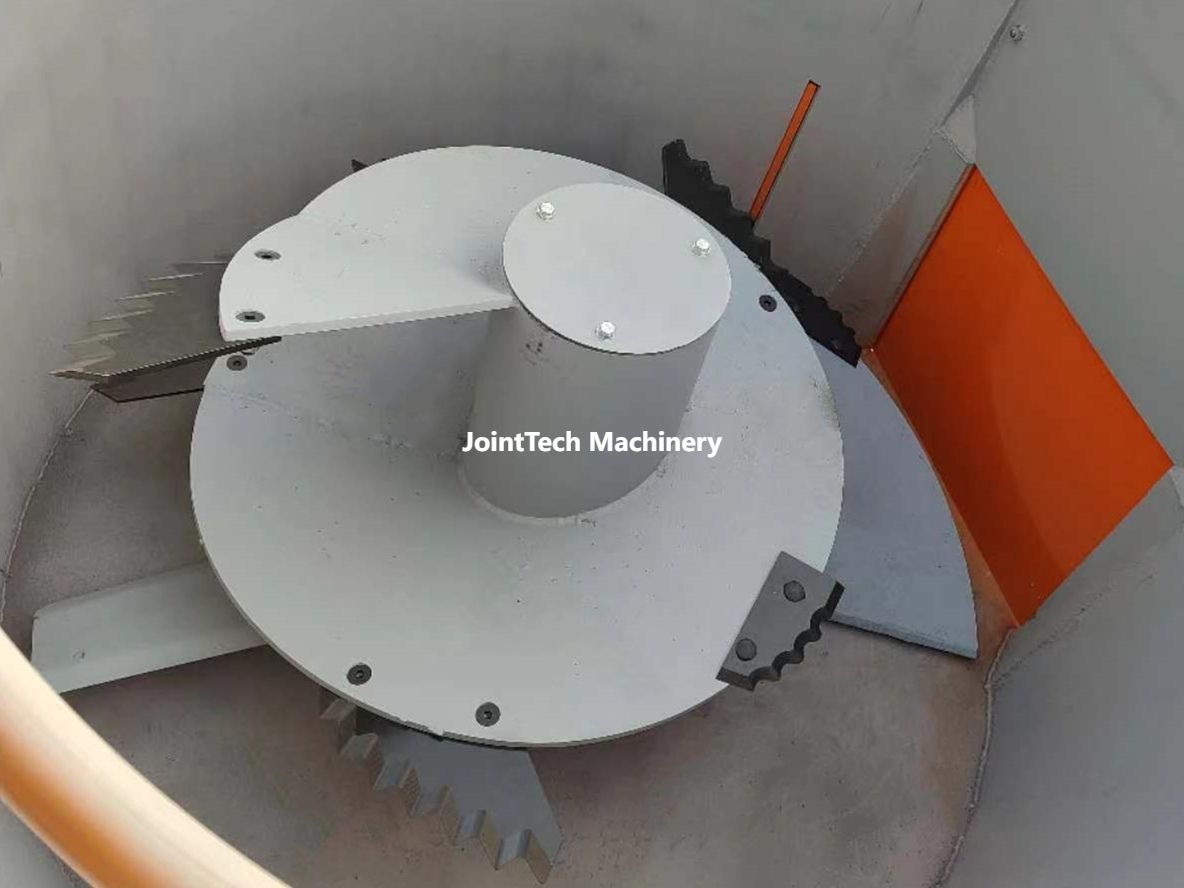

Mix Auger

Auger Flighting Thickness: 12 mm

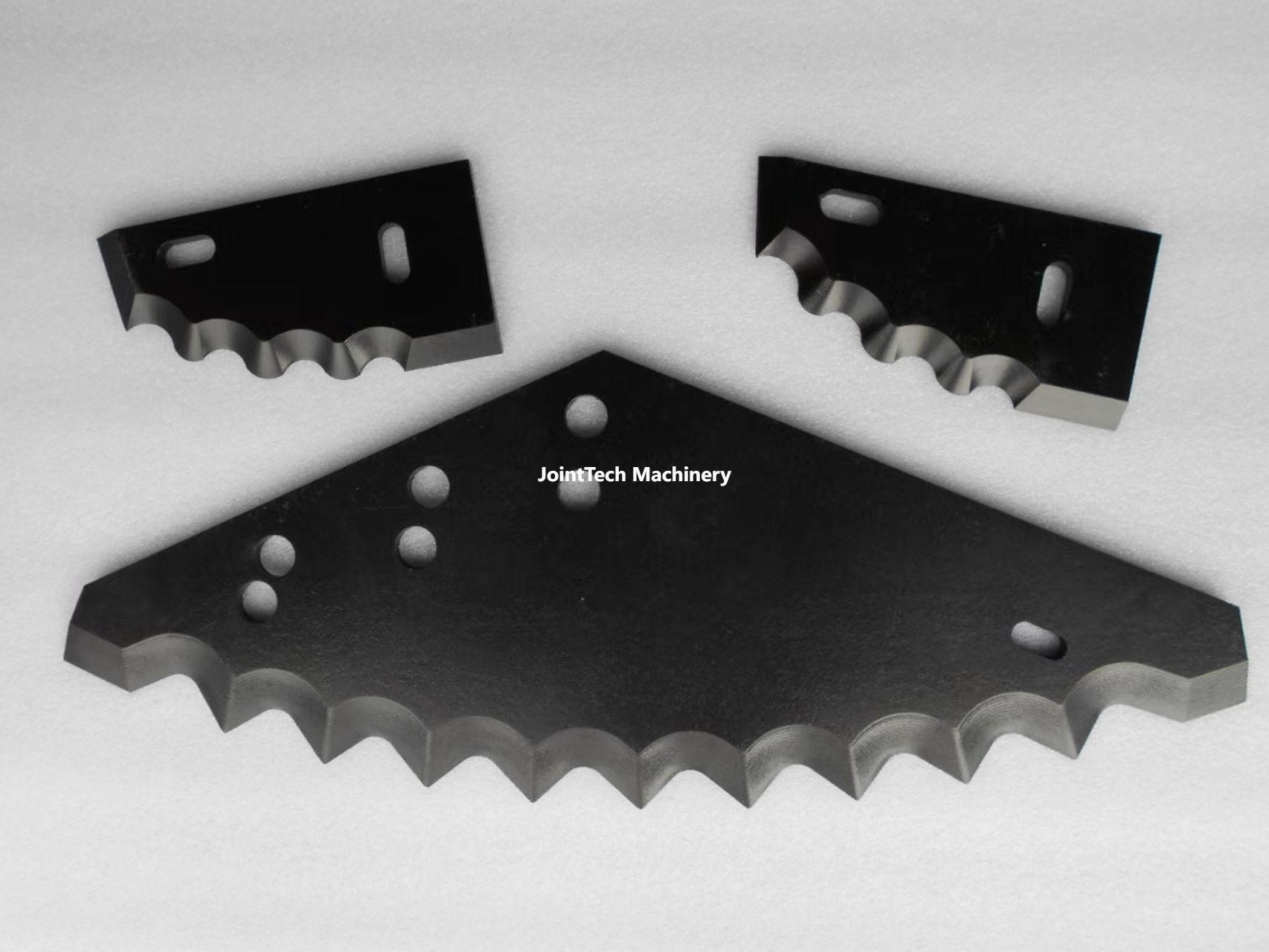

Cutting Blade

Heavy Duty Carbide Coated Knives

Tire

The car body is equipped with three thickened non-slip tires

Key Start

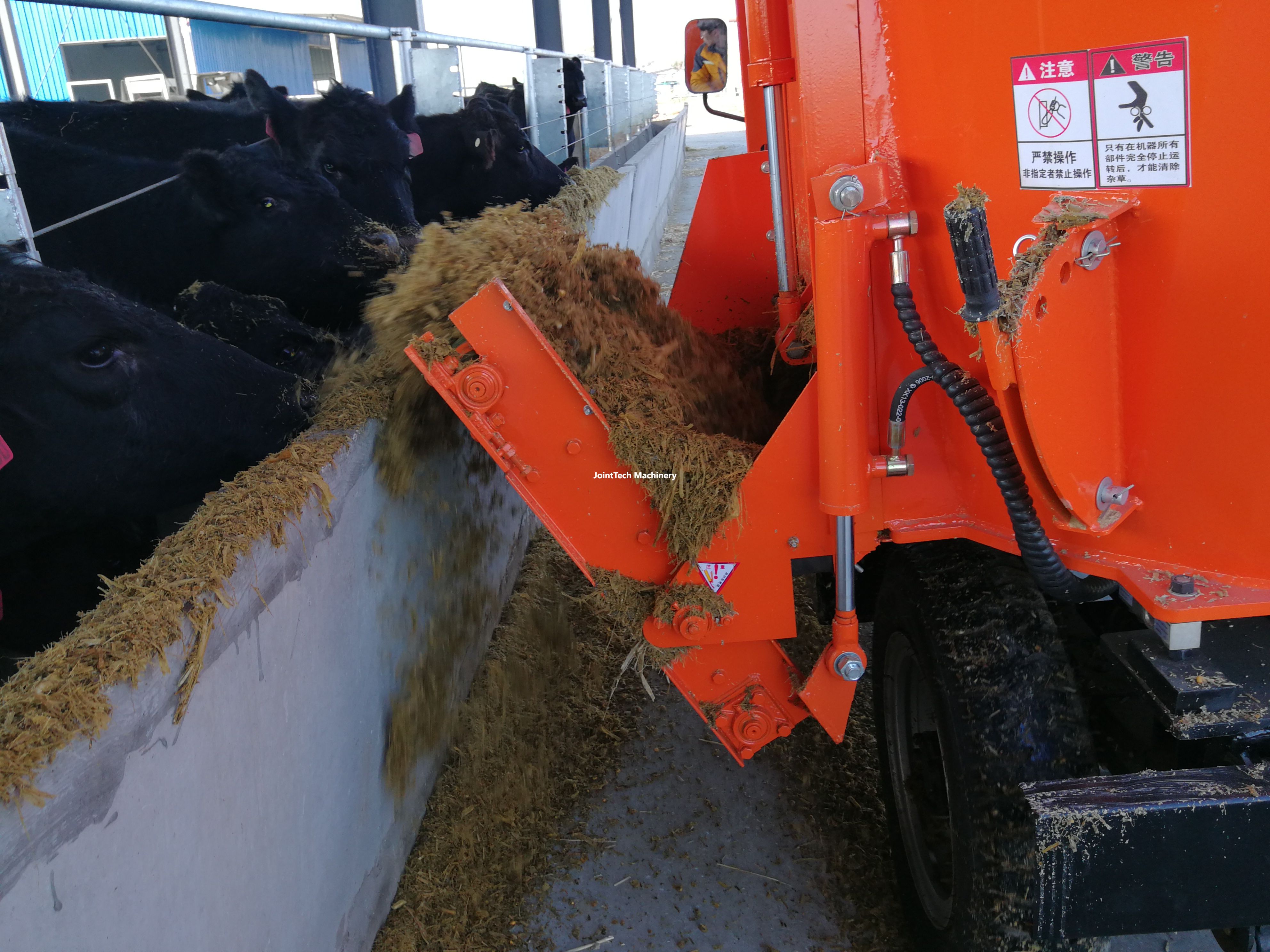

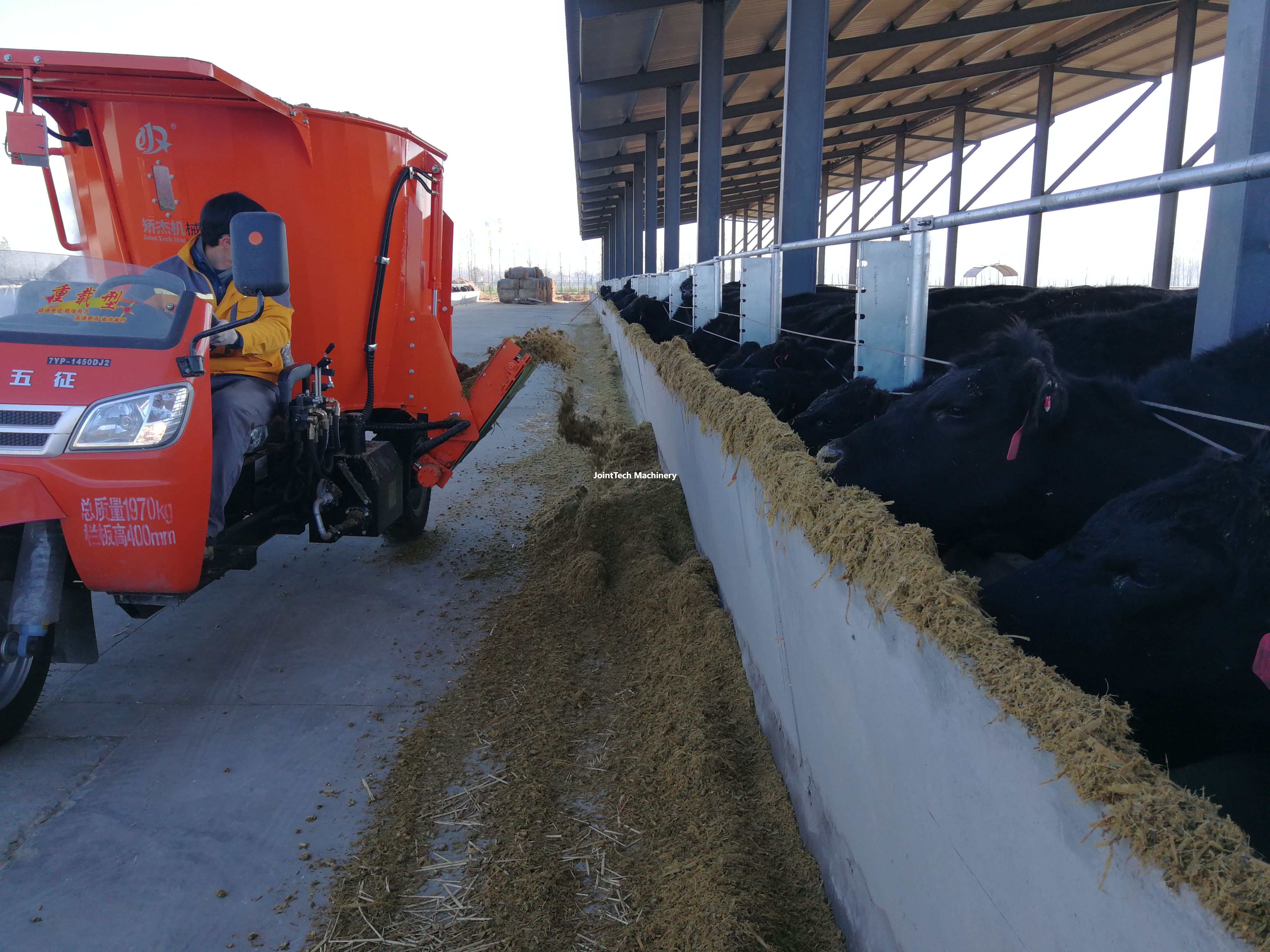

Customer Use

公司名片

product-aad30

公司名片2 product-aad33

Payment

Q: What are the advantages of this feed mixer with a discharge belt?

This self-propelled feed mixer is equipped with a precise weighing system, capable of performing a series of tasks including weighing, mixing and feeding. The adjustable angle of the discharge belt is suitable for farms with feeding troughs higher than 50 cm.

Q: What is the power system of this feed mixer?

This feed mixer is equipped with a 25 horsepower diesel engine and a three-wheeled chassis. The vehicle is compact and flexible, with a small turning radius, making it easy to enter and exit the barn and cowshed.

Q: Are you trading company or manufacturer?

we are the leading livestock farm equipment manufacturer in China since 2016.

Q: What about warranty?

We will send the wearing parts of each machine when delivery. Warranty is 1 Year, during this period, we will offer free spare parts if they are damaged. After warranty, we send the parts in a reasonable price.

Q: Do you accept OEM, ODM order?

Absolutely. Any customized order is warmly welcomed.
