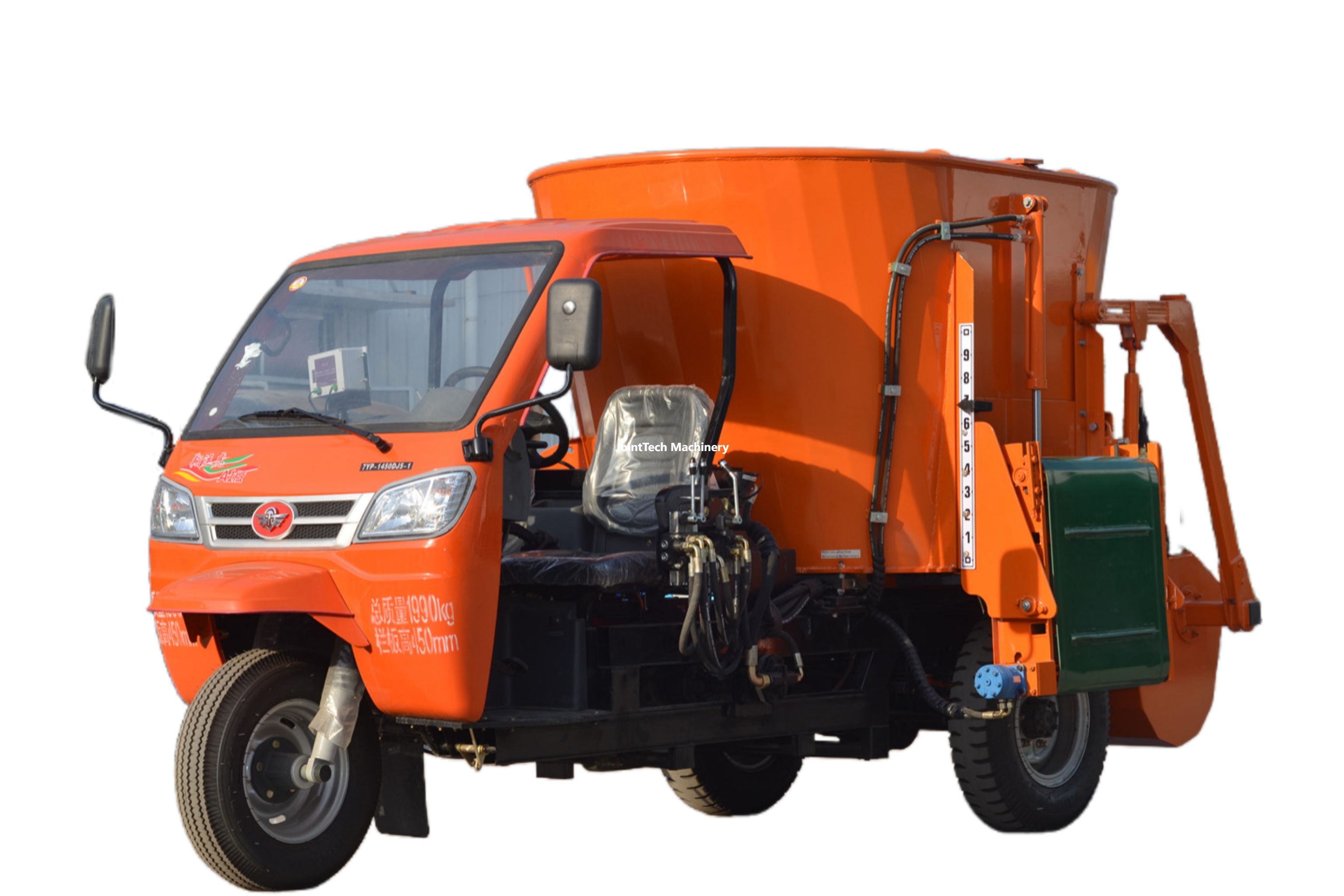

Self Propelled Multipurpose TMR Mixer 4cbm

Name: Self Propelled Multipurpose TMR Mixer 4cbm
Brand: JOINTTECH
Rating: 5.0 (63 reviews)

Total Mixed Rations (TMR) feed blenders are suitable for use on cow, cow, sheep and goat farms. The machine can be used for shredding and mixing all kinds of grass, straw and silage crops and other feeds. Self Propelled Multipurpose TMR Mixer can reduce the amount of work to feed the farm and save labor costs.

Model:
MITMR-04C
Brand:
JOINTTECH
Code:
MITMR-04C

Availability:

Quantity:



Inquire Add to Basket

commercial self-propelled feed mixer portable self-propelled feed mixer automatic feeding mixer TMR Mixer 4 cubic metre diesel self-propelled feed mixer

Product Description

Company Profile

FAQ

Self Propelled Multipurpose TMR Mixer Description

The development of the JointTech self-propelled mixer aims to provide a comprehensive solution for farms with dairy cows, beef cattle, sheep, goats, donkeys, and horses, integrating weighing, loading, mixing, and feeding of feed into one system. With the self-propelled mixer, a single worker can load, mix, and feed the total mixed ration, significantly saving labor.

The machine's box body and spiral auger are made of Q355 steel, which is hard, wear-resistant, and corrosion-resistant. The machine is equipped with a bucket that can replace the work of a loader to achieve the purpose of loading feed. The adjustable height discharge belt is suitable for farms where the feeding trough is higher than 50 centimeters.

Self Propelled Multipurpose TMR Mixer Specifications

No	Item	Data
1	Power	25 HP
2	Bucket capacity	4 M3
3	Loading weigh	1.4 Ton
4	Auger Qty'	1 Set
5	Cutting Blade Qty'	7 Sets
6	Mix Time	20 Minutes
7	Discharge Type	Side Discharge
8	LWH(mm)	460020002150

Self Propelled Multipurpose TMR Mixer Configuration

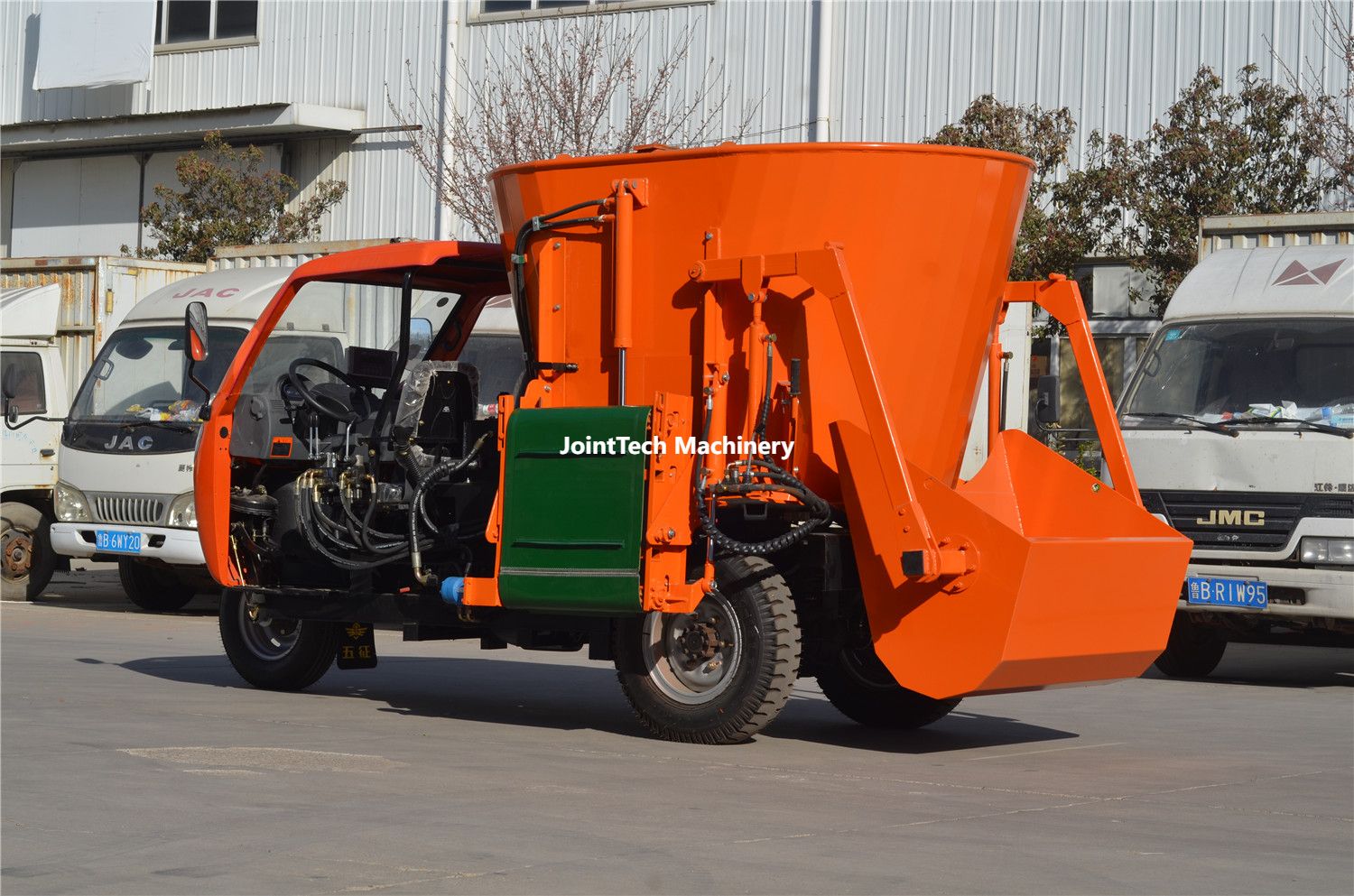

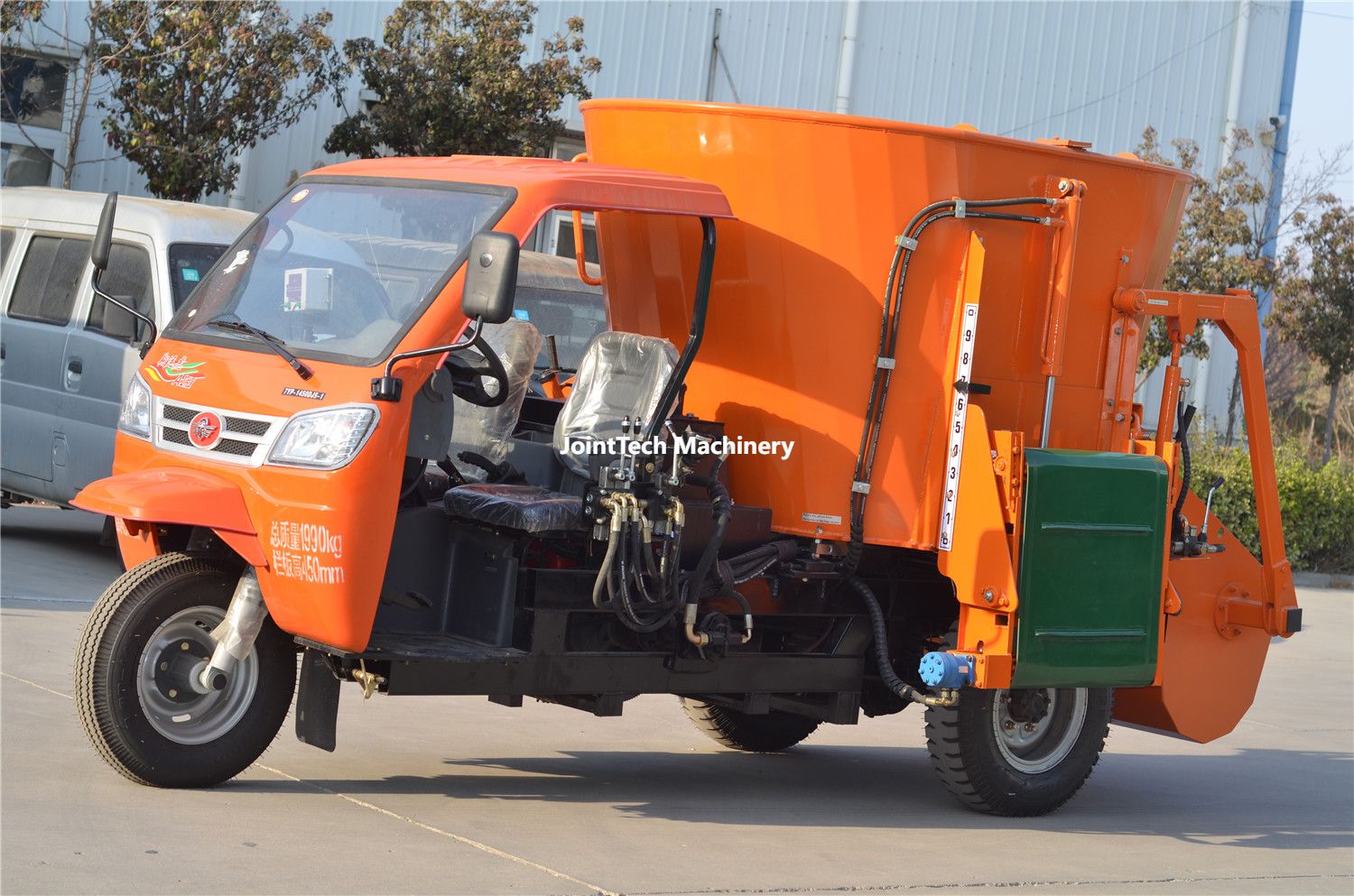

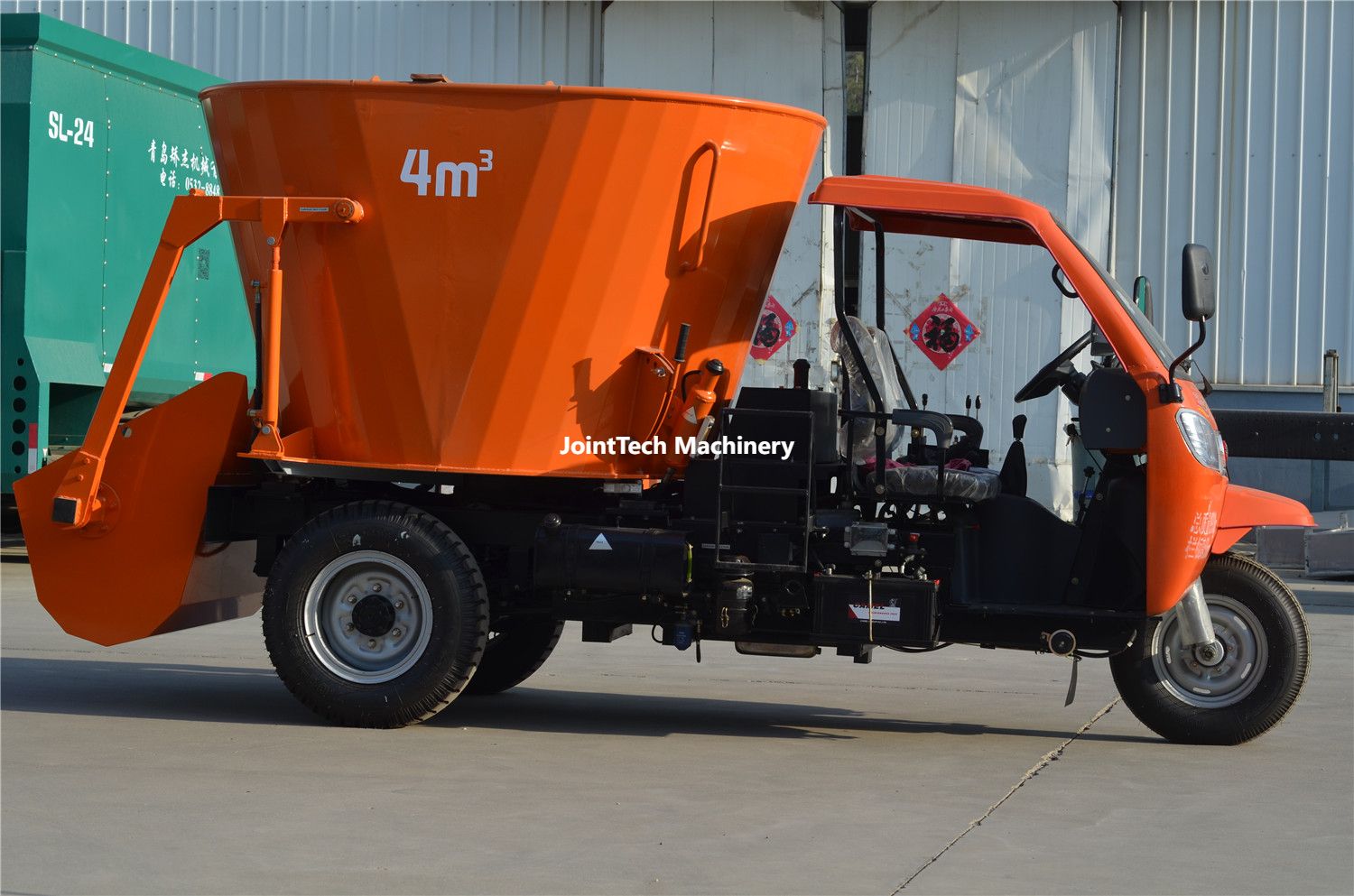

Self Propelled

A drivable and movable blender.

Fully Welded Mix Boby: Q355B

Floor Steel Thickness: 12 mm

Side Steel Thickness: 6 mm

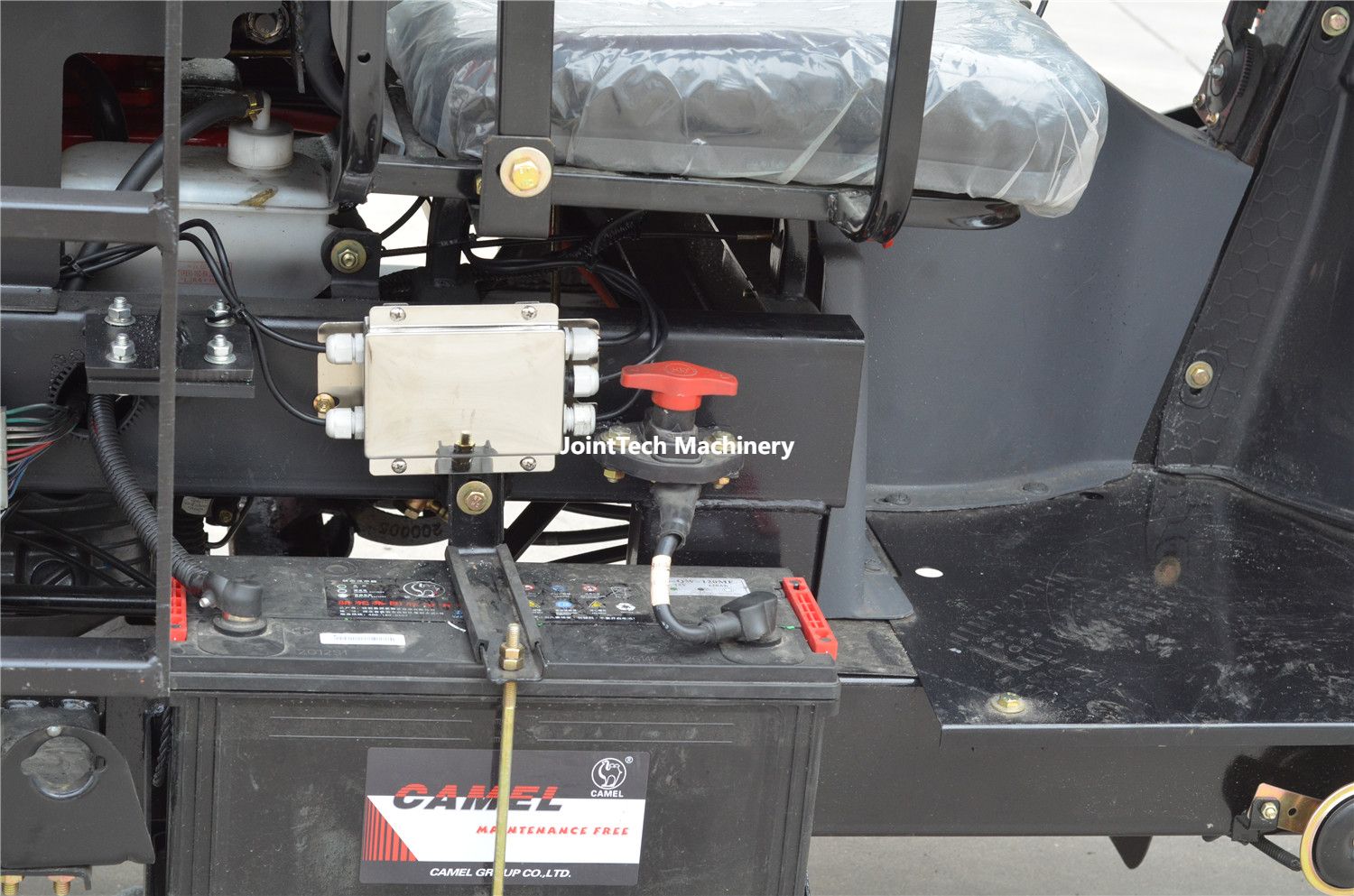

Weighing Sensors

4-point Sensitive Weighing Sensor

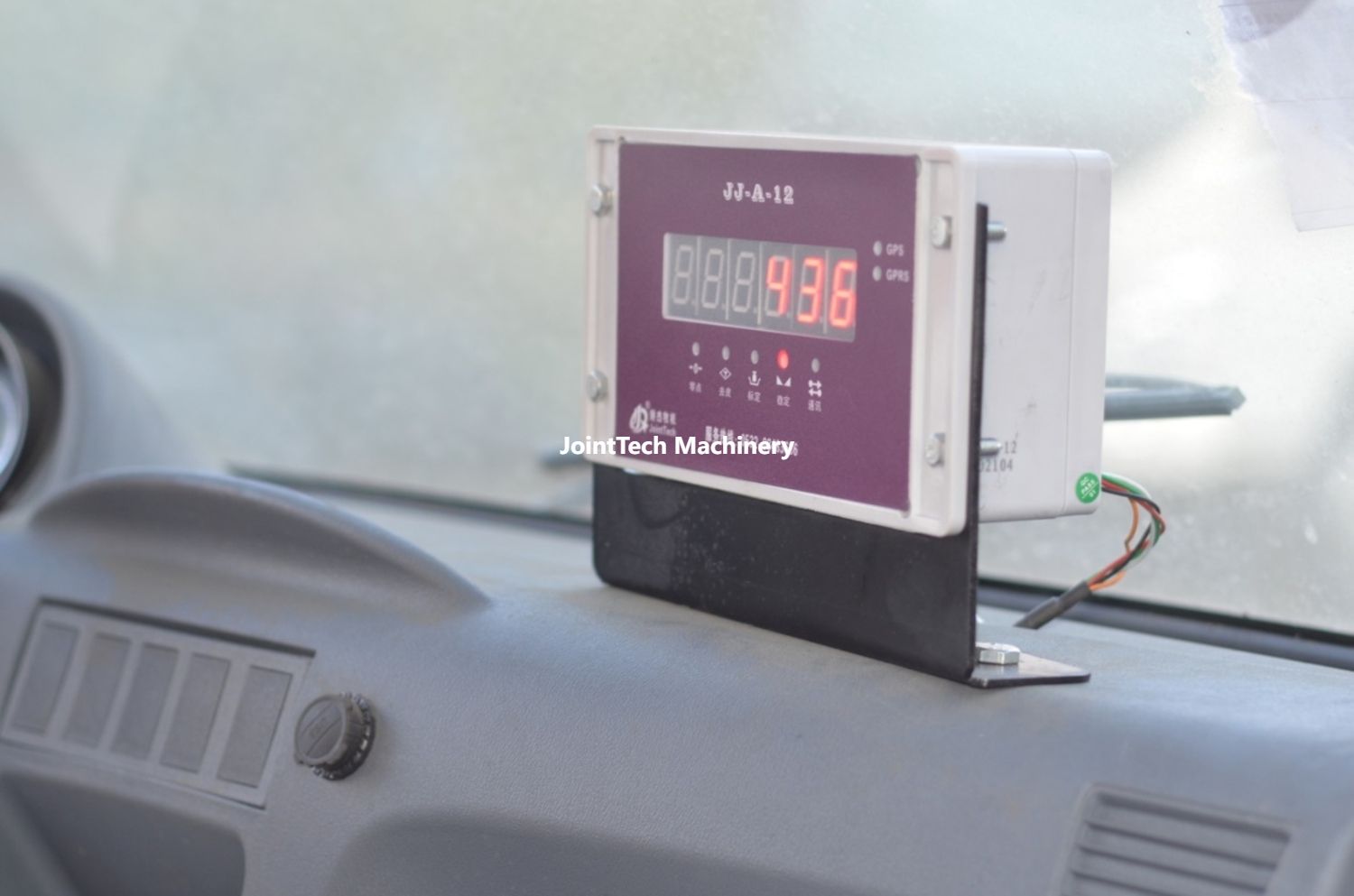

Weight Display Screen

The weight display visible in the cockpit.

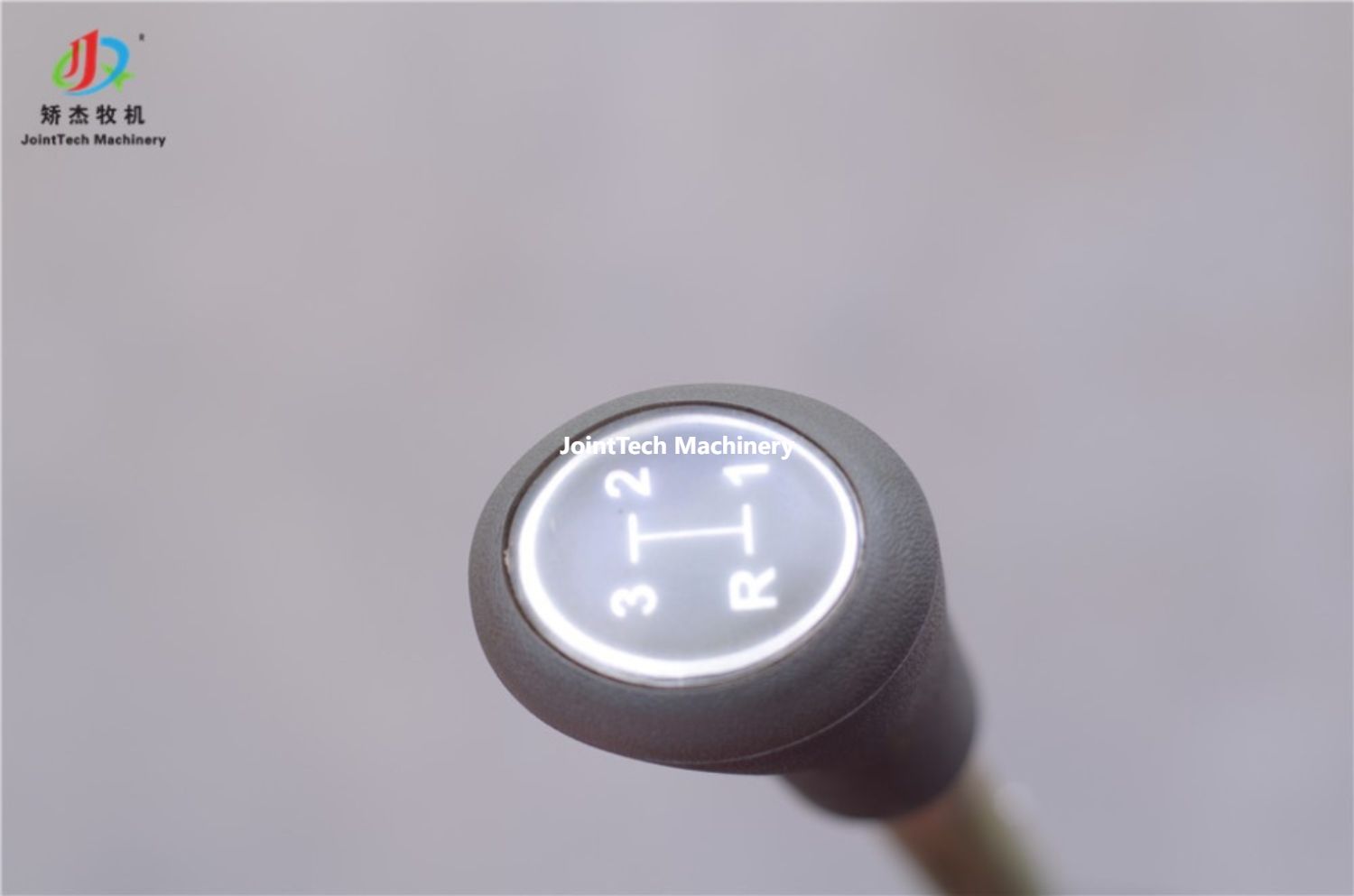

Gear

The driving gears of the self-propelled feed mixer are divided into 1, 2, 3 gears and reverse.

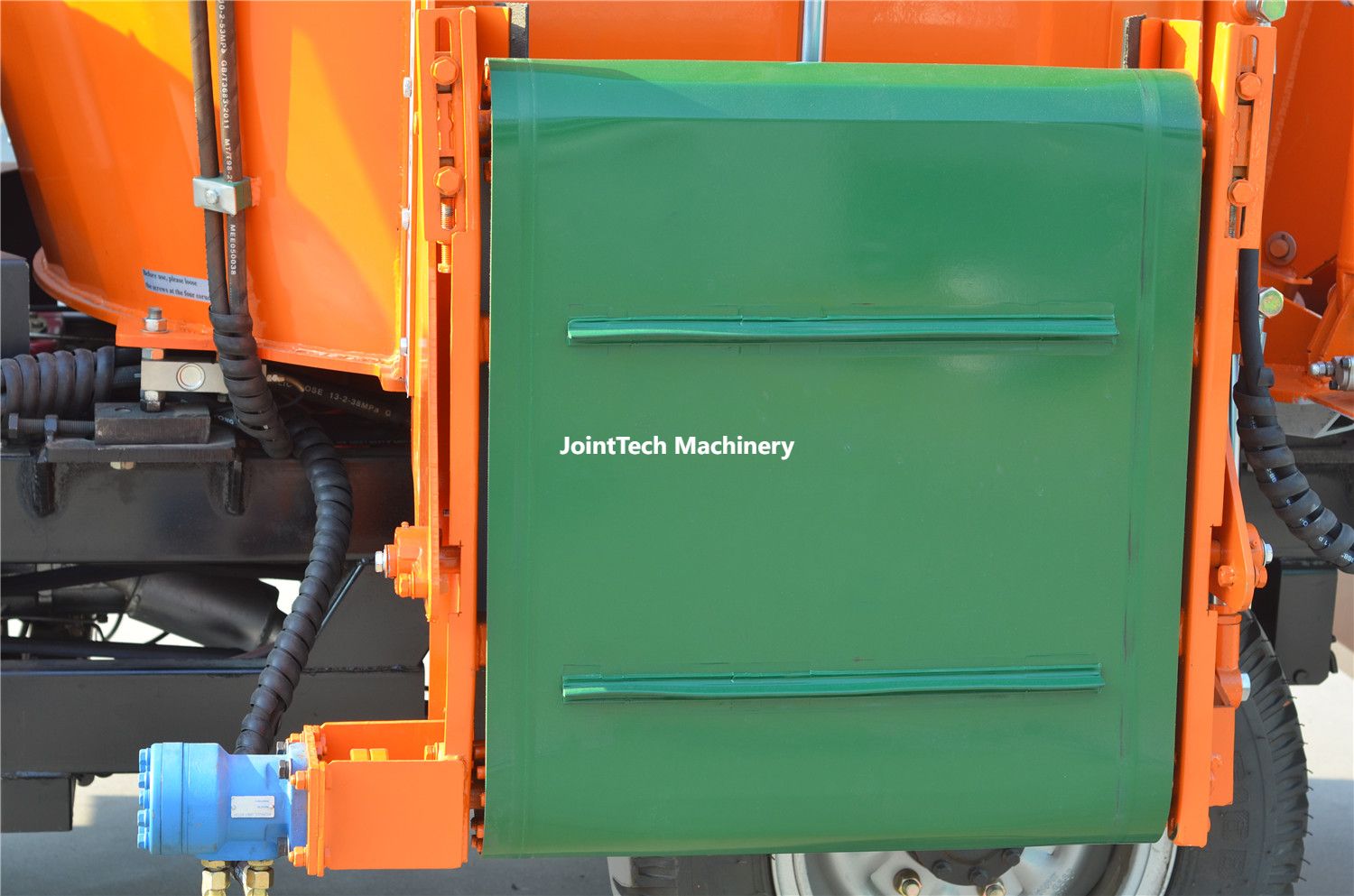

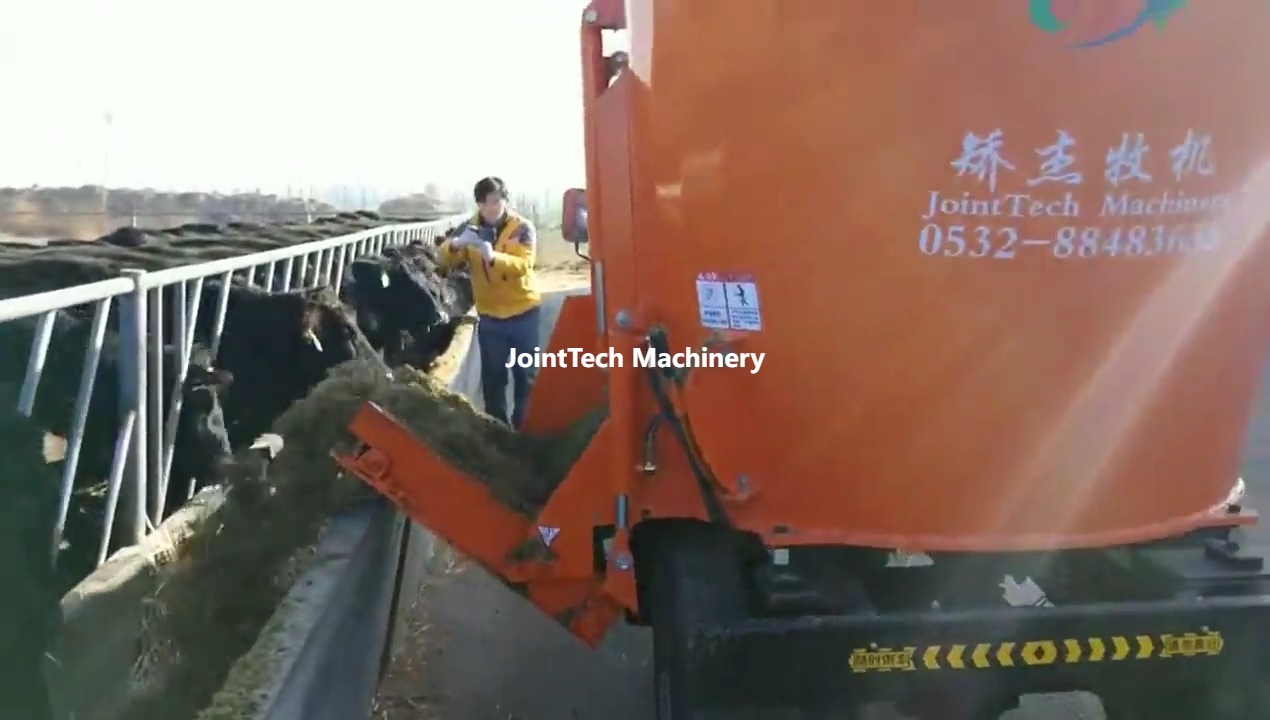

Rubber Conveyor Belt

The discharge belt can be adjusted at multiple angles and retracted when not in operation.

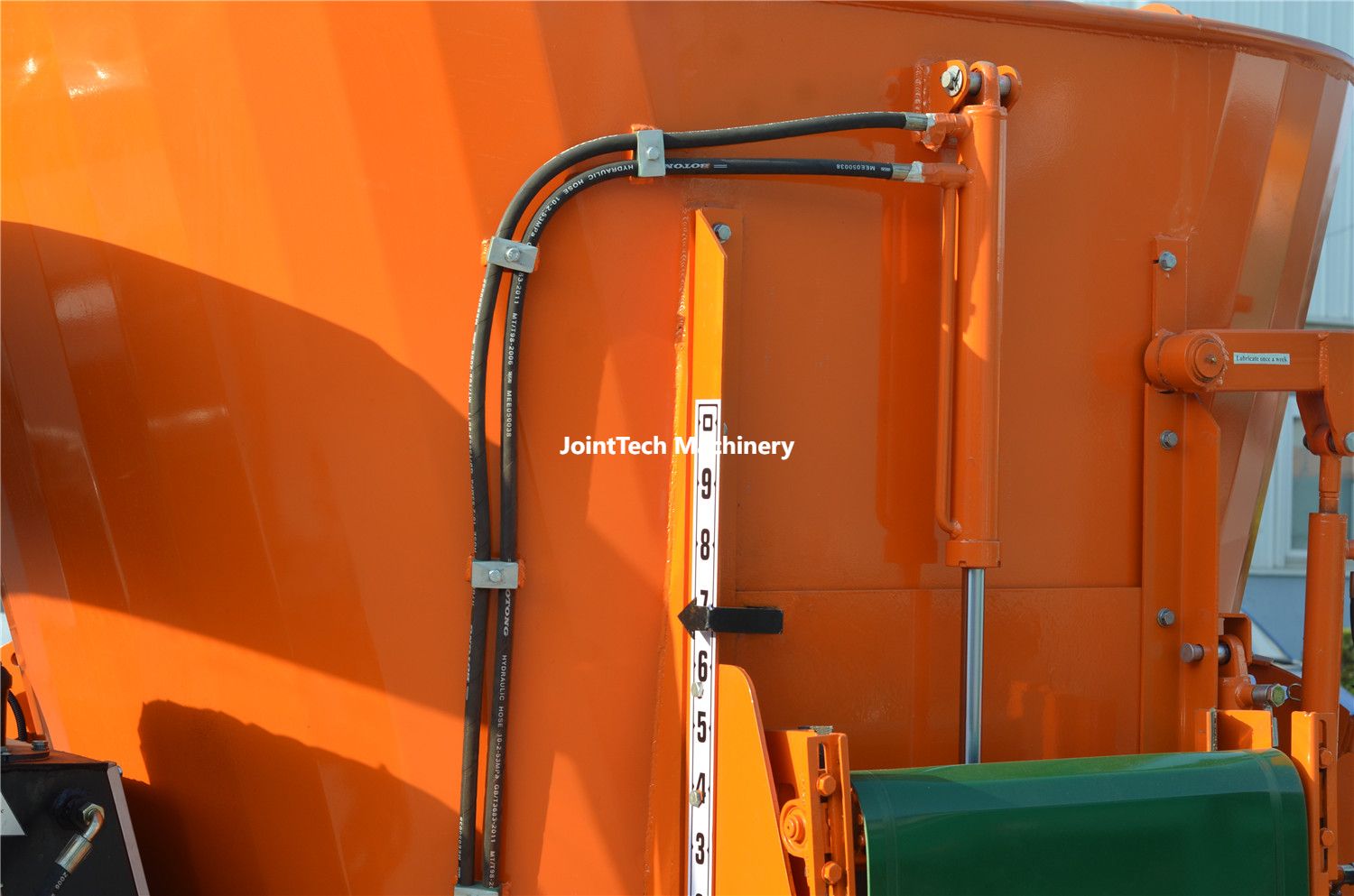

Hydraulic Rapid Discharge Door

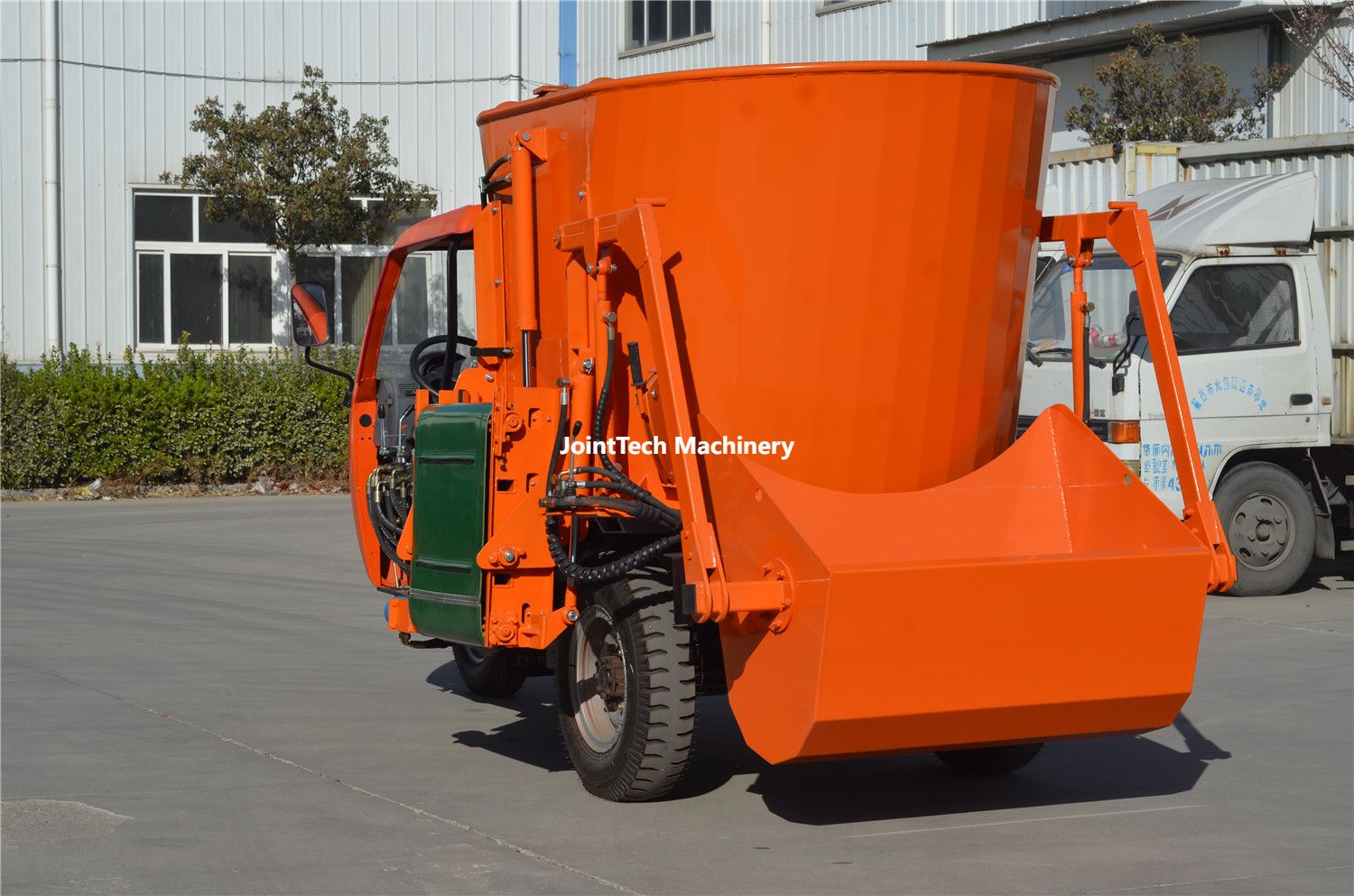

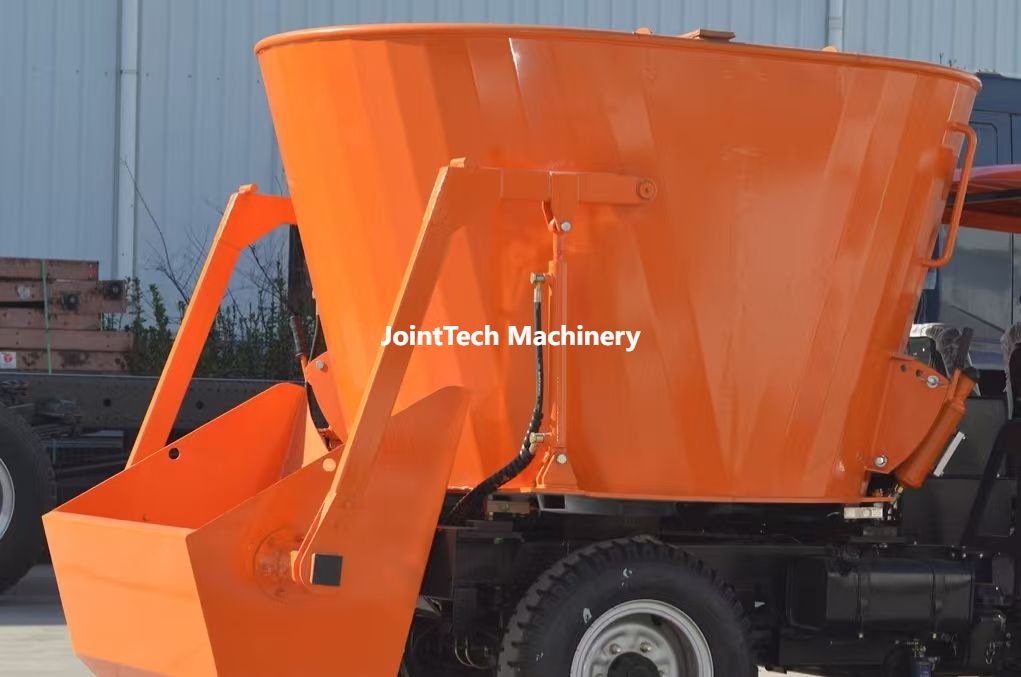

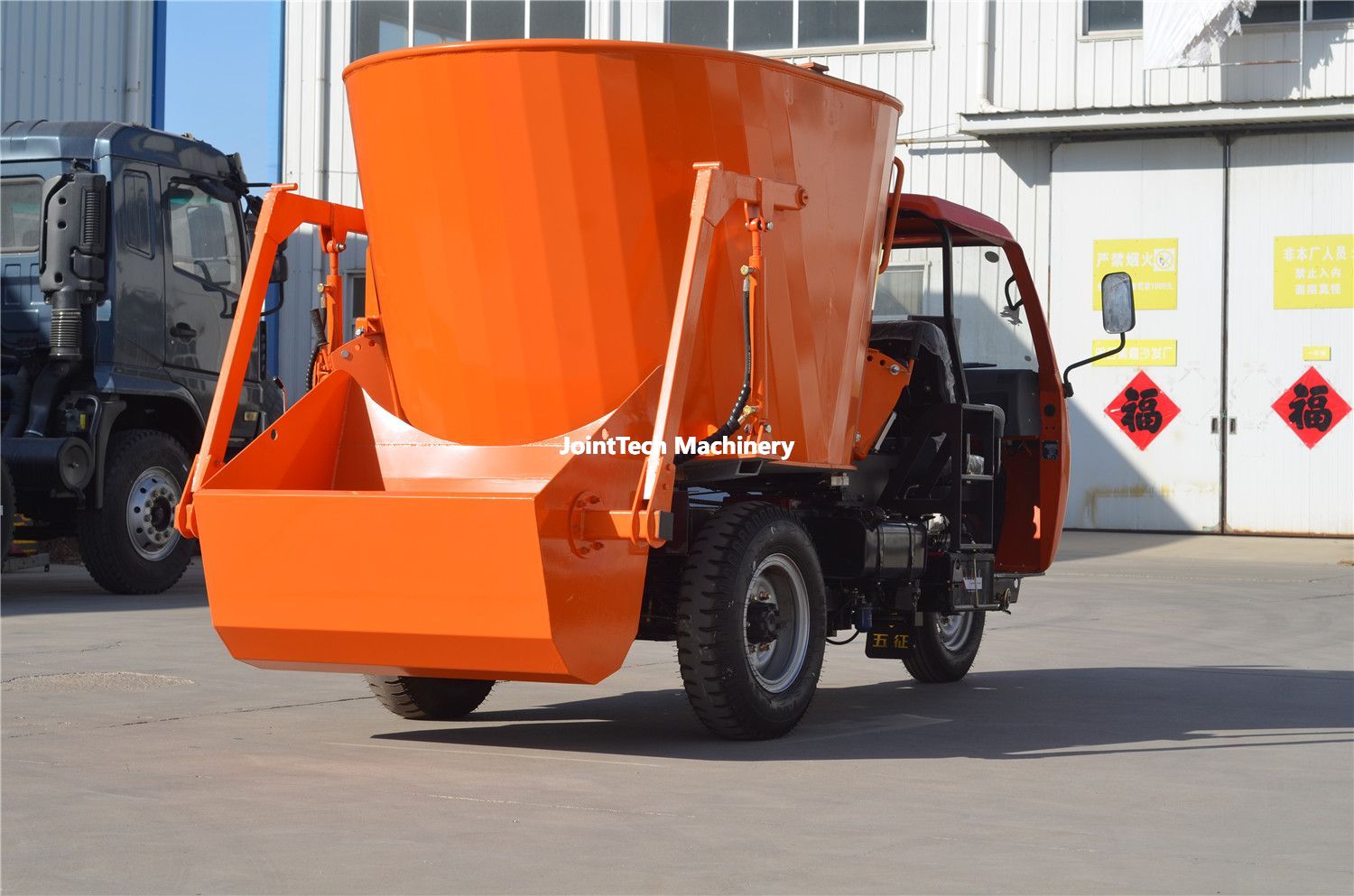

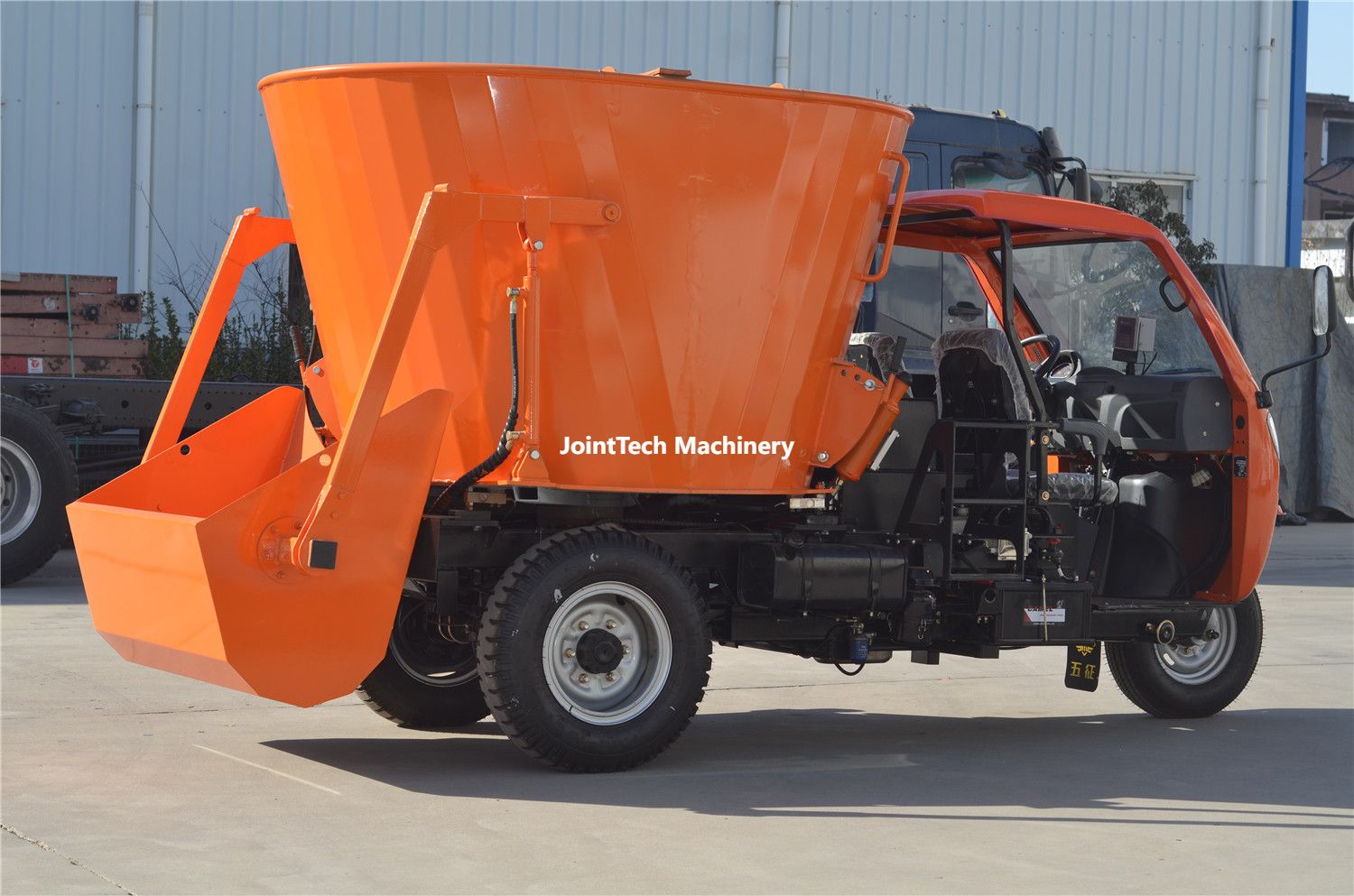

Loader Bucket

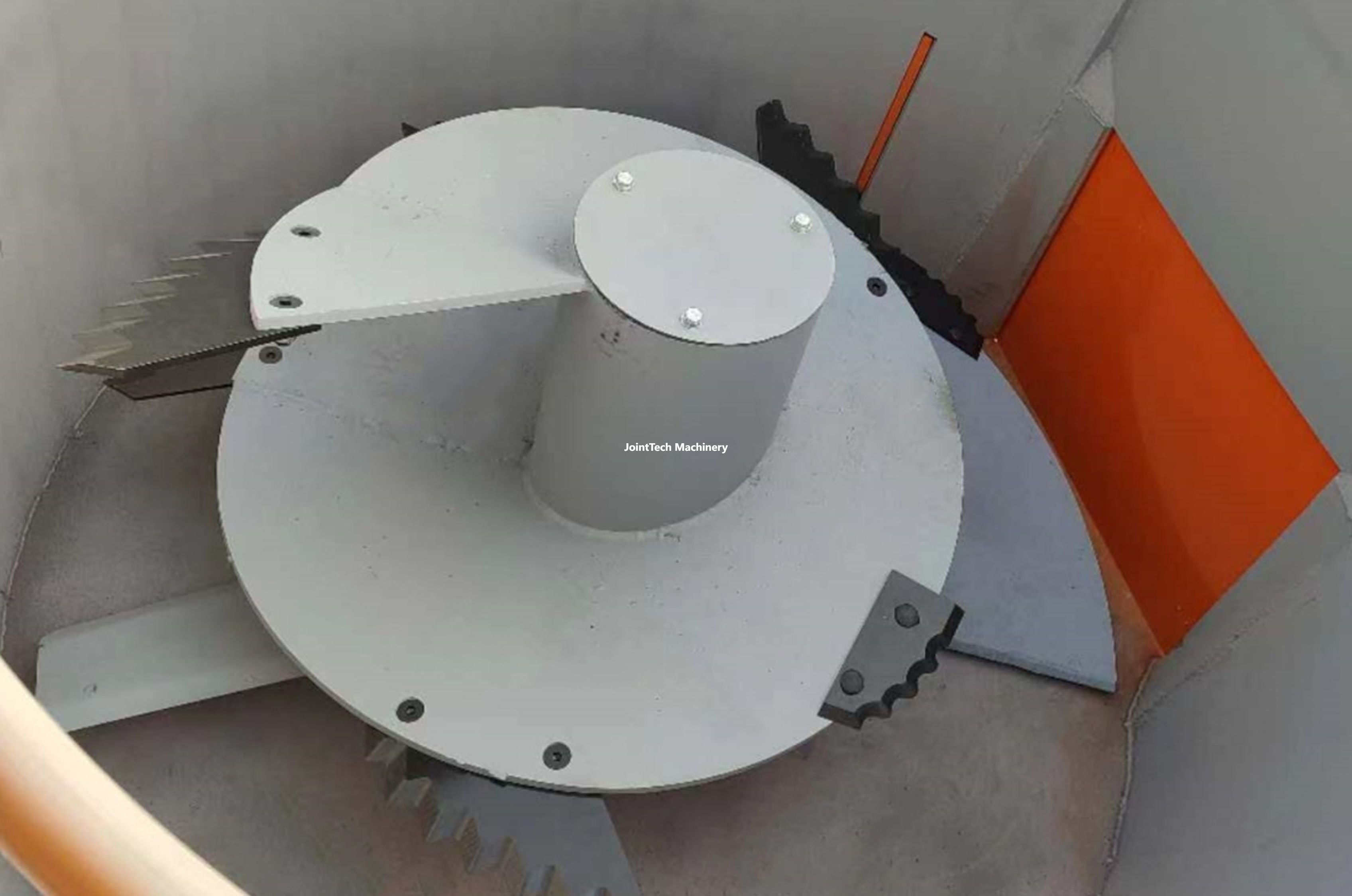

Mix Auger

Auger Flighting Thickness: 12 mm

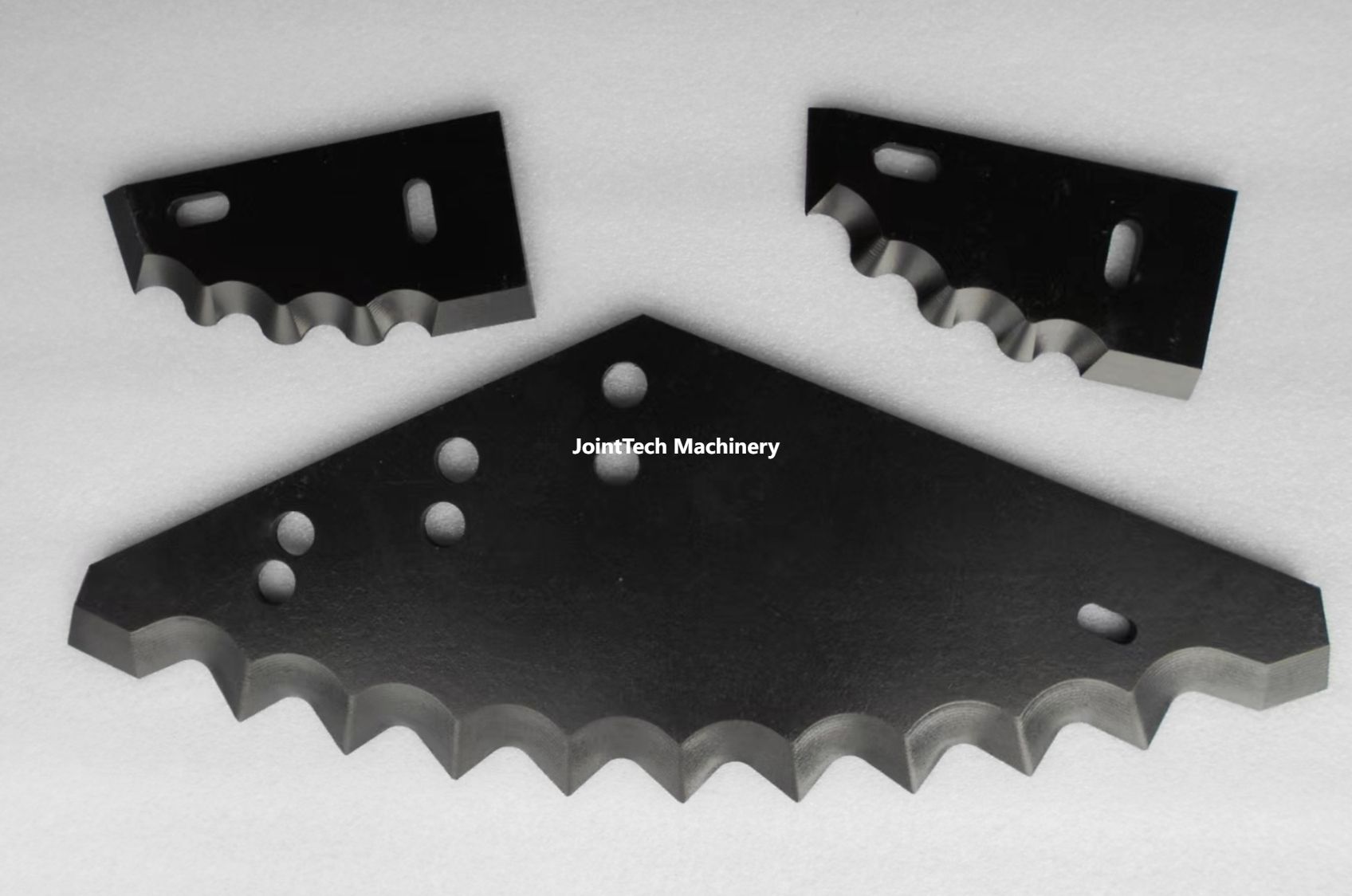

Cutting Blade

Heavy Duty Carbide Coated Knives

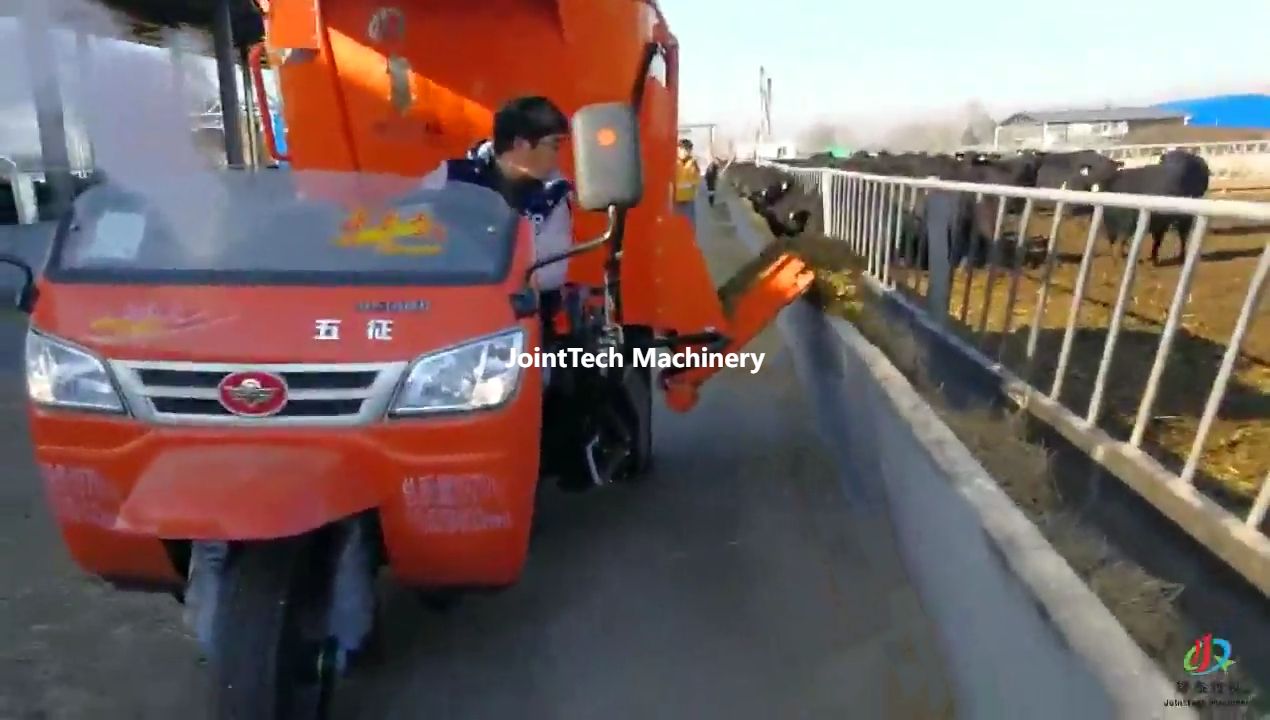

Use of Self Propelled Multi-functional TMR Mixer

公司名片

product-aad30

公司名片2 product-aad33

Payment

Q: What advantages does this self-propelled fully automatic feed mixer have?

This self-propelled fully automatic feed mixer integrates multiple functionalities, capable of performing various tasks such as loading, weighing, cutting, mixing, and feeding, thereby reducing the workload.

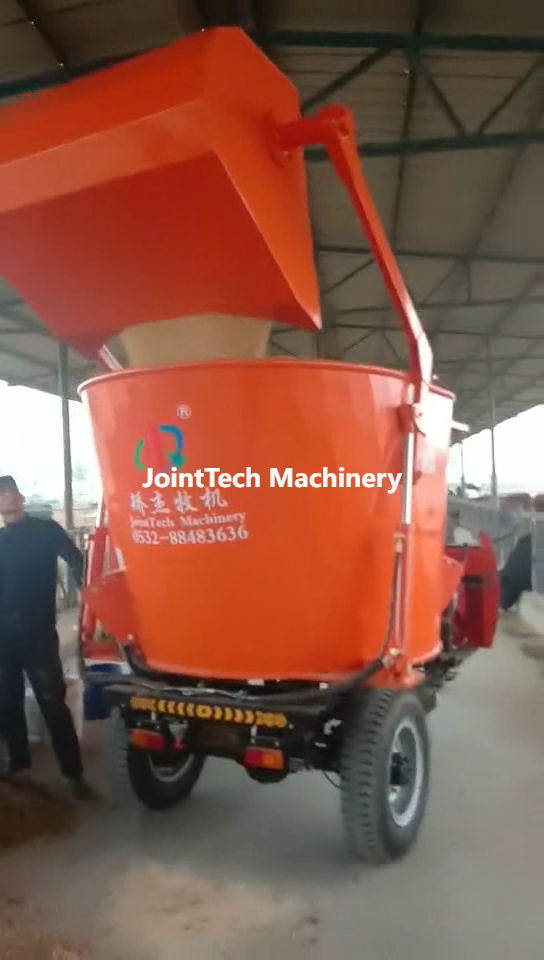

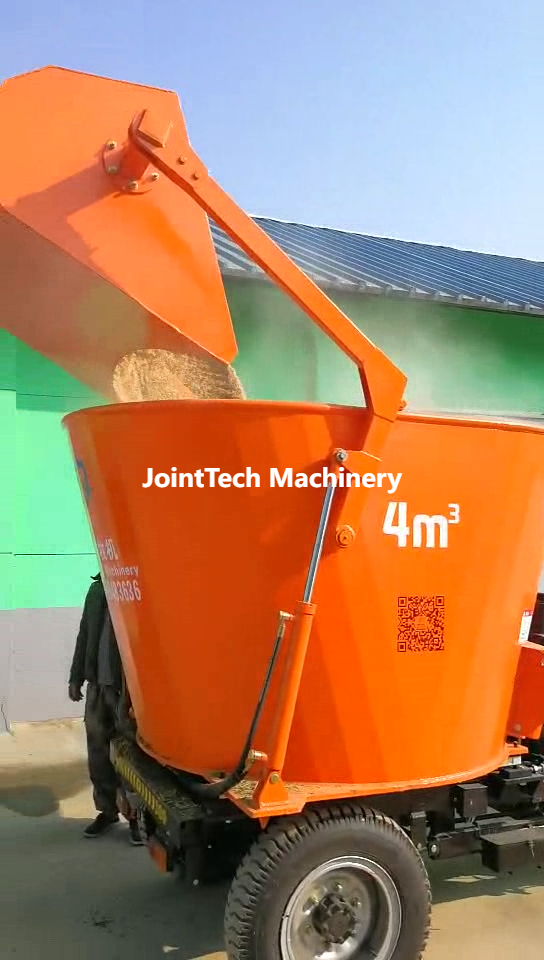

Q: What is the function of the loader bucket on the feed mixer?

The function of the bucket is to load the feed into the mixer. The worker puts the feed into the bucket, the display will show the weight, turn on the switch, the bucket boom will automatically lift up, and pour the feed into the mixer.This multifunctional mixer is suitable for farms without a loader or for small farms that practice group feeding.

Q: What is the function of the throwing belt on this feed mixer?

The adjustable conveyor belt is suitable for feeding troughs that are higher than 50 cm on farms. After work is completed, the discharge belt can be retracted to prevent damage.

Q: Are you trading company or manufacturer?

A leading livestock farm equipment manufacturer in China since 2016.

Q: What about warranty?

We will send the wearing parts of each machine when delivery. Warranty is 1 Year, during this period, we will offer free spare parts if they are damaged. After warranty, we send the parts in a reasonable price.

Q: Do you accept OEM, ODM order?

Absolutely. Any customized order is warmly welcomed.
