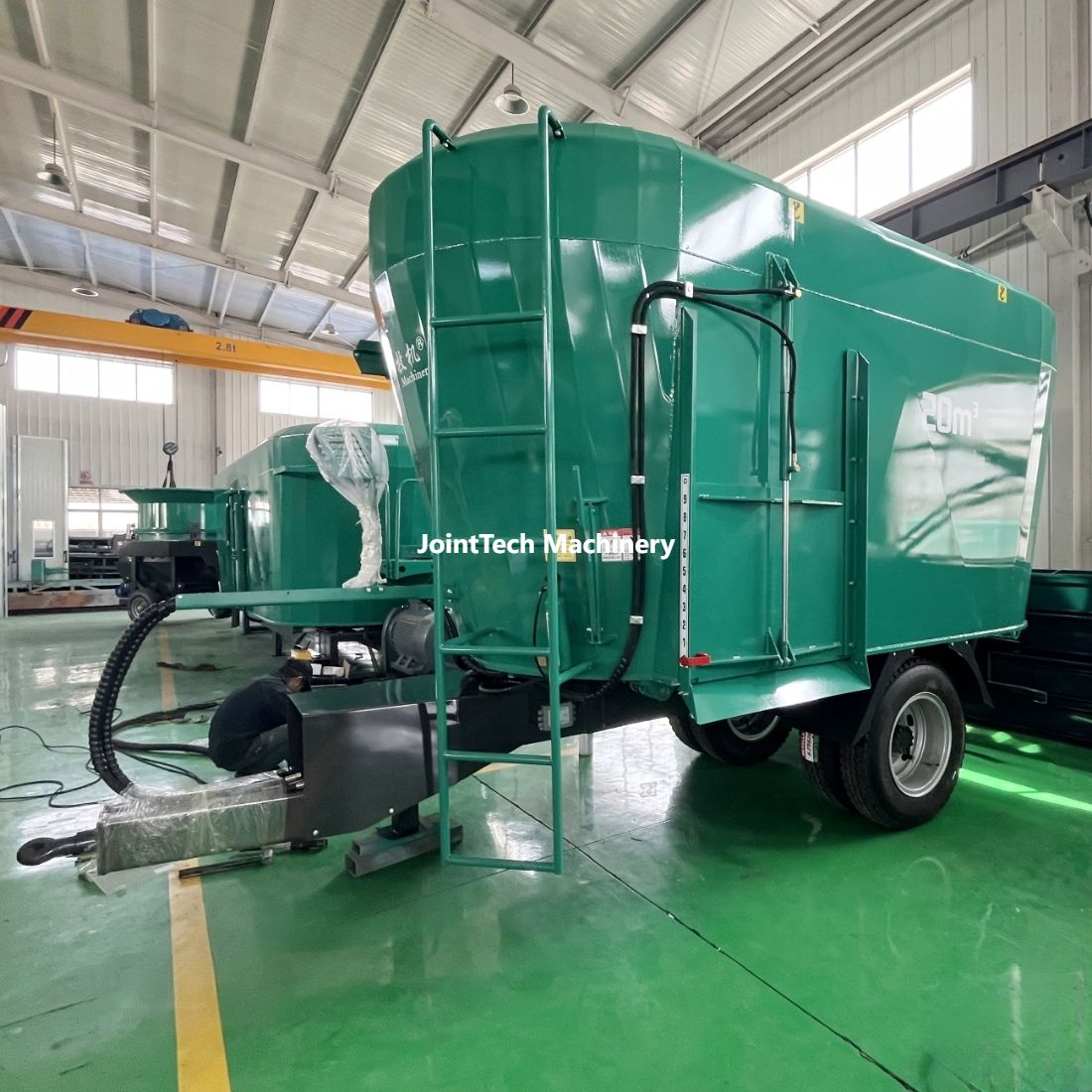

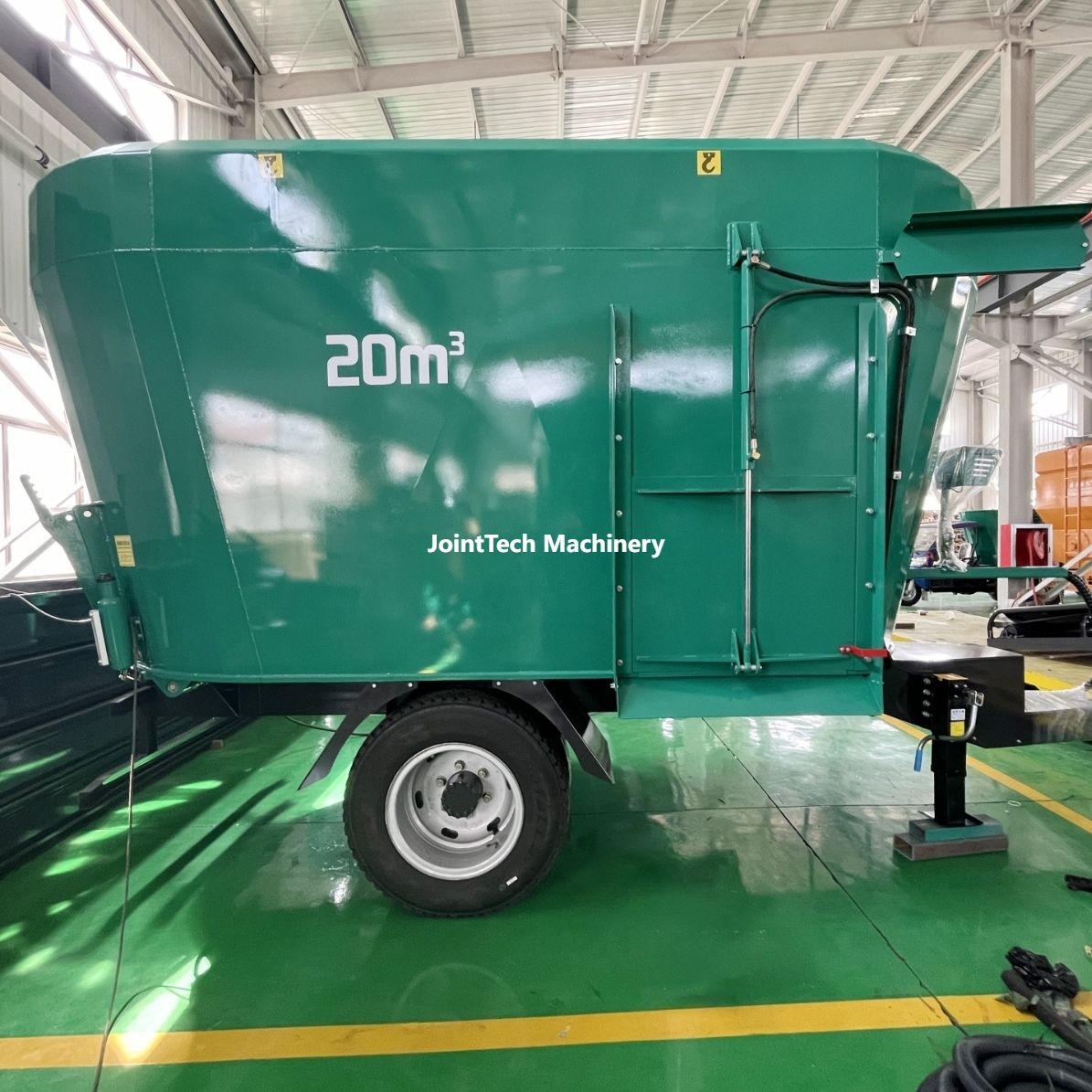

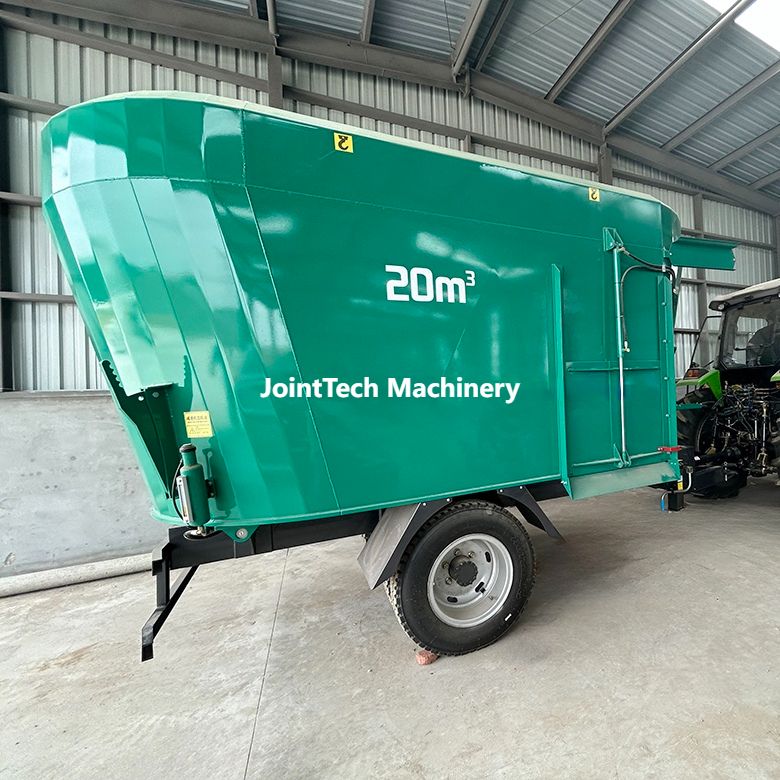

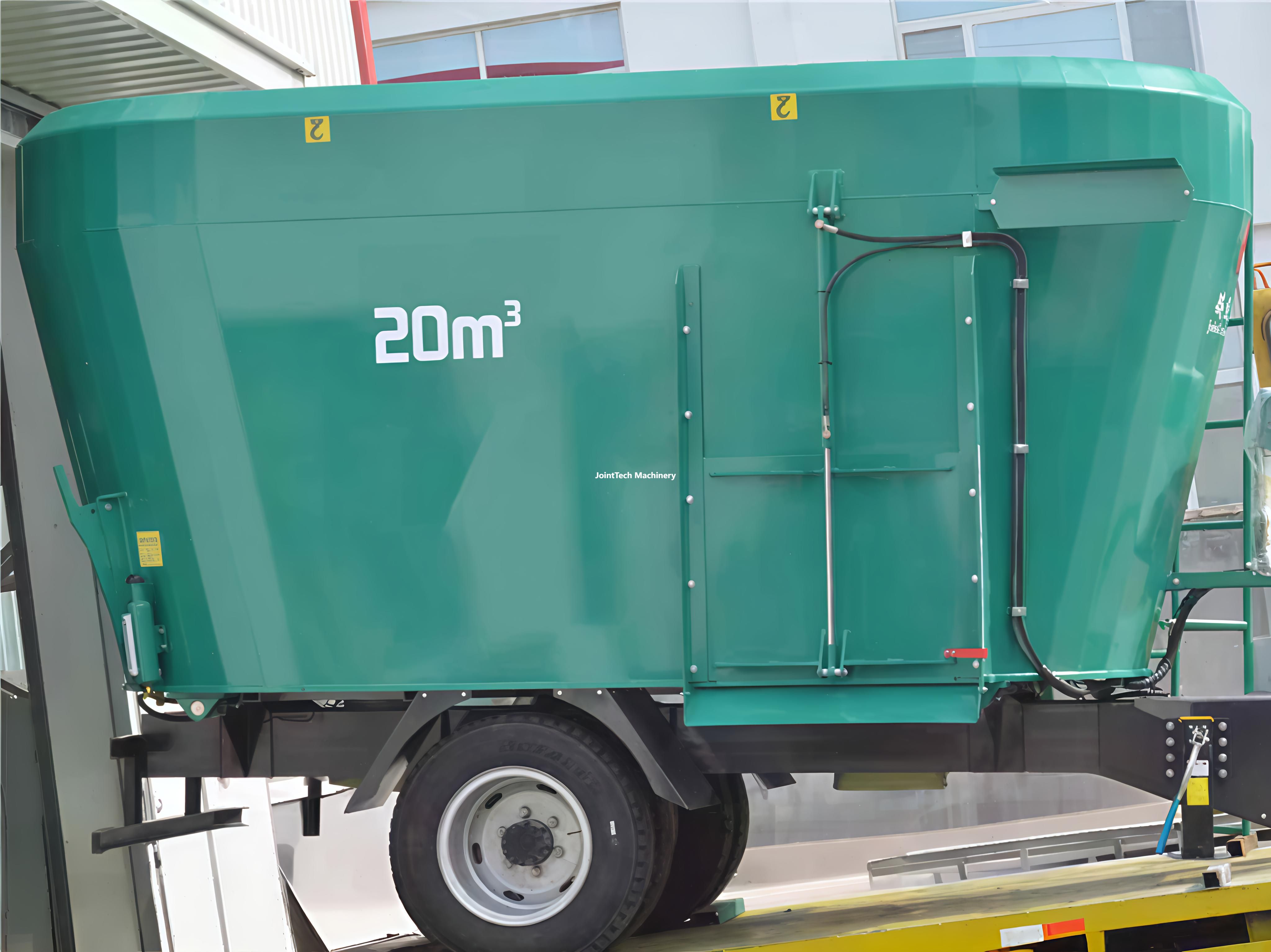

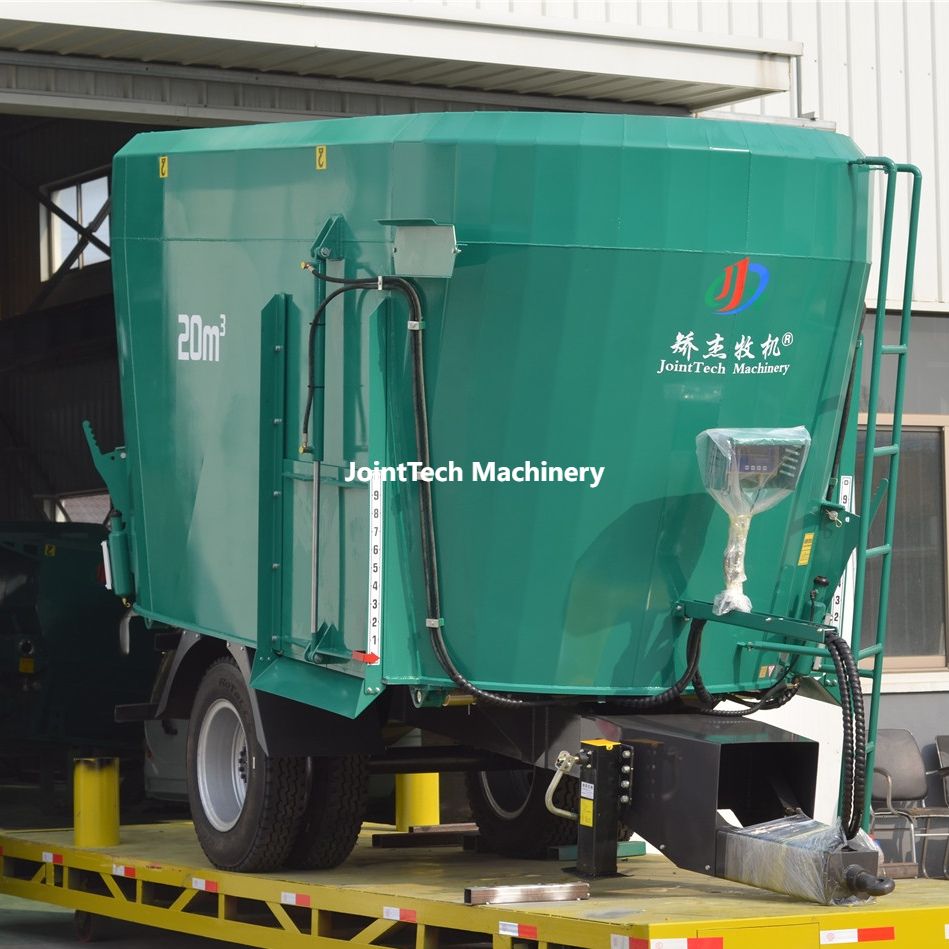

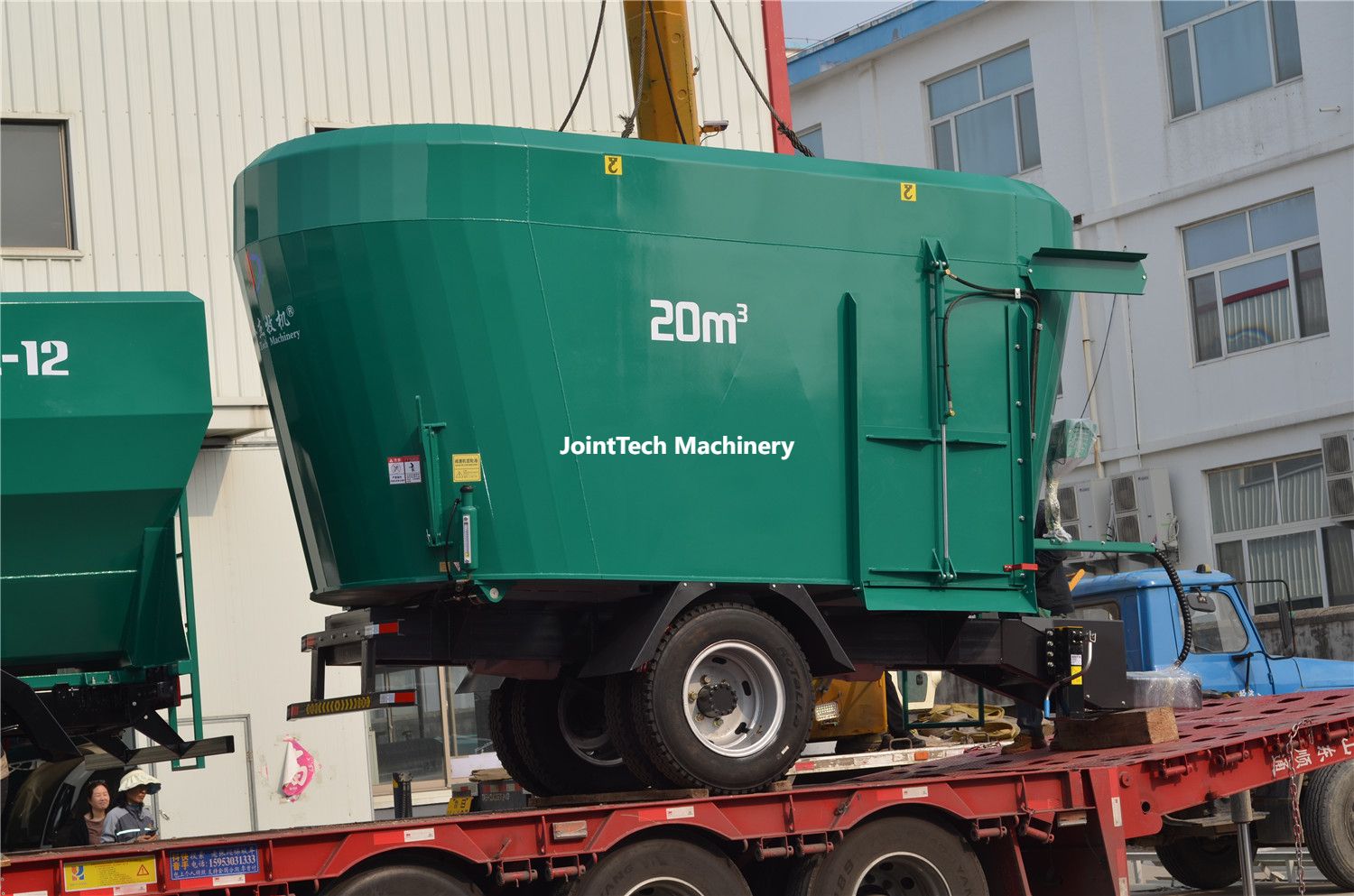

Trailed Vertical TMR Mixer Specifications
No | Item | Data |
1 | Matching Power | 160-180 HP |
2 | Bucket capacity | 20 M3 |
3 | Loading weight | 7 Ton |
4 | Auger Qty' | 2 Sets |
5 | Cutting Blade Qty' | 18 Sets |
6 | Mix Time | 20 Minutes |
7 | Discharge Type | Side Discharge |
8 | L*W*H(mm) | 5810*2160*2830 |
Trailed Vertical TMR Mixer Configuration
Fully Welded Mix Boby: Q355B
Floor Steel Thickness: 20 mm
Side Steel Thickness: 10 mm

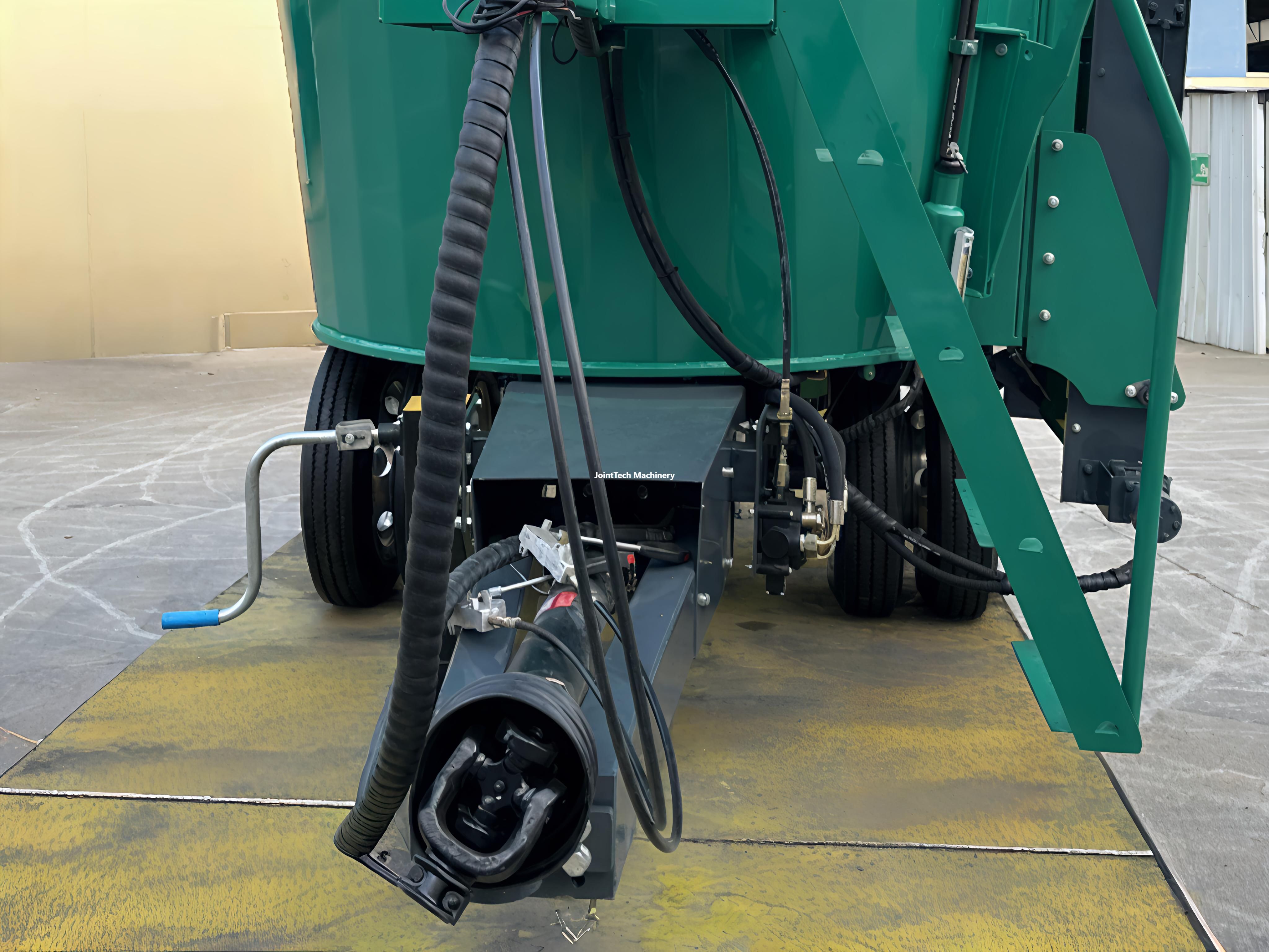

PTO
Customized according to your tractor.

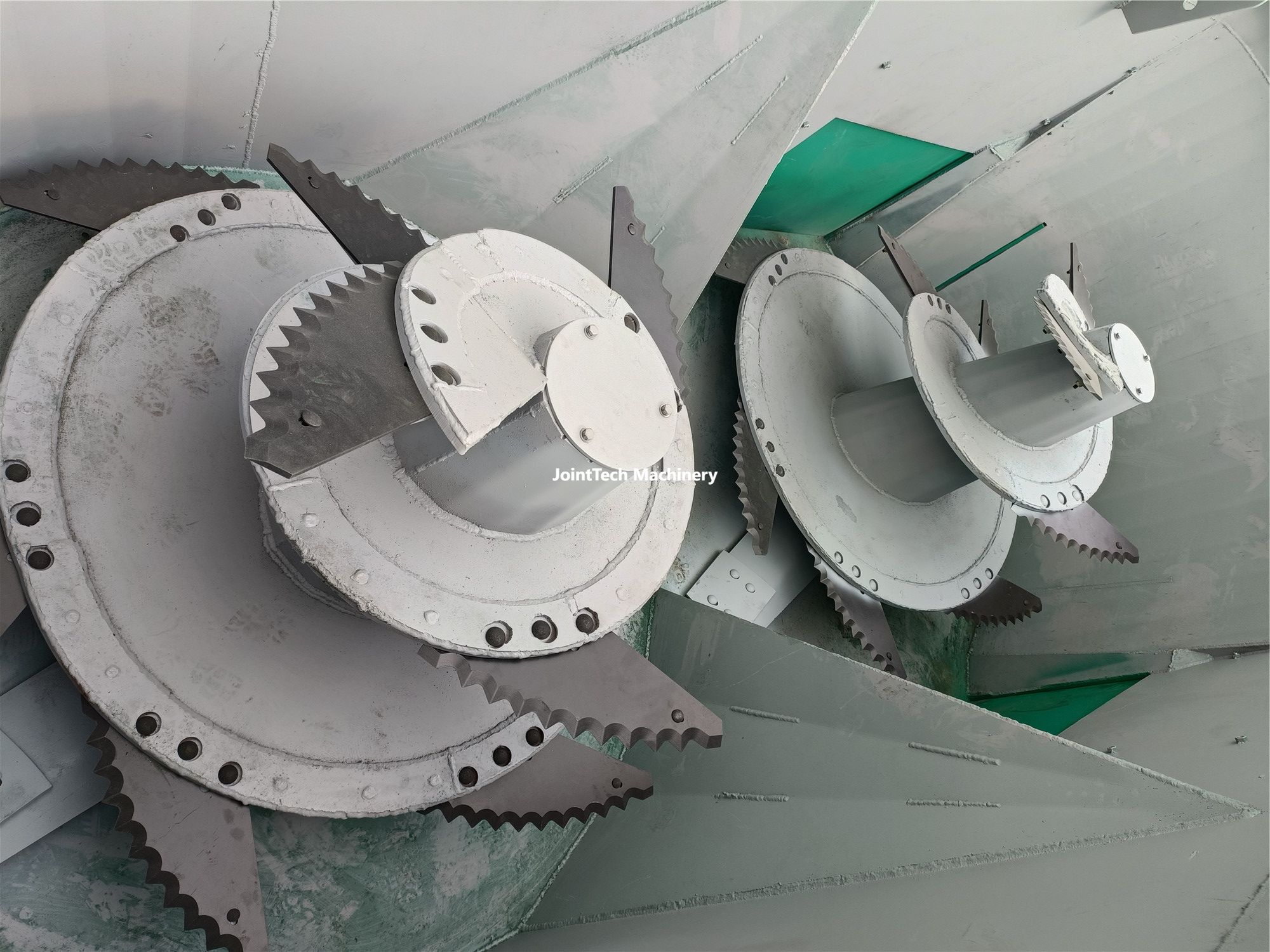

Double Mix Auger
Auger Flighting Thickness: 24 mm（16mmQ355+8mmNM400)

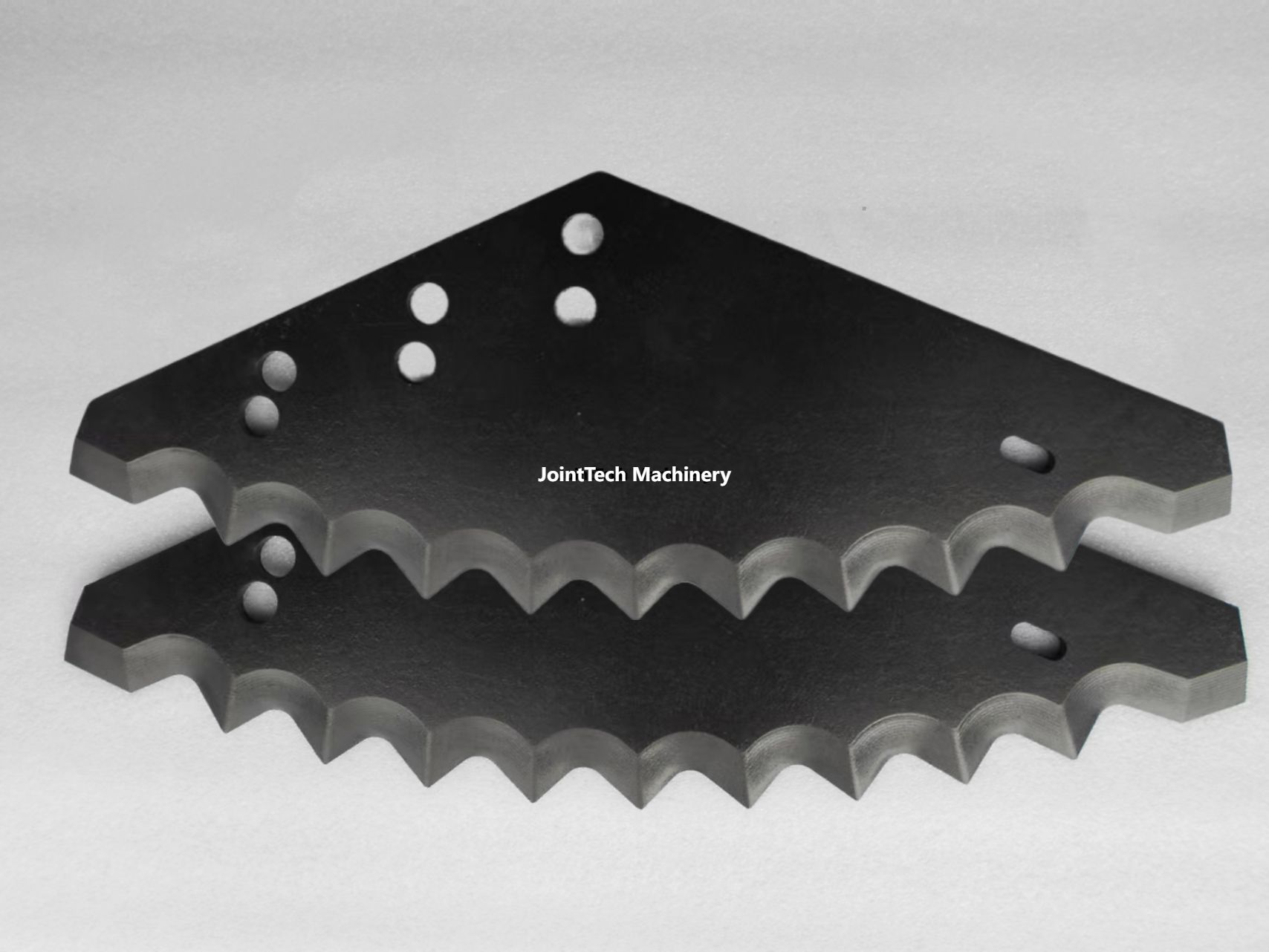

Cutting Blade
Heavy Duty Carbide Coated Knives

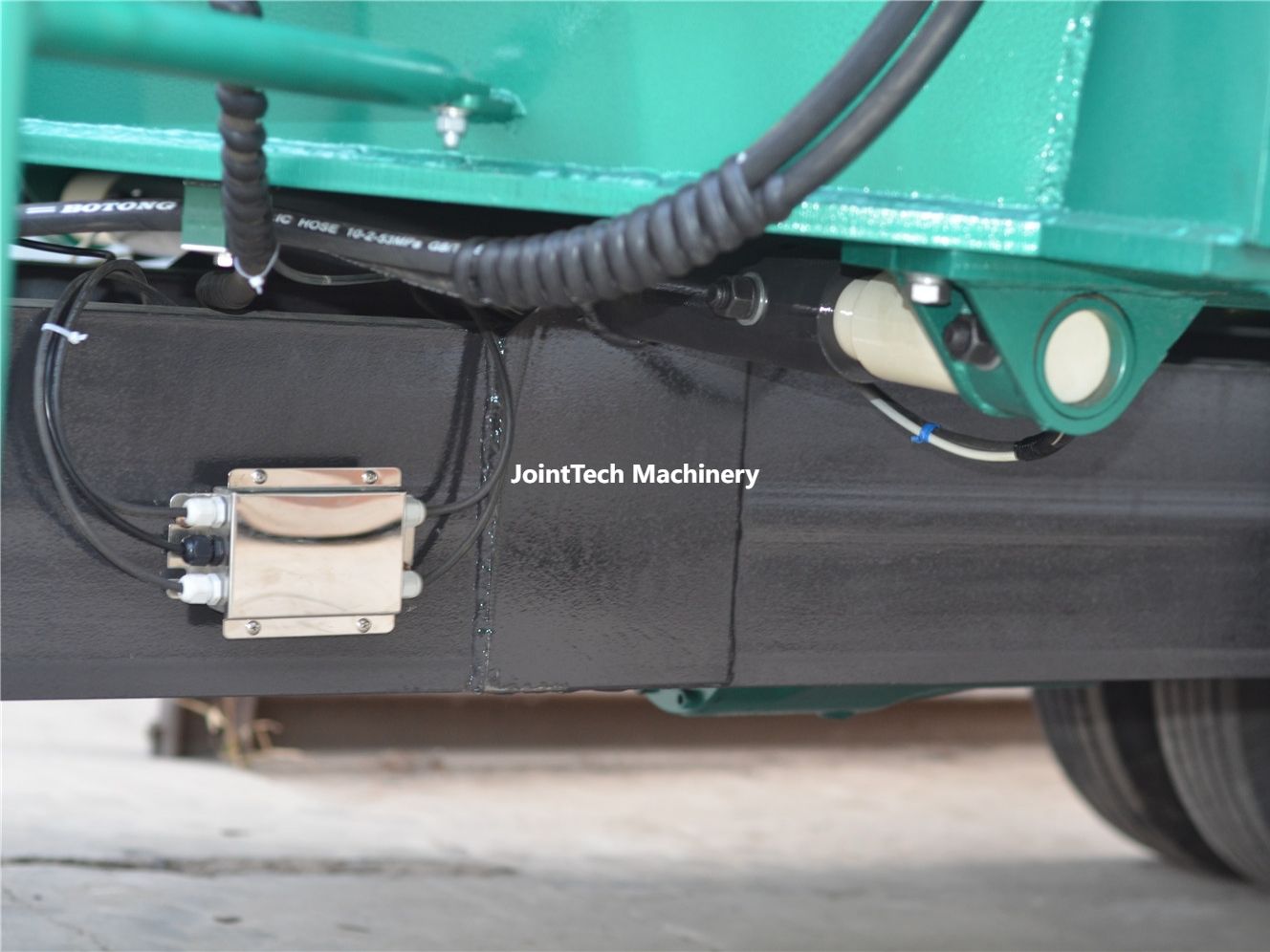

Weighing Sensors
3-Point Weigh sensors, Avery Weigh-Tronix Brand

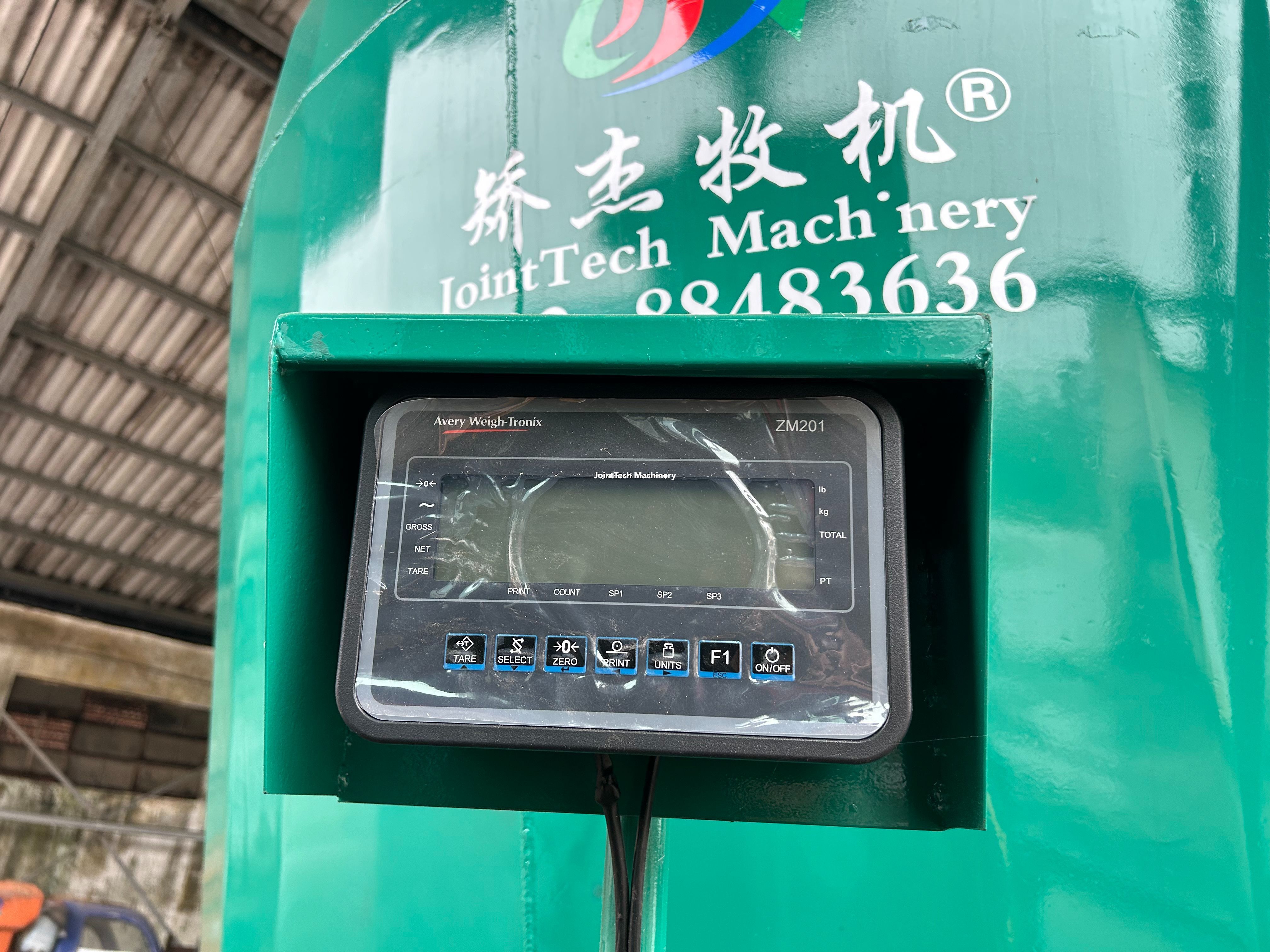

Weight Display Screen
With Avery Weigh-Tronix ZM201 Indicator

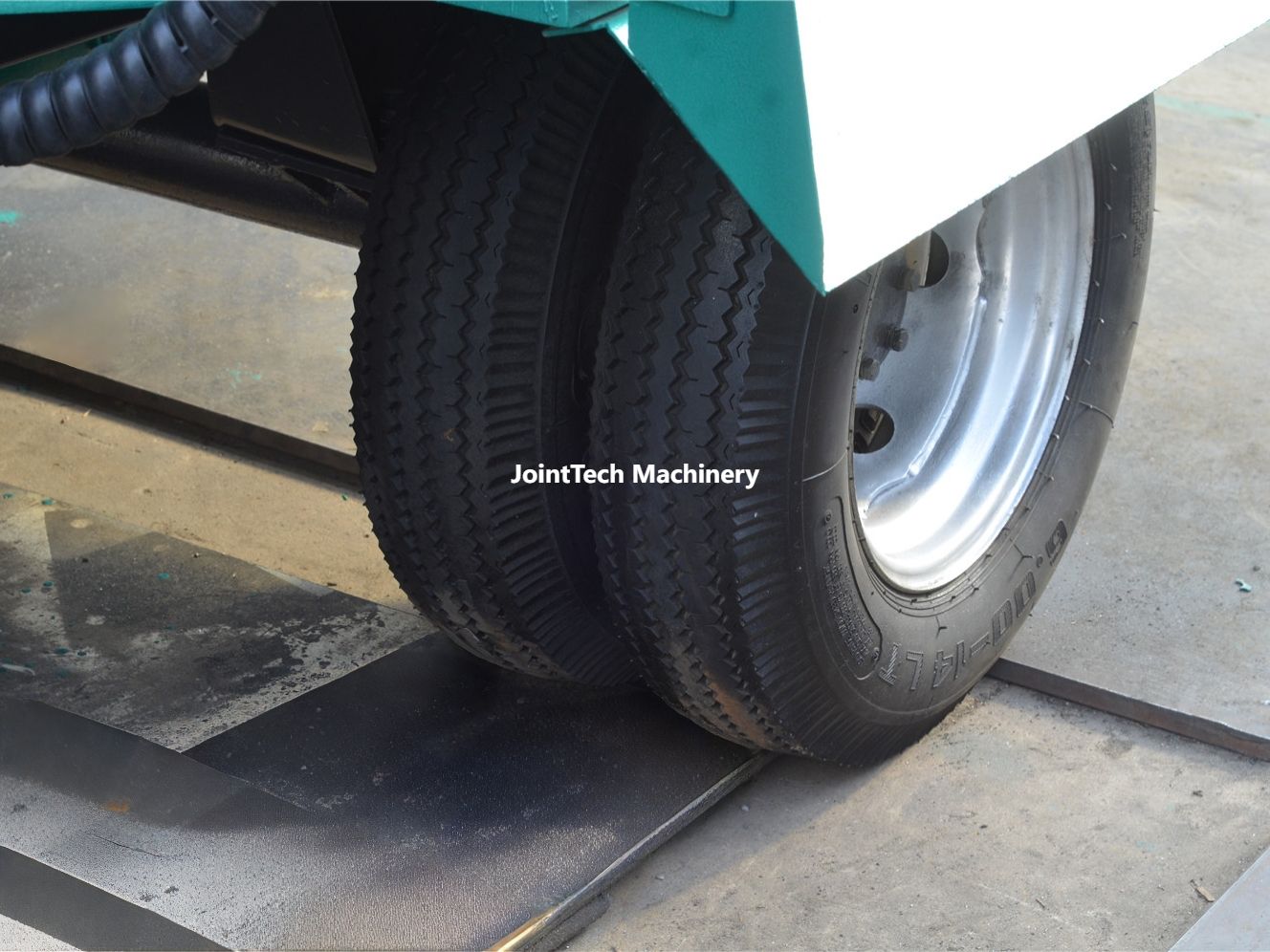

Double Wheel
Each side is equipped with durable dual wheels, which possess a high load-bearing capacity.

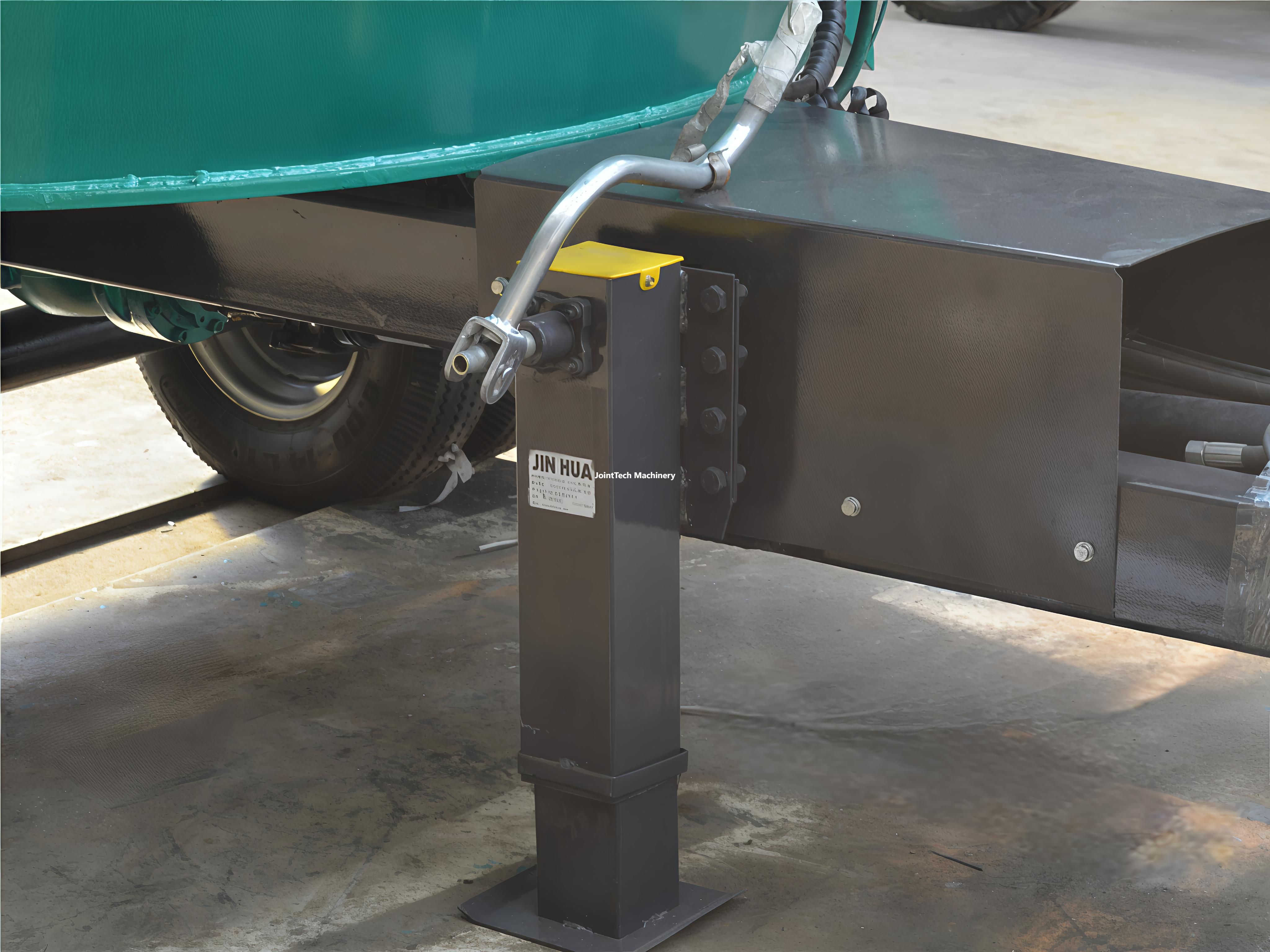

Leg
Support the machine after disconnecting from the tractor.

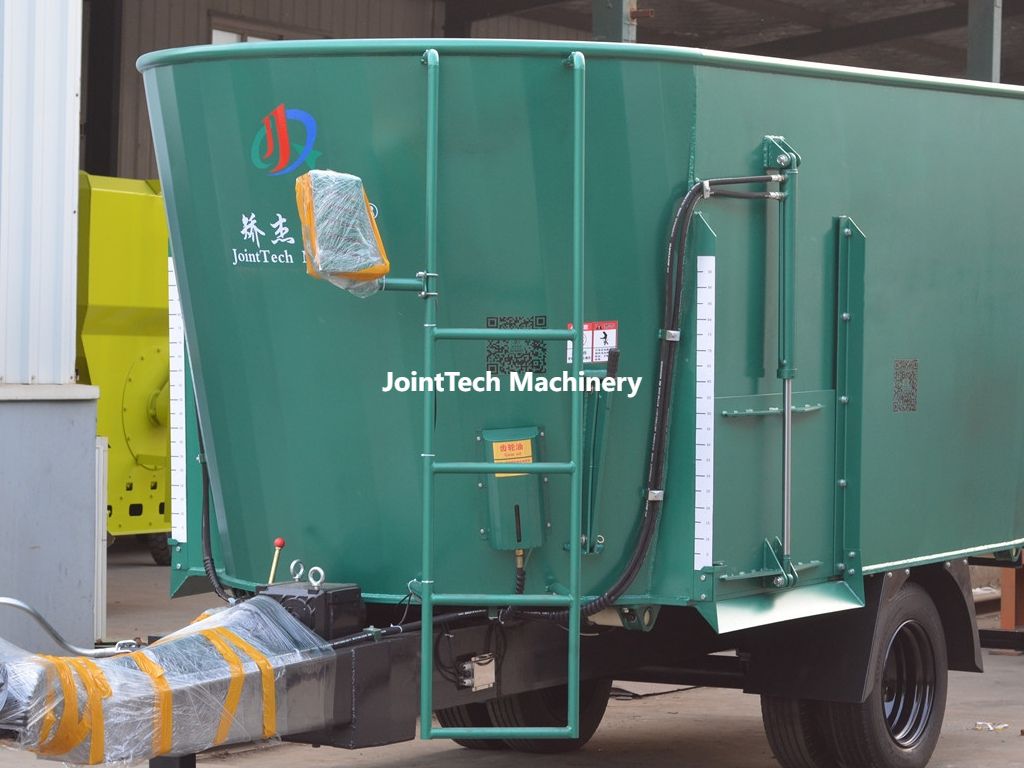

Ladder
Facilitates observation of the conditions inside the mixer.

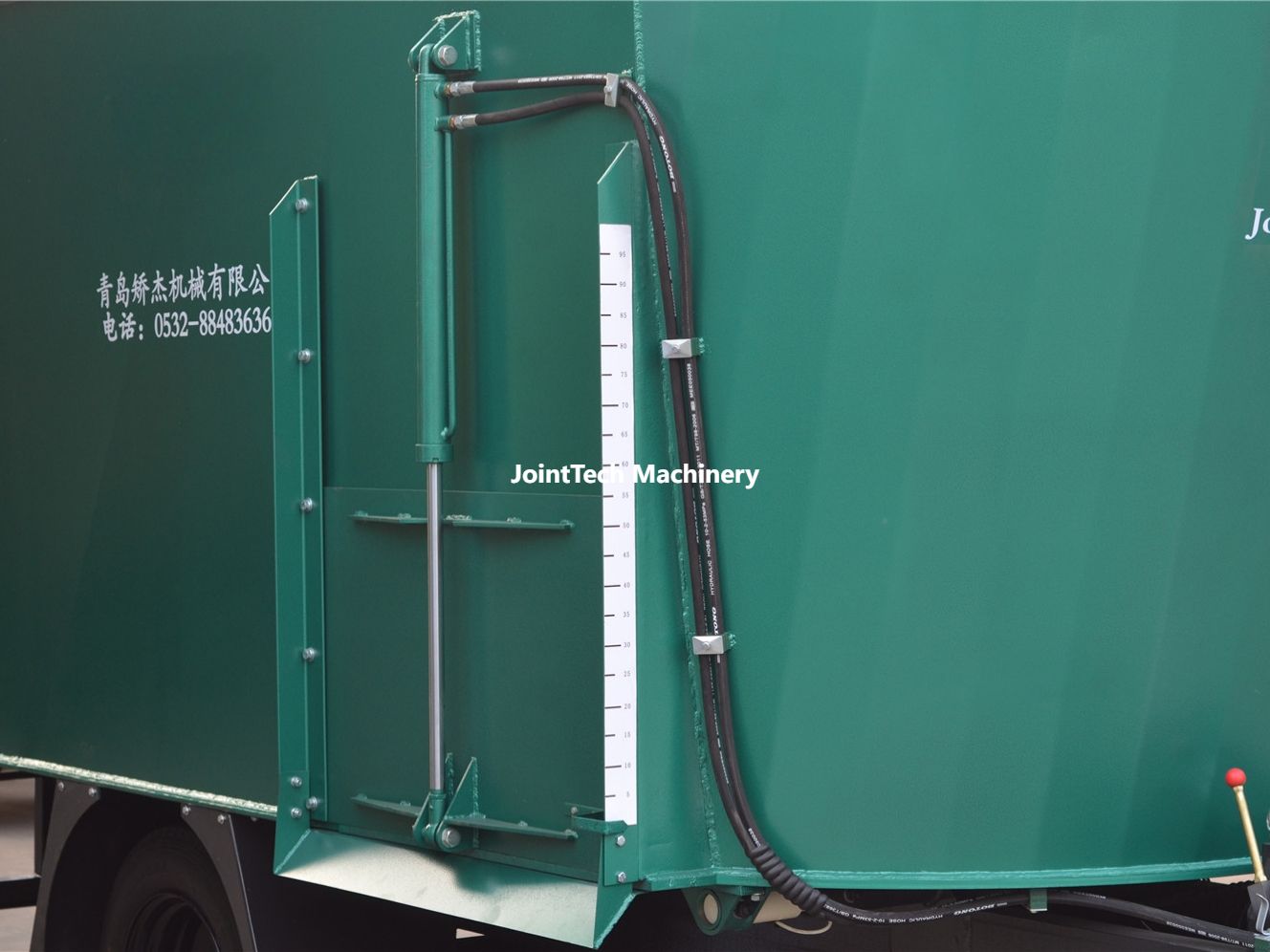

Hydraulic Control Discharge Door

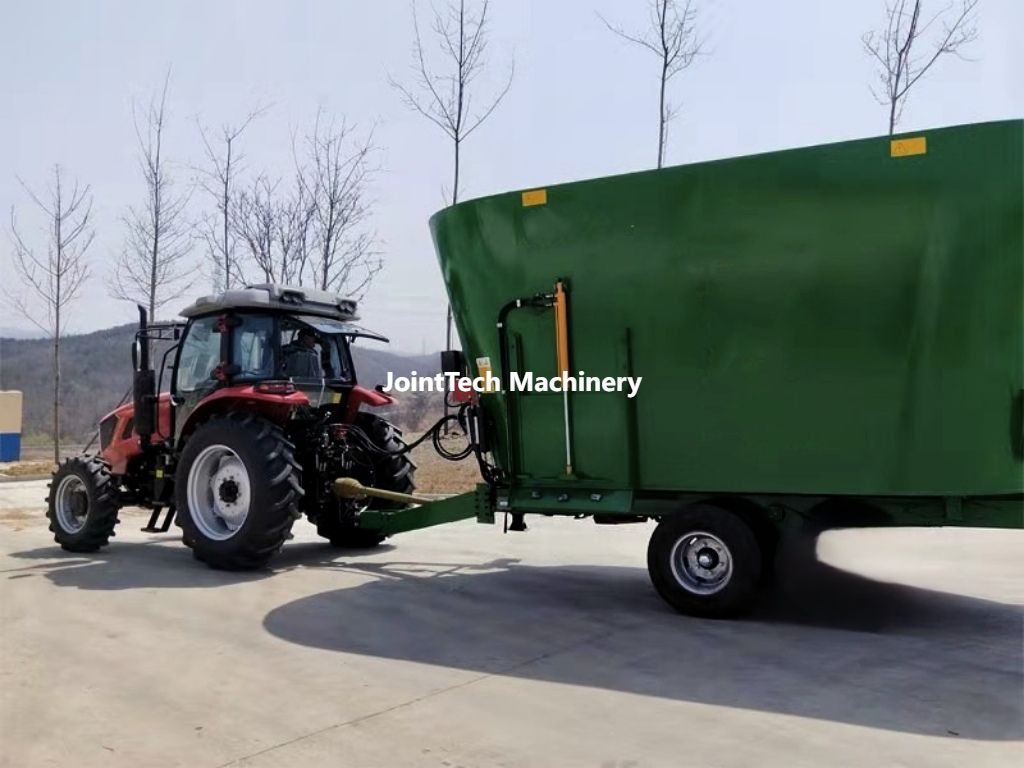

Use Of Trailed Vertical TMR Mixer
Q: What are the advantages of this trailed TMR mixer?
The vertical trailed TMR mixer can complete multi-step feeding work such as mixing, weighing, and spreading. Compared with traditional stationary mixers, the trailed mixers can enter the cowshed to complete the spreading work, replacing the work of the feed spreader.
Q: What farm is this trailed TMR mixer suitable for?
A 20 cubic meter traction mixer is suitable for medium and large farms, such as those raising cattle, dairy cows, goats, sheep, horses, and other livestock.
Q: What should be done if a larger or small volume feed mixer is needed?
Our factory also manufactures various models of feed mixers, including single auger and triple augers mixers, with capacities ranging from 5m³ to 36m³.
Q: Are you trading company or manufacturer?
Since 2016, our company has been a leading manufacturer of livestock farming equipment in China. Main product including TMR Feed Mixer, Cow Dung Removal Machine, Feeding Machine, Calf Feeder, Sand/Rice Husk Spreader, Silage Reclaimer, Milk Cooling Tank, Drinking Water Trough, Cow Hoof Trimming Machine and so on.
Q: What are the warranty terms for the product?
Each machine will be accompanied by consumable parts at the time of shipment. The equipment is covered by a one-year warranty, during which we will provide free replacement parts if the consumable parts are damaged. After the warranty period, we will sell the spare parts at a reasonable price.
Q: Do you accept OEM, ODM order?
Absolutely. Any customized order is warmly welcomed.
