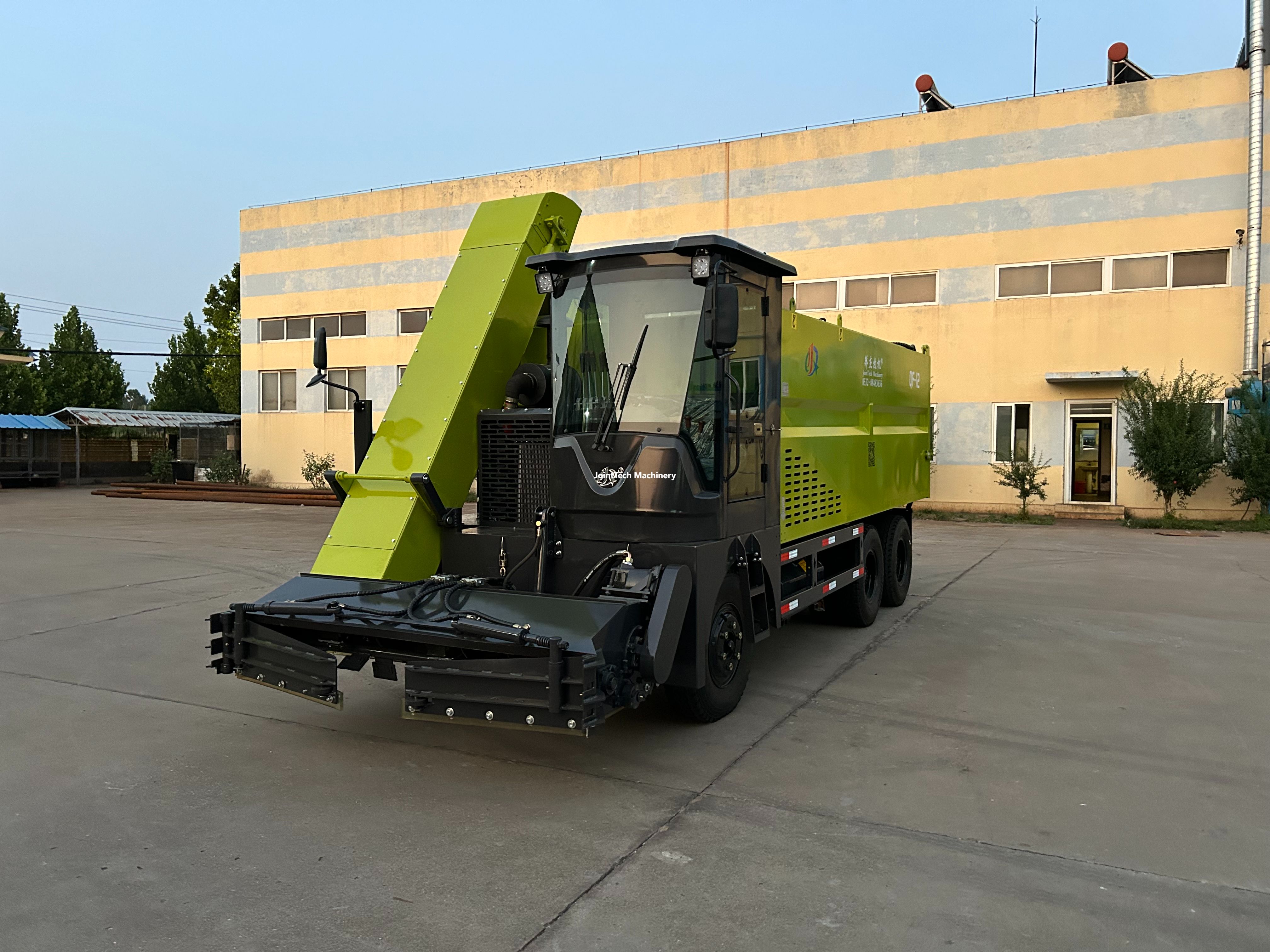

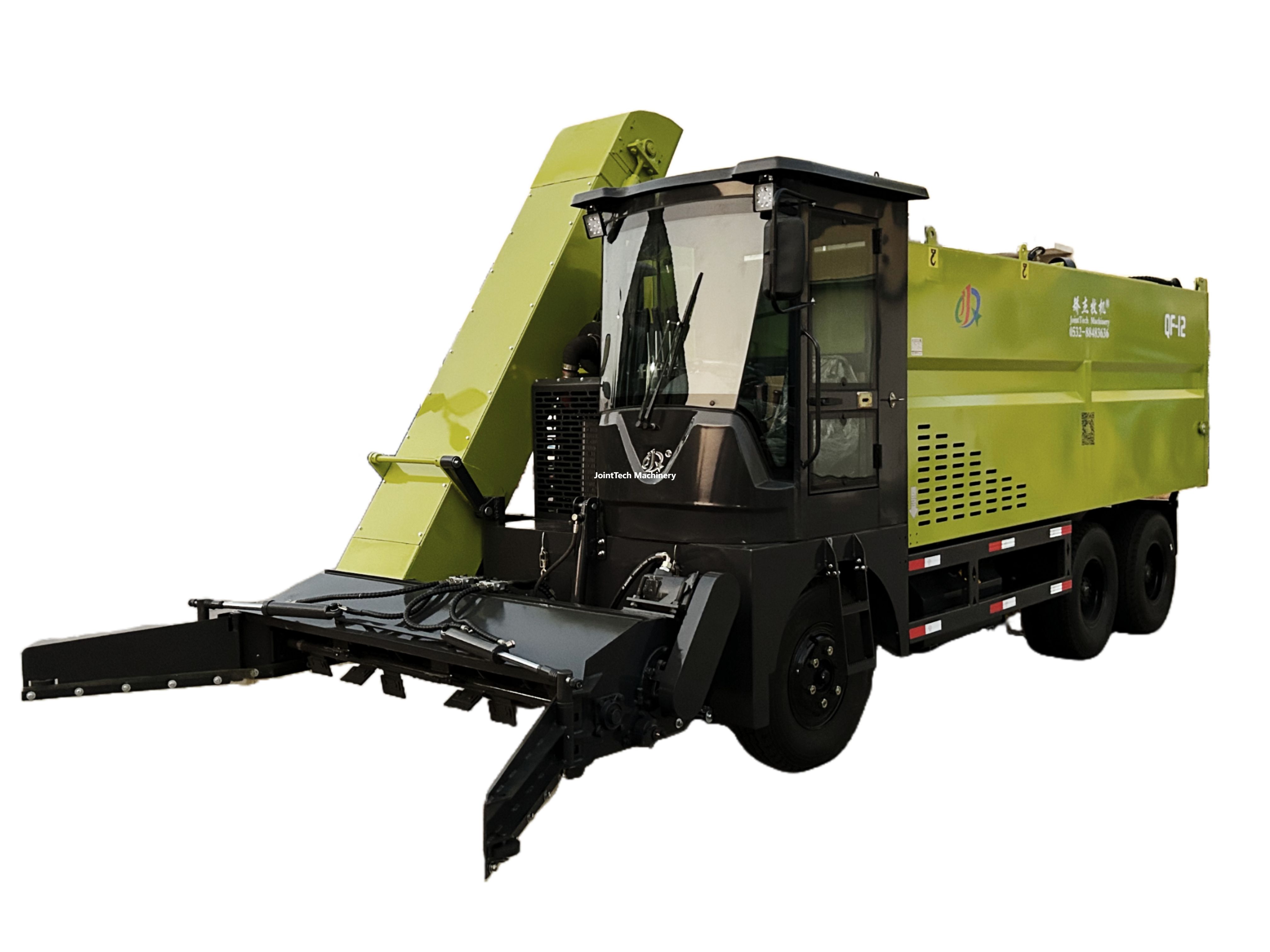

Efficient Cow Manure Collector Structural Composition
a. Fecal cleaning device: Include scraper blades, screw winches, etc. The scraper can scrape and collect ground feces, and the spiral auger can transport feces to designated locations.
b. Power system: Mainly diesel engine. Diesel engines have high power and strong endurance, suitable for large ranches and outdoor operations.

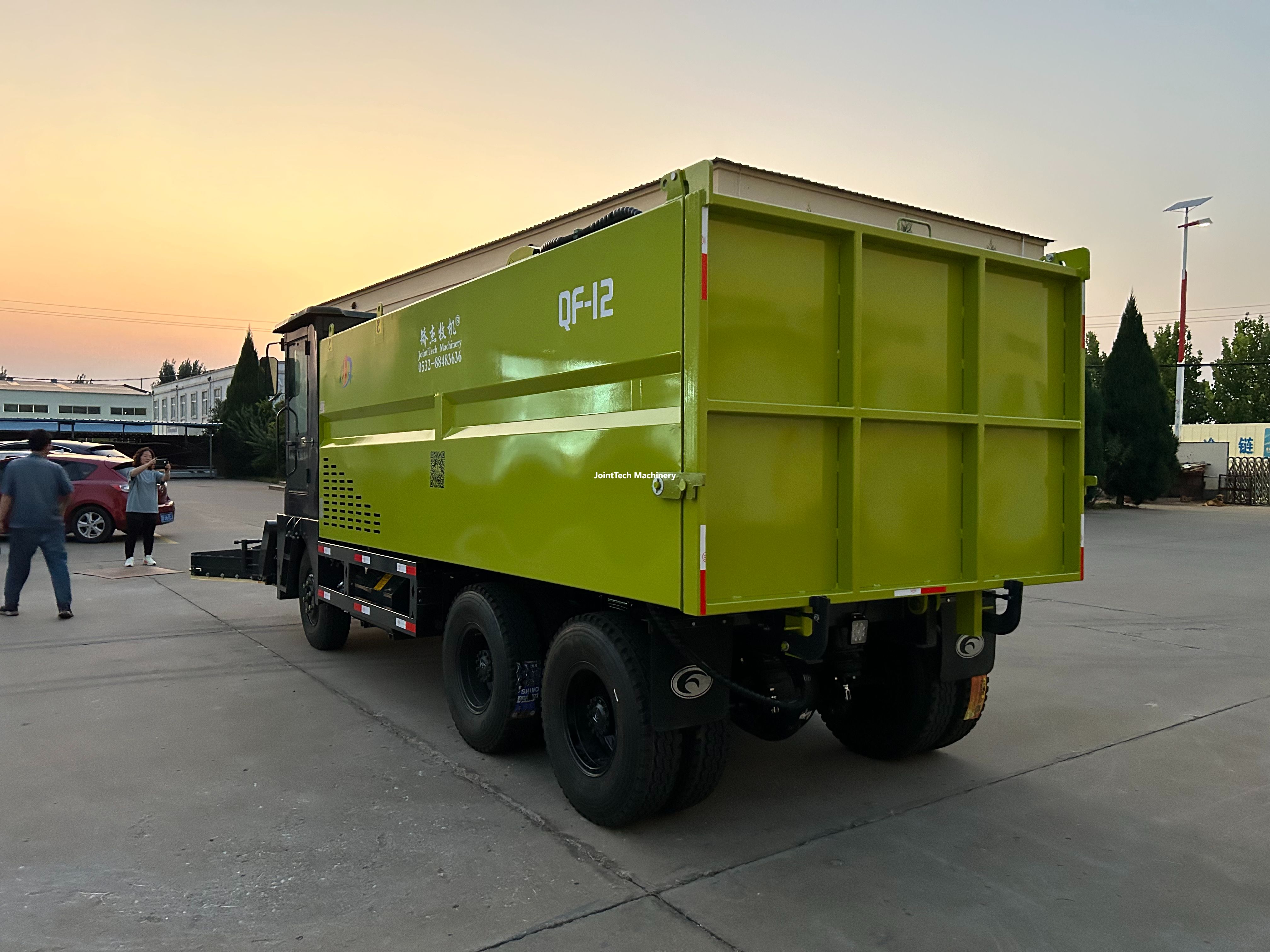

c. Transport carriage: used to load collected feces, with different volume specifications, made of corrosion-resistant steel plate, sealed to prevent fecal leakage during transportation.
d. Control system: Implement operational control of the manure cleaning vehicle, such as controlling the start, stop, and speed adjustment of the manure cleaning device, unloading operations of the transport carriage, and the forward, backward, and steering of the vehicle.

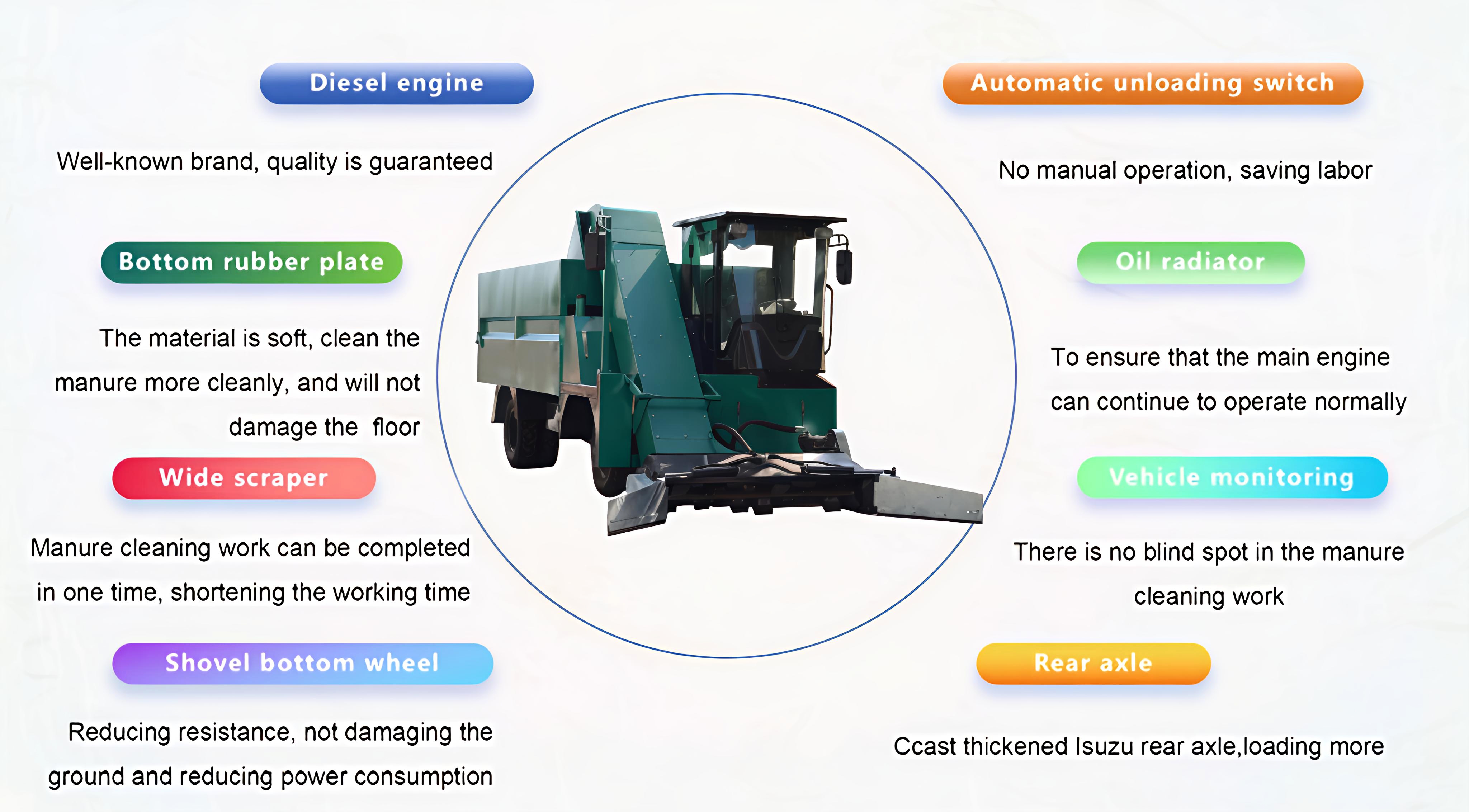

Efficient Manure Removal System
The manure cleaning shovel head of the machine is designed with widened scrapers on both sides, which can be customized according to the width of the feeding channel, quickly complete the manure cleaning work.
The rubber plate at the bottom of the shovel head is designed to be in close contact with the ground and not damage the ground.
A large area oil radiator is used to reduce the oil temperature and ensure the continuous normal operation of the engine.
The automatic manure unloading switch does not need to be operated manually, saving labor.
The cab is made of tempered glass, which has a good line of sight and is easy to clean, providing a comfortable working environment.
Cow Manure Collector Parameter
Modle | L*W*H (mm) | Engine | Power(HP) | Loading Weight(kg) | Applicable Cow Farm Scale |

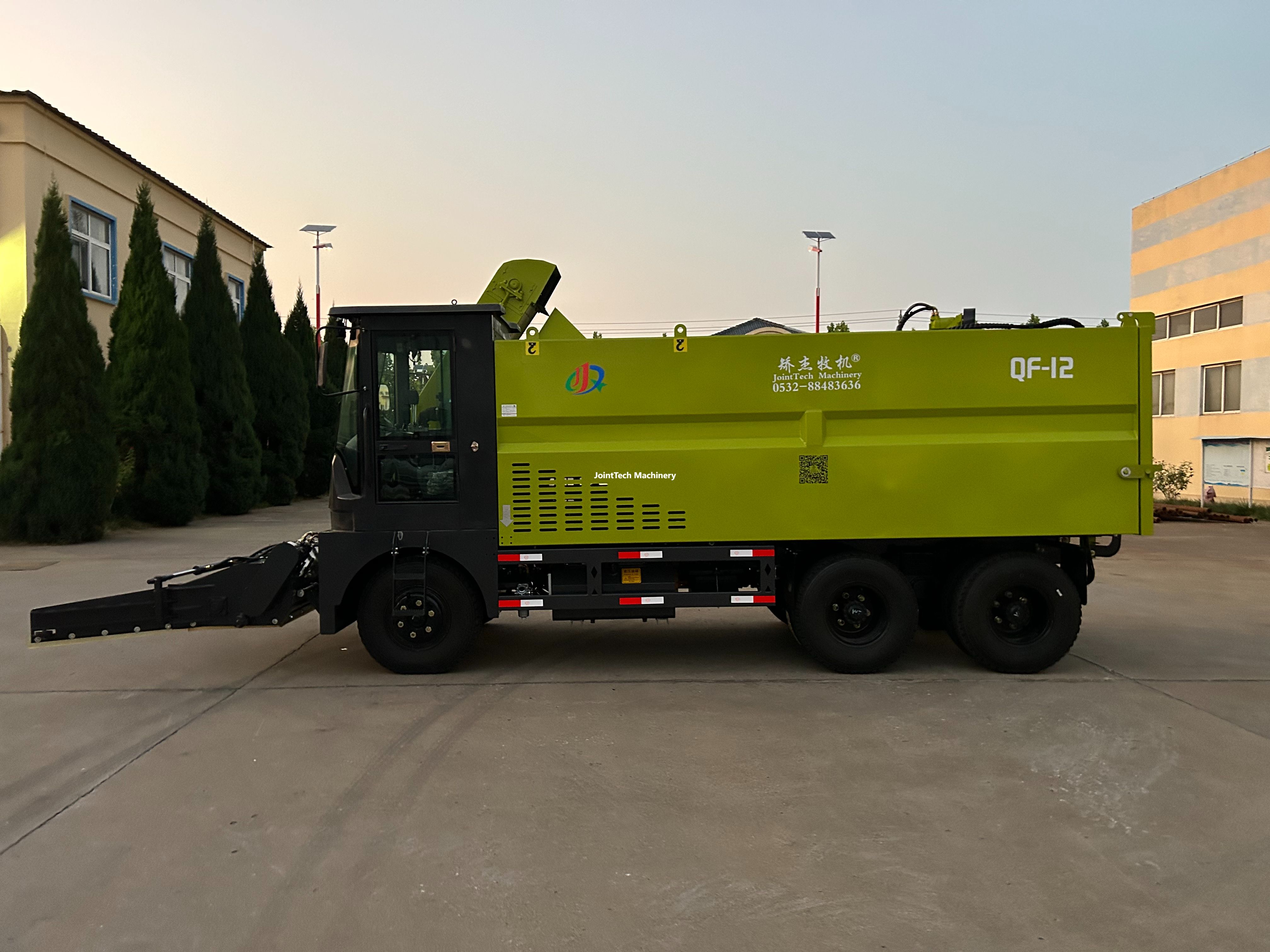

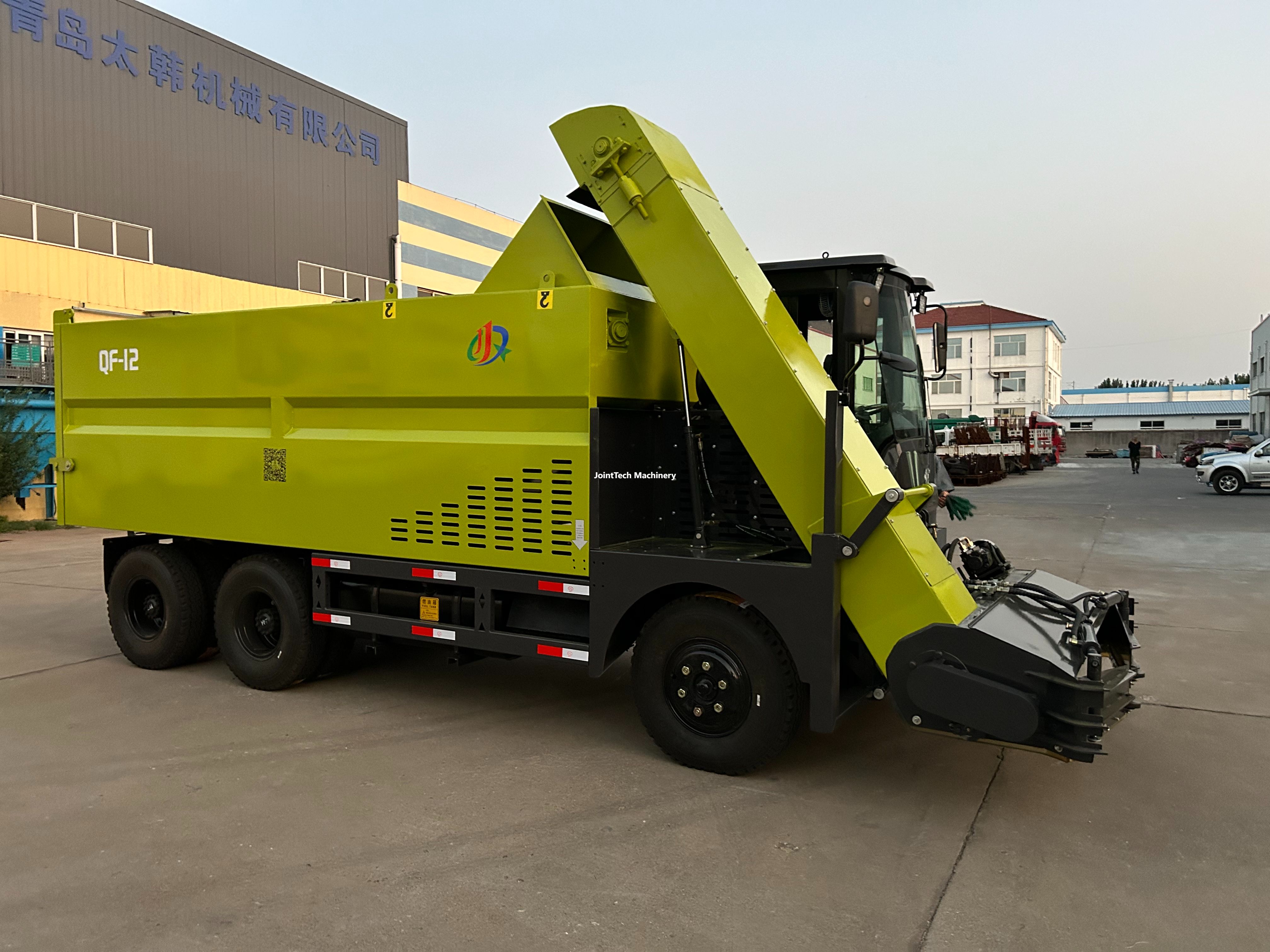

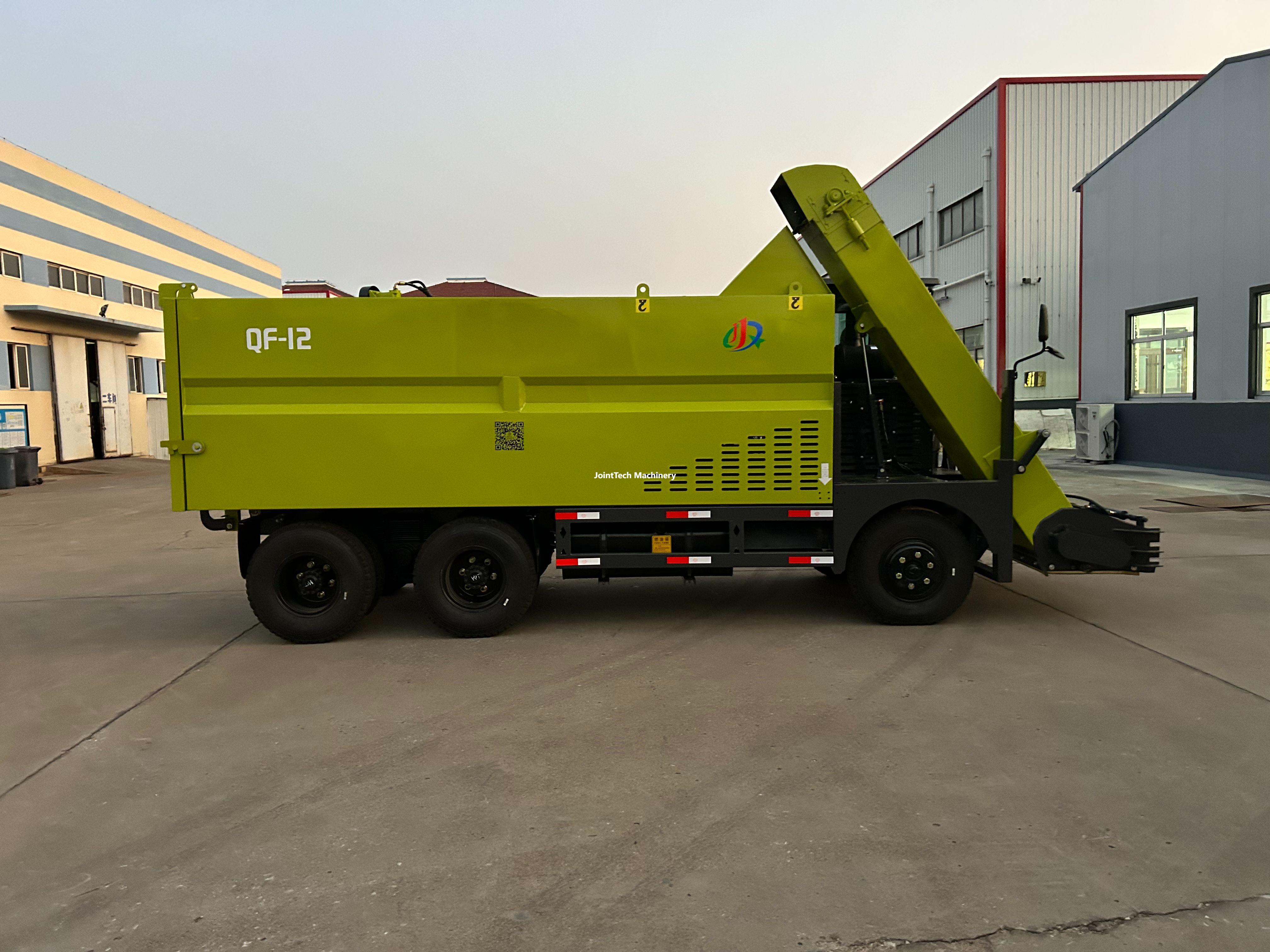

| QF-10 | 5800*2200*2700 | YUNNEI 4102 | 103 | 8000 | 1000-2000 Cows |
| QF-12 | 6200*2400*2800 | YUNNEI 4108 | 145 | 12000 | 1500-2500 Cows |
| QF-17 | 7500*2400*3090 | WEICHAI4108T | 221 | 15000 | 3000-5000 Cows |
Cow Manure Collector Configuration
Fully Welded Mix Boby: Q355B
Diesel Engine
YUNNEI 4108 powerful diesel engine. 4 cyclinder, strong power and low fuel consumption, easy maintenance.

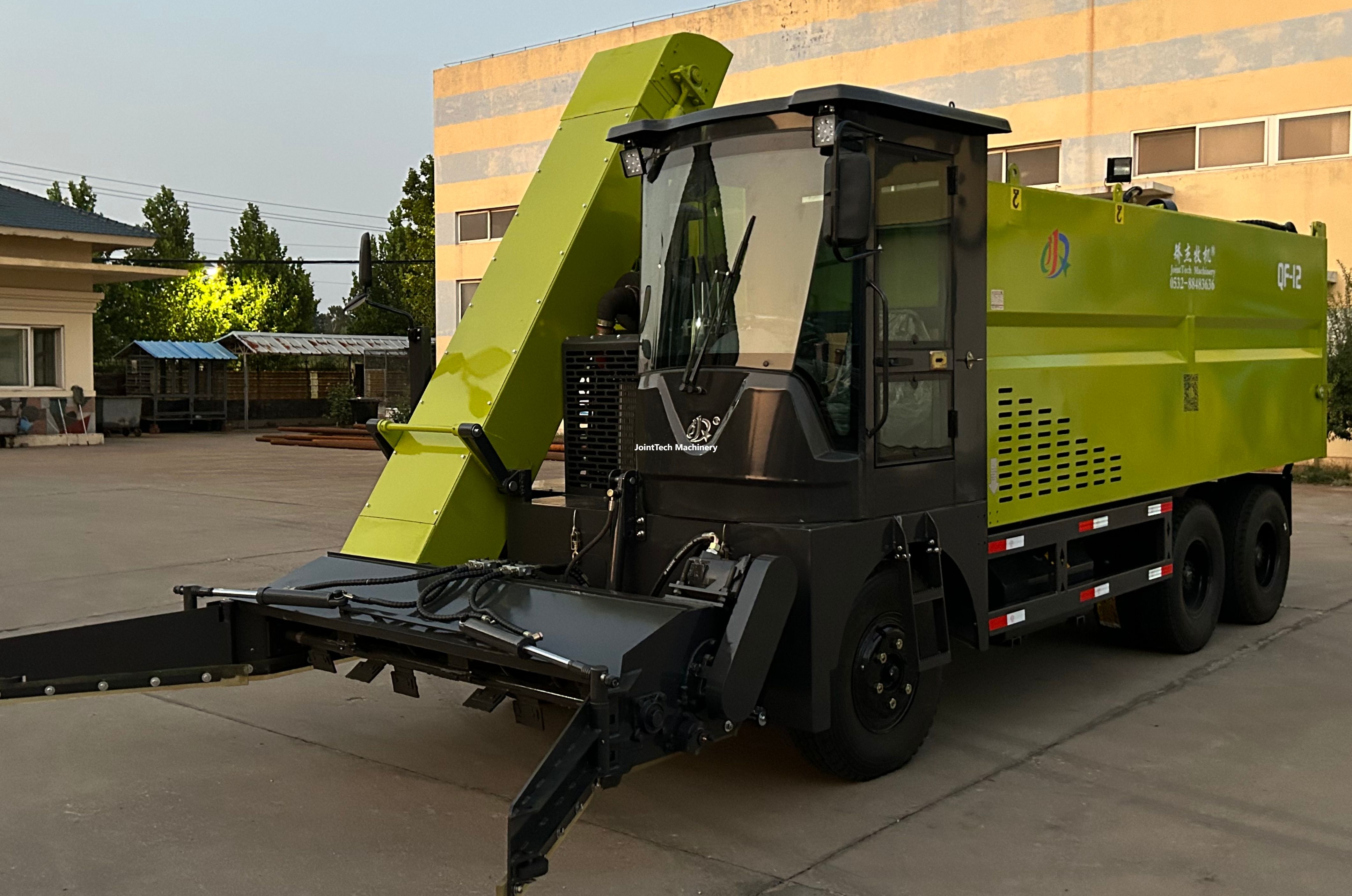

Adjustable scraper width
The hydraulic cylinder expands the scraper to both sides, and the maximum width of manure removal can reach 3.6 meters.
Bottom Wheel
By enabling the shovel to glide and roll on the ground, it reduces resistance, prevents damage to the surface, and lowers energy consumption.
Chain Lifting
When the manure scraper collects some excrement/feces, they will be transported to the rear via chains and rubber plates.
Inside auger
The rotating auger inside the box prevents manure from clogging at the entrance.
Operate Rod
Only one driver needs to sit in the cab and push the pull rod to complete the manure removal work, saving a lot of labor and easy to operate.
Oil Cooler
Utilize a large area oil cooler to lower oil temperature, ensuring the engine operates continuously and normally.
Use Of Cow Manure Collector
Application scenarios
Dairy Farm: The scale of dairy farming is large and the yield of manure is high. The manure cleaning truck can quickly clean the manure in areas such as cowsheds and milking parlors, keeping the environment clean and improving milk quality.
Beef cattle ranch: It can provide a clean and comfortable growth environment for beef cattle, promote their growth and development, and improve breeding efficiency.
Sheep Ranch: The space in the sheep house is relatively small, and the manure truck can flexibly enter to clean the sheep manure, keep the sheep house dry and hygienic, and reduce the occurrence of parasites and diseases.
Q: Why do you need a cow dung collector?
a. A comfortable experience for the cows
b. A cleaner floor results in cleaner hooves
c. Save a lot of labor
Q: Does this cow manure collection machine require electrical wiring?
The cows and yourself will experience little to no hindrance from the machine. The machine does not require cables or
gutters. This ensures a more secure living environment for the cows. Thanks to its compact design the collector can easily navi-gate in between the cows, the sorting gates and around the cubicle passages and waiting area.
Q: What advantages does this cow manure collector machine offer?
The Collector is specifically designed for barns with solid floors and takes a revolutionary diverse approach when compared to traditional manure scrapers. The Collector does not push manure, but use auger and chain to transmit it.
This makes the build-up of manure -in which cows stand - a thing of the past. This not only makes for a cleaner floor, it also ensures the cows' hooves remain cleaner. This improves both cow health and the well-being of the animals.
Q: What is the working efficiency of this cow manure collector machine?
It needs only one worker to operate and can finished 1000 cows farm's manure collecting within 2 hours which makes this job easier.lt is very effective and labor saving. It can load and unload automatically,after the dung/manure collect work is over, you can transport the dung/manure to where you need it.
Q: What about warranty?
We will send the wearing parts of each machine when delivery. Warranty is 1 Year, during this period, we will offer free spare parts if they are damaged. After warranty, we send the parts in a reasonable price.
