4 cbm Self Propelled TMR Mixer

Name: 4 cbm Self Propelled TMR Mixer
Brand: JOINTTECH
Rating: 5.0 (54 reviews)

Total Mixed Rations (TMR) feed blenders are suitable for use on cow, cow, sheep and goat farms. The machine can be used for shredding and mixing all kinds of grass, straw and silage crops and other feeds.
TMR mixers can reduce the amount of work to feed the farm and save labor costs. TMR provides more control and accuracy for dosing feeds than feedstock alone.

Model:
MITMR-04C
Brand:
JOINTTECH
Code:
MITMR-04C

Availability:

Quantity:



Inquire Add to Basket

Self-propelled feed mixer Drivable TMR mixer Self-Propelled TMR Mixer portable self-propelled feed mixer TMR Mixer 4 cubic metre Automatic feeding mixer. Mobile Feed Mixer Livestock TMR Mixer commercial self-propelled feed mixer electric self-propelled feed mixer

Product Description

Company Profile

FAQ

Product Description

The development of the JointTech self-propelled mixer aims to provide a comprehensive solution for farms with dairy cows, beef cattle, sheep, goats, donkeys, and horses, integrating weighing, loading, mixing, and feeding of feed into one system. With the self-propelled mixer, a single worker can load, mix, and feed the total mixed ration, significantly saving labor.

The machine's box body and spiral auger are made of Q355 steel, which is hard, wear-resistant, and corrosion-resistant. The machine is equipped with a bucket that can replace the work of a loader to achieve the purpose of loading feed. The adjustable height discharge belt is suitable for farms where the feeding trough is higher than 50 centimeters.

Product Specifications

No	Item	Data
1	Power	25 HP
2	Bucket capacity	4 M3
3	Loading weigh	1.4 Ton
4	Auger Qty'	1 Set
5	Cutting Blade Qty'	7 Sets
6	Mix Time	20 Minutes
7	Discharge Type	Side Discharge
8	LWH(mm)	460020002150

Product Configuration

d13f9e6cbed6e4fb2a351c7242333bb

Fully Welded Mix Boby

Floor Steel Thickness: 12 mm

Side Steel Thickness: 6 mm

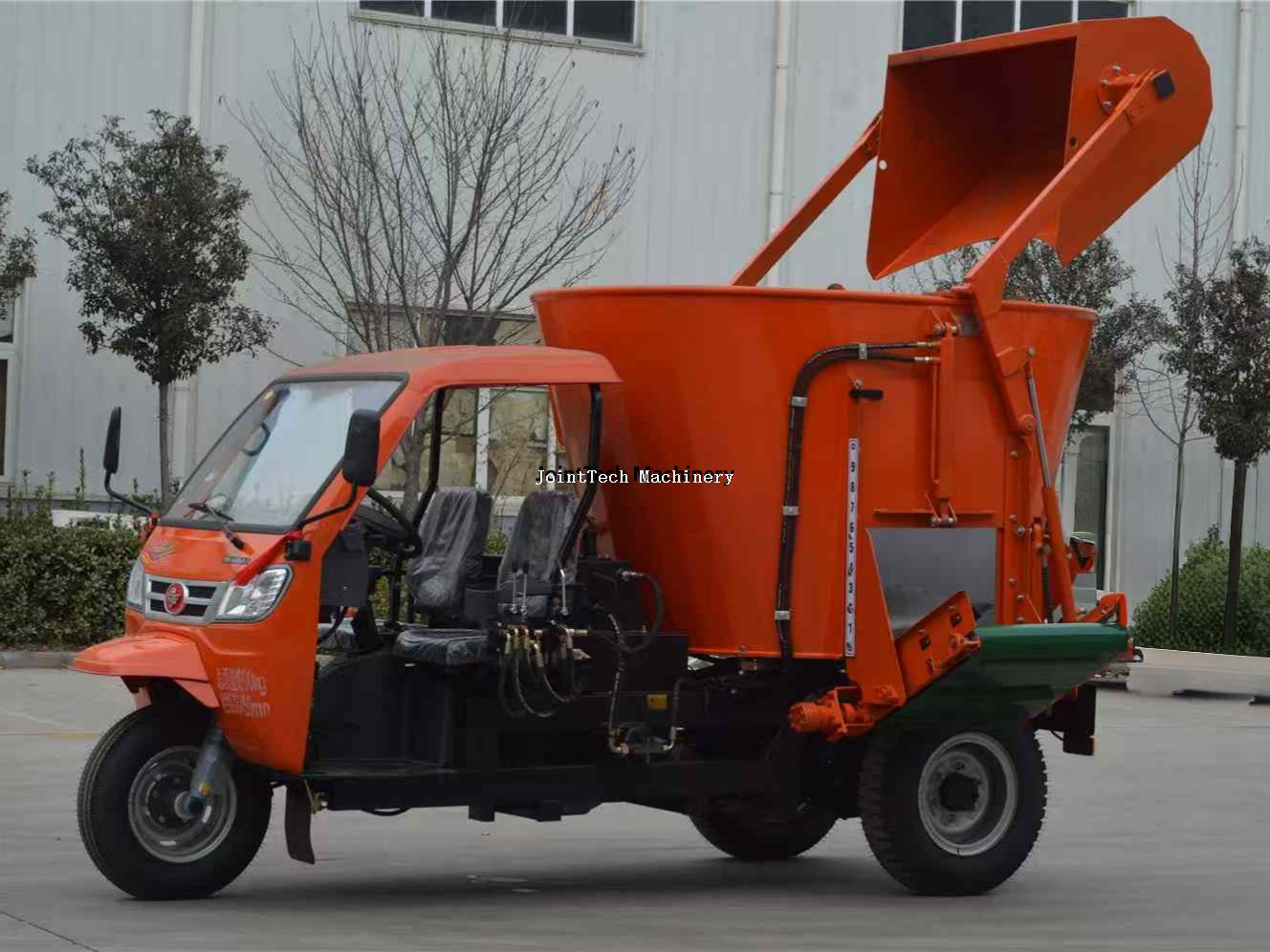

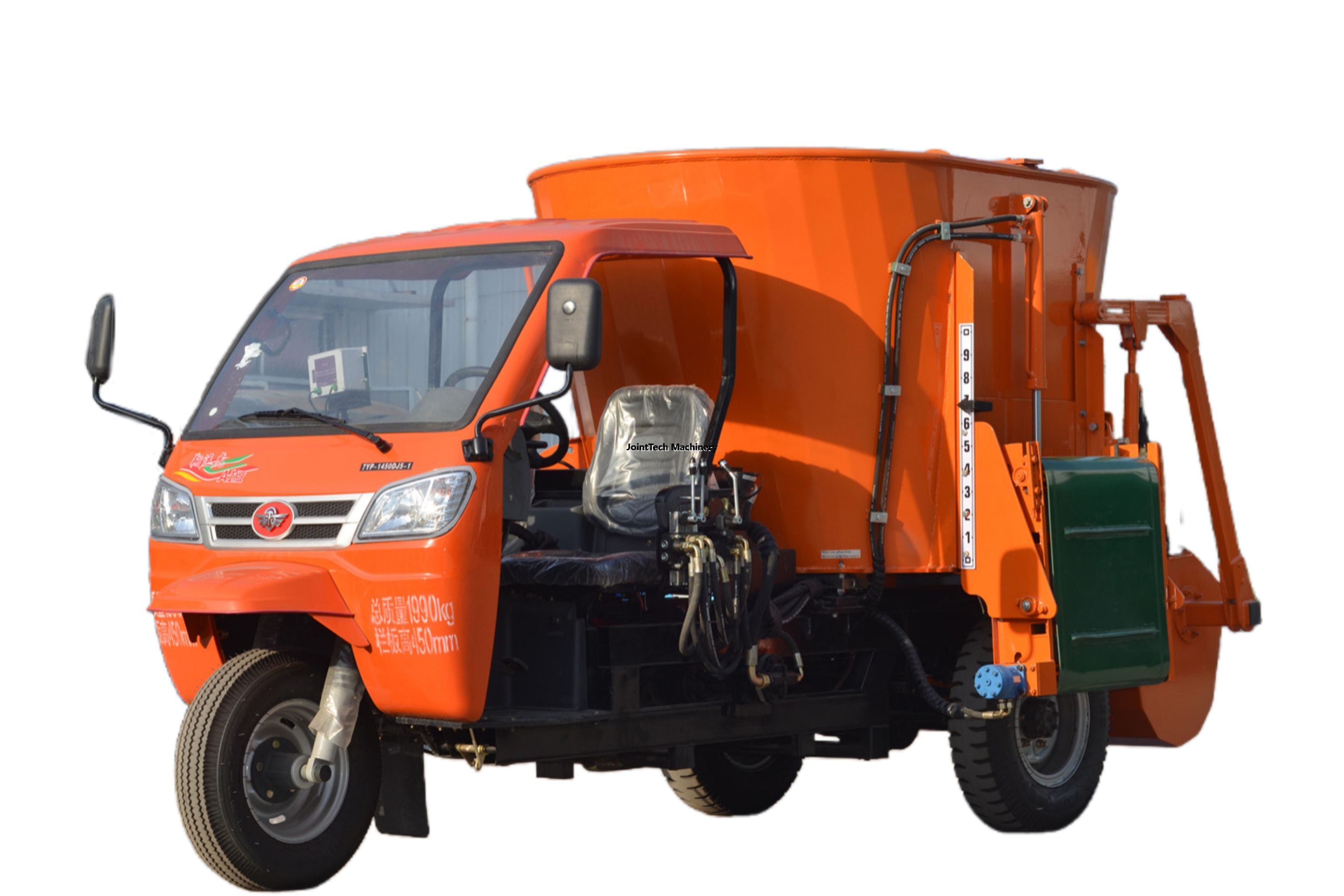

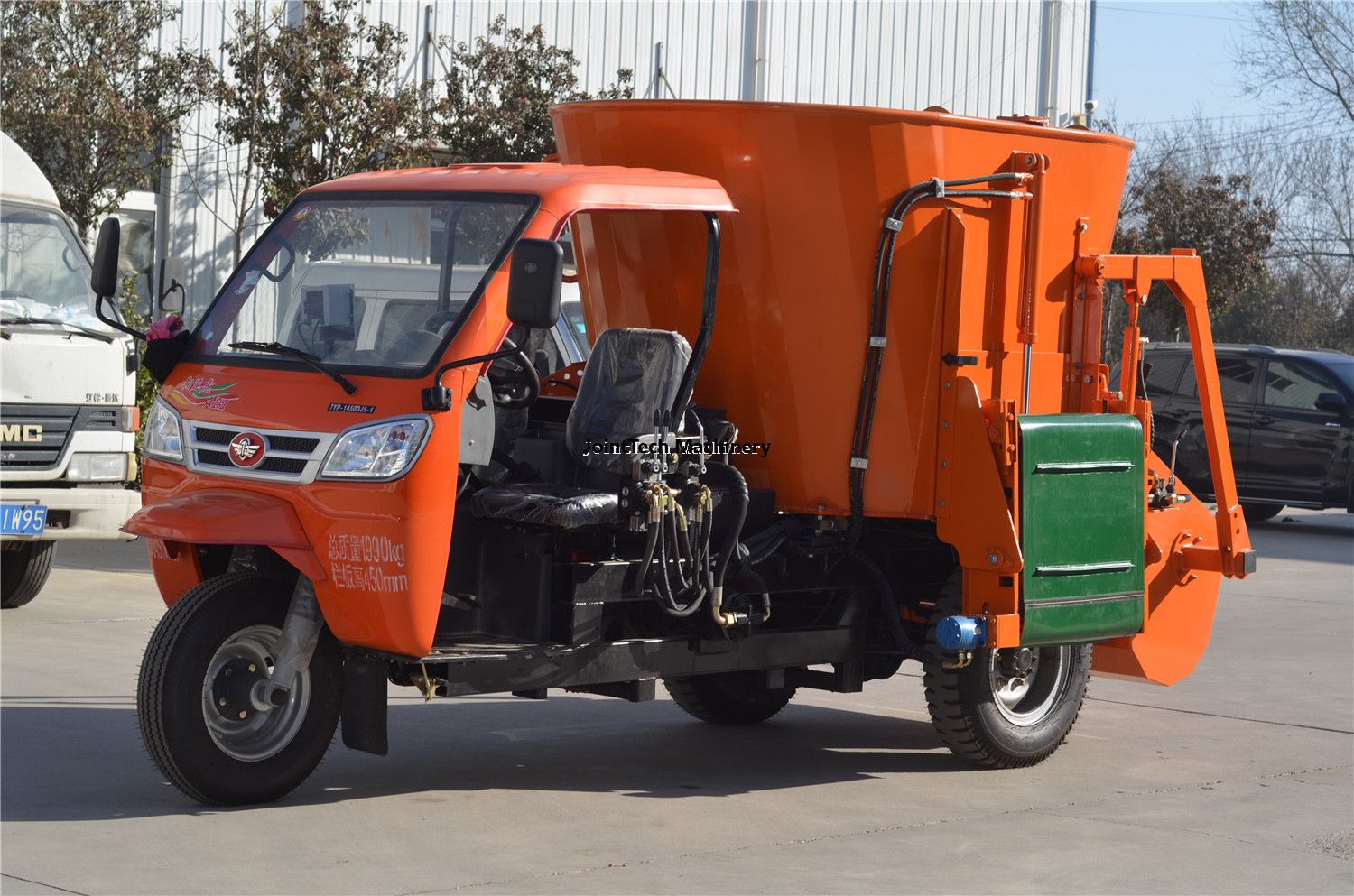

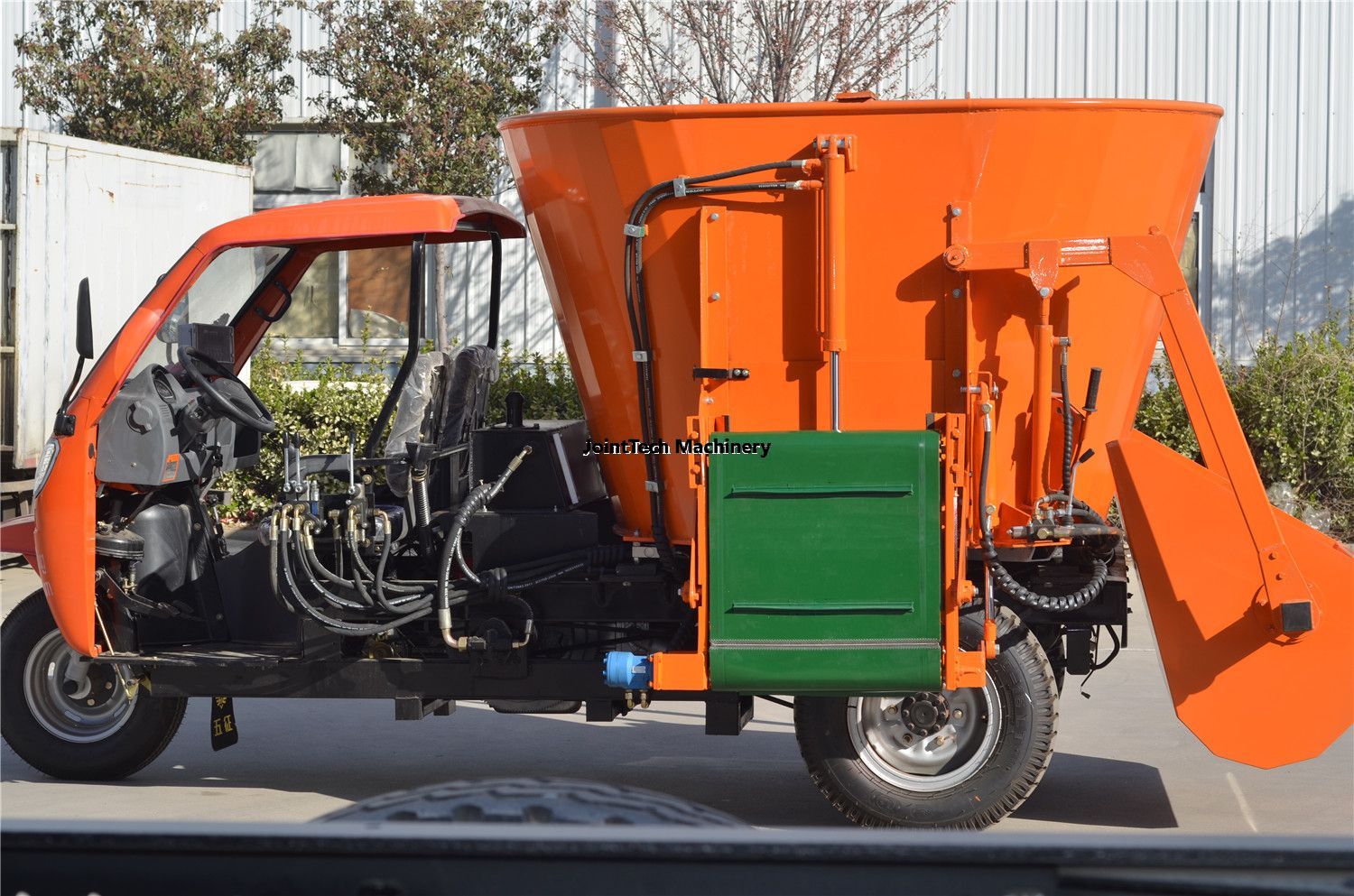

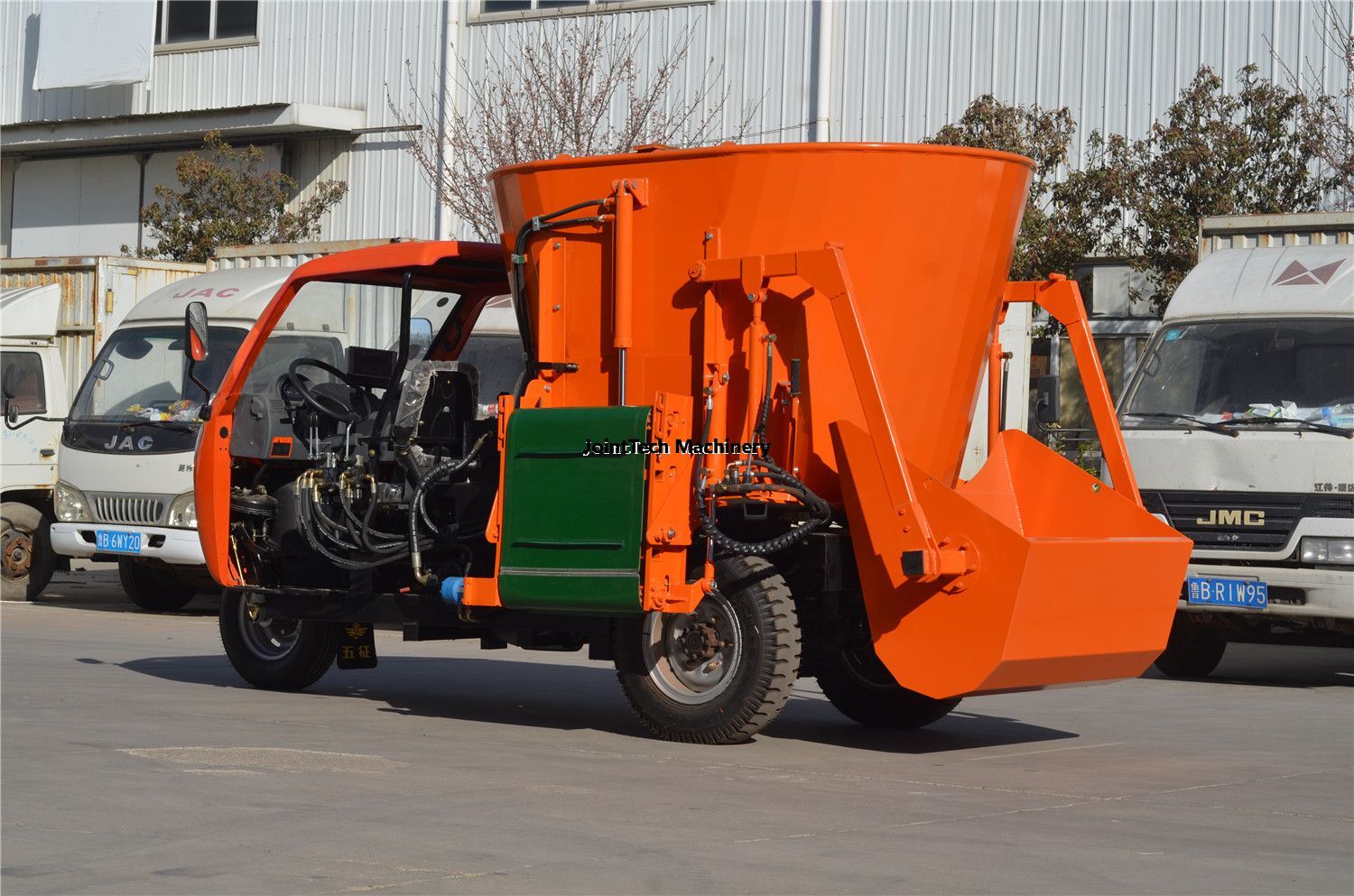

MITMR-04C Self Propelled

A drivable and movable blender.

product-xdd05 Planetary Gearbox

Big torque,stable transmission, low noise, easy to be lubricated and long service life.

product-xdd08 Weighing Sensors

4-point Sensitive Weighing Sensor

(Weighing from 5Kg to 8000Kg)

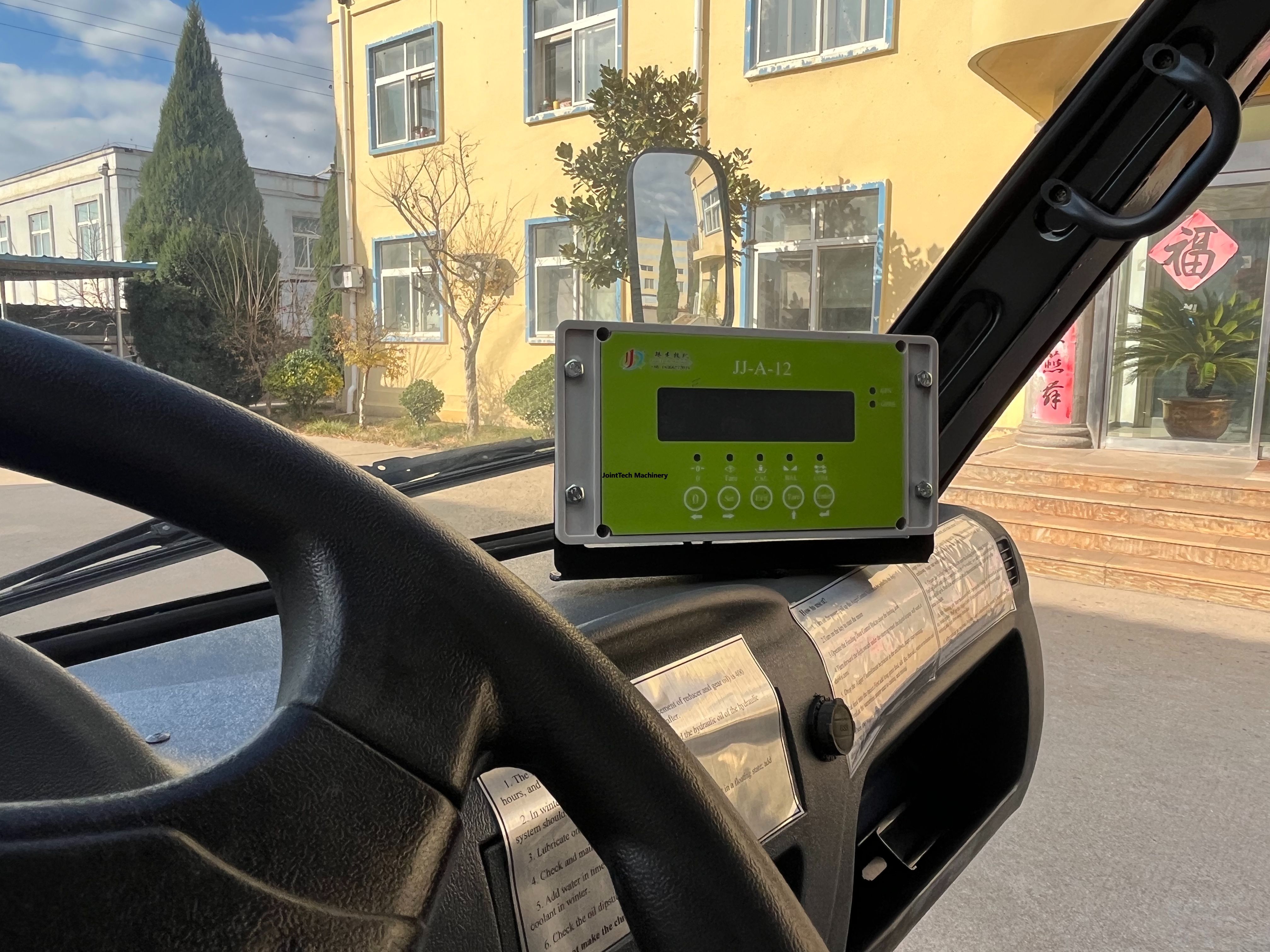

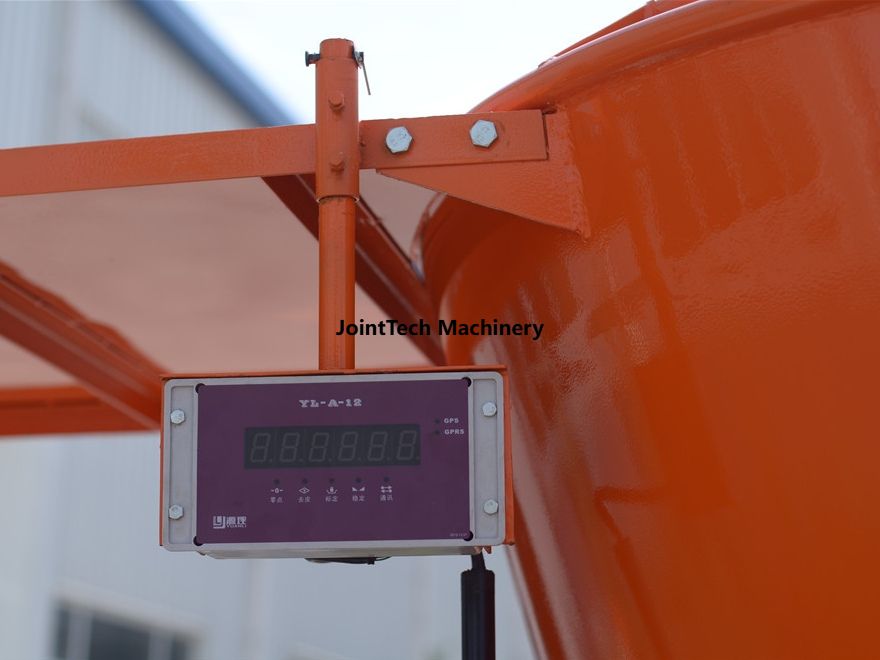

Weight Display

The weight display visible in the cockpit.

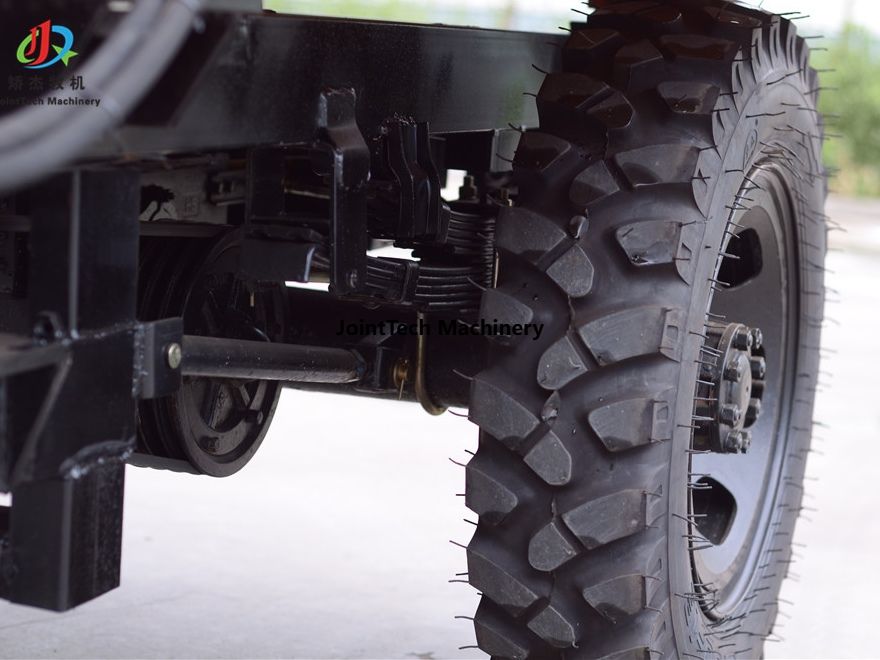

Tire

The car body is equipped with three thickened non-slip tires.

LED

The weighing display clearly shows the load weight.

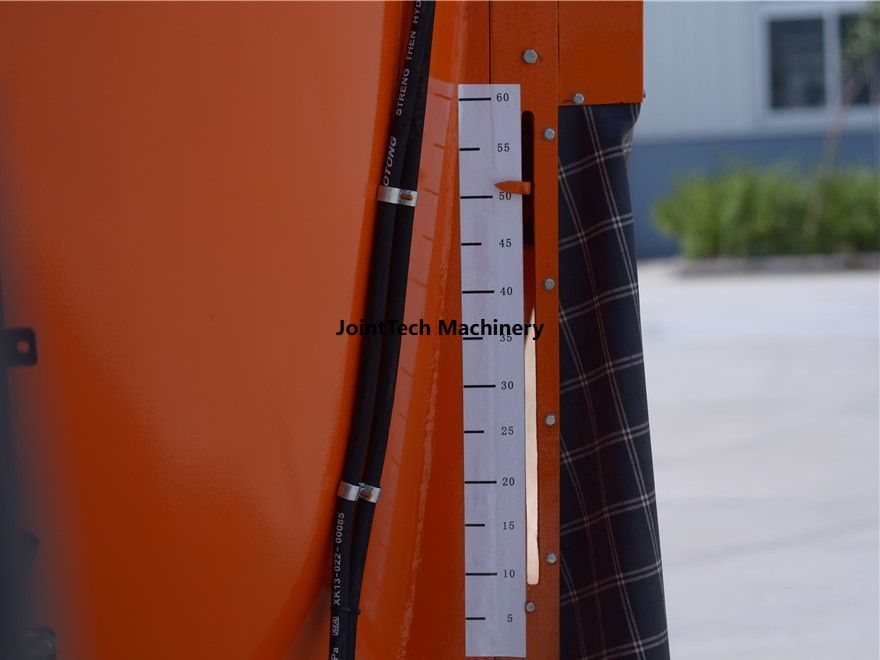

出料门标尺Discharge Ruler Discharge Ruler

With this ruler as a reference, the discharge door is lifted to a suitable height.

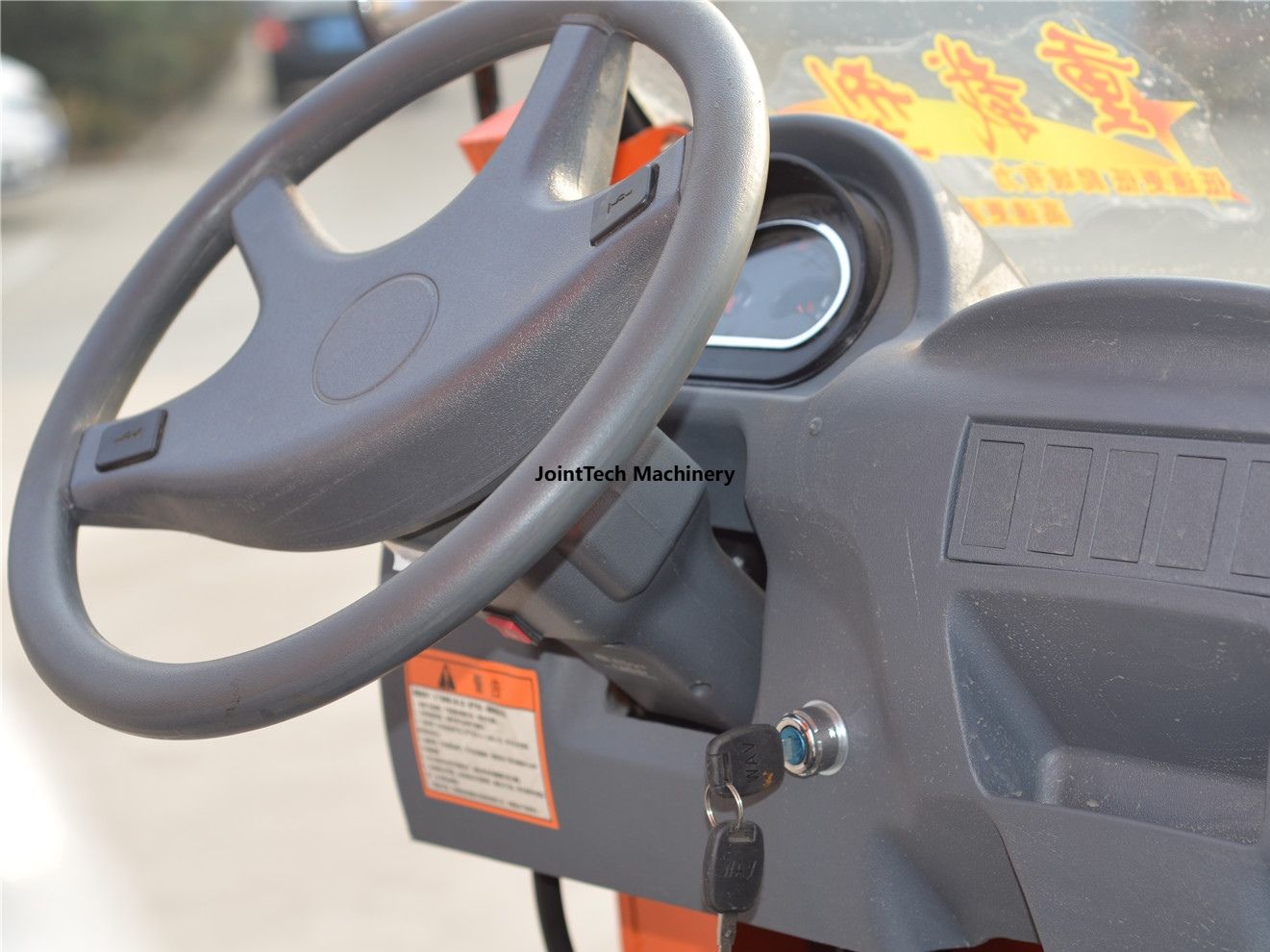

Key Start

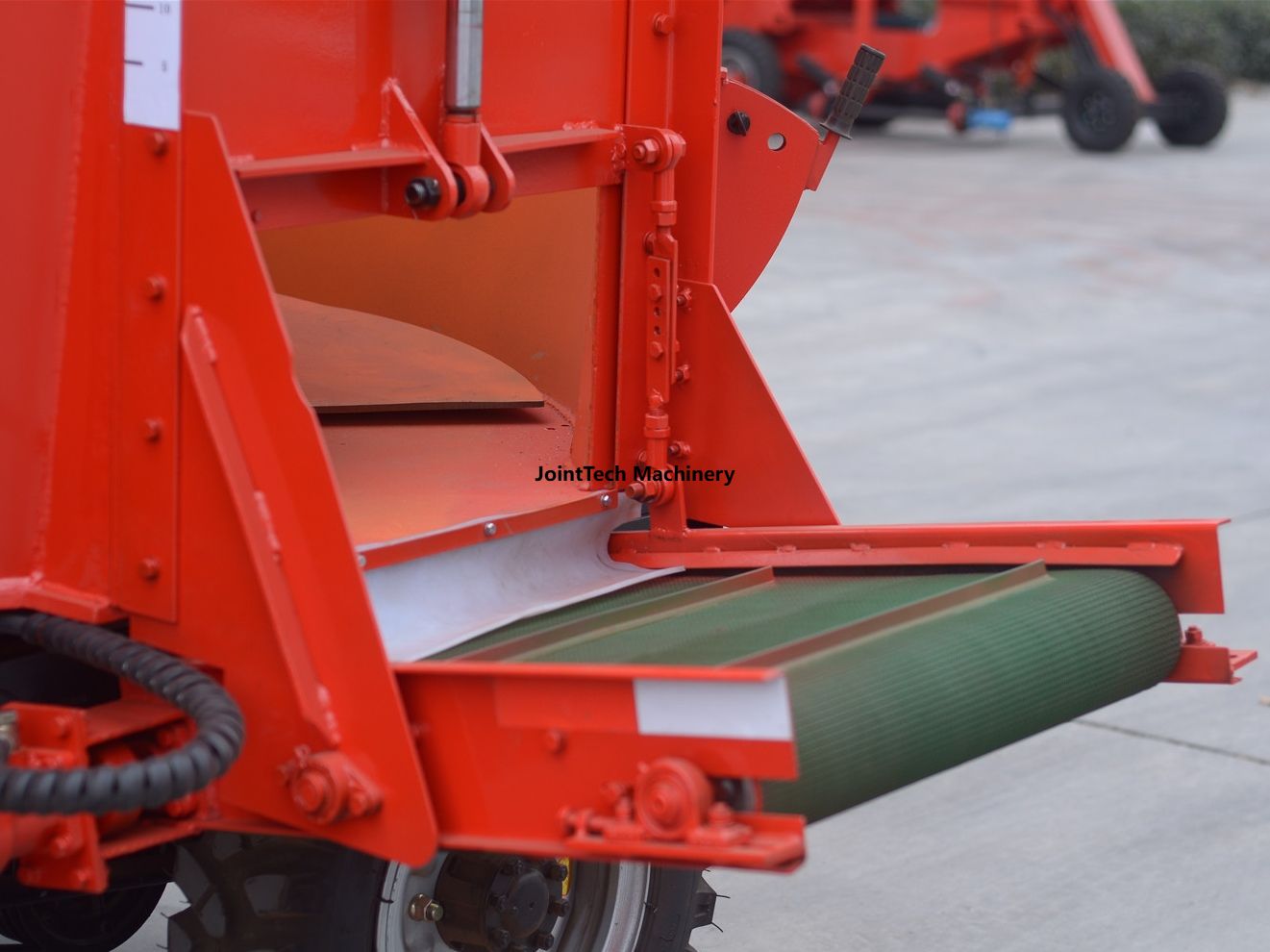

Rubber Conveyor Belt

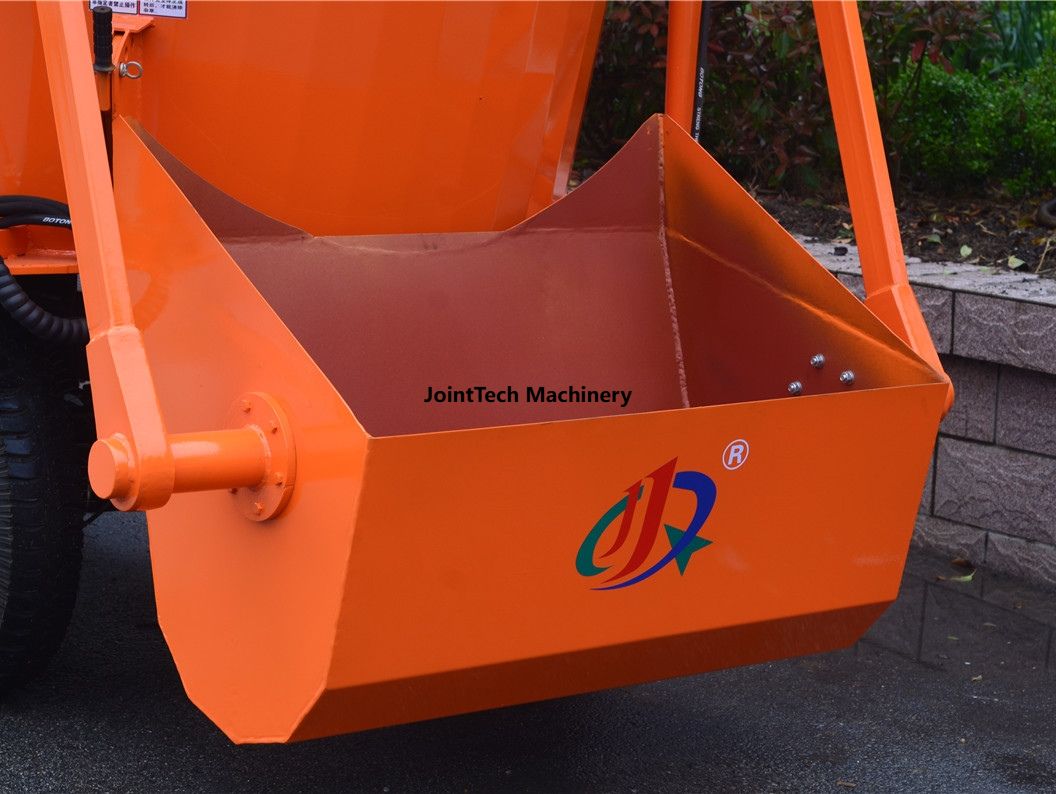

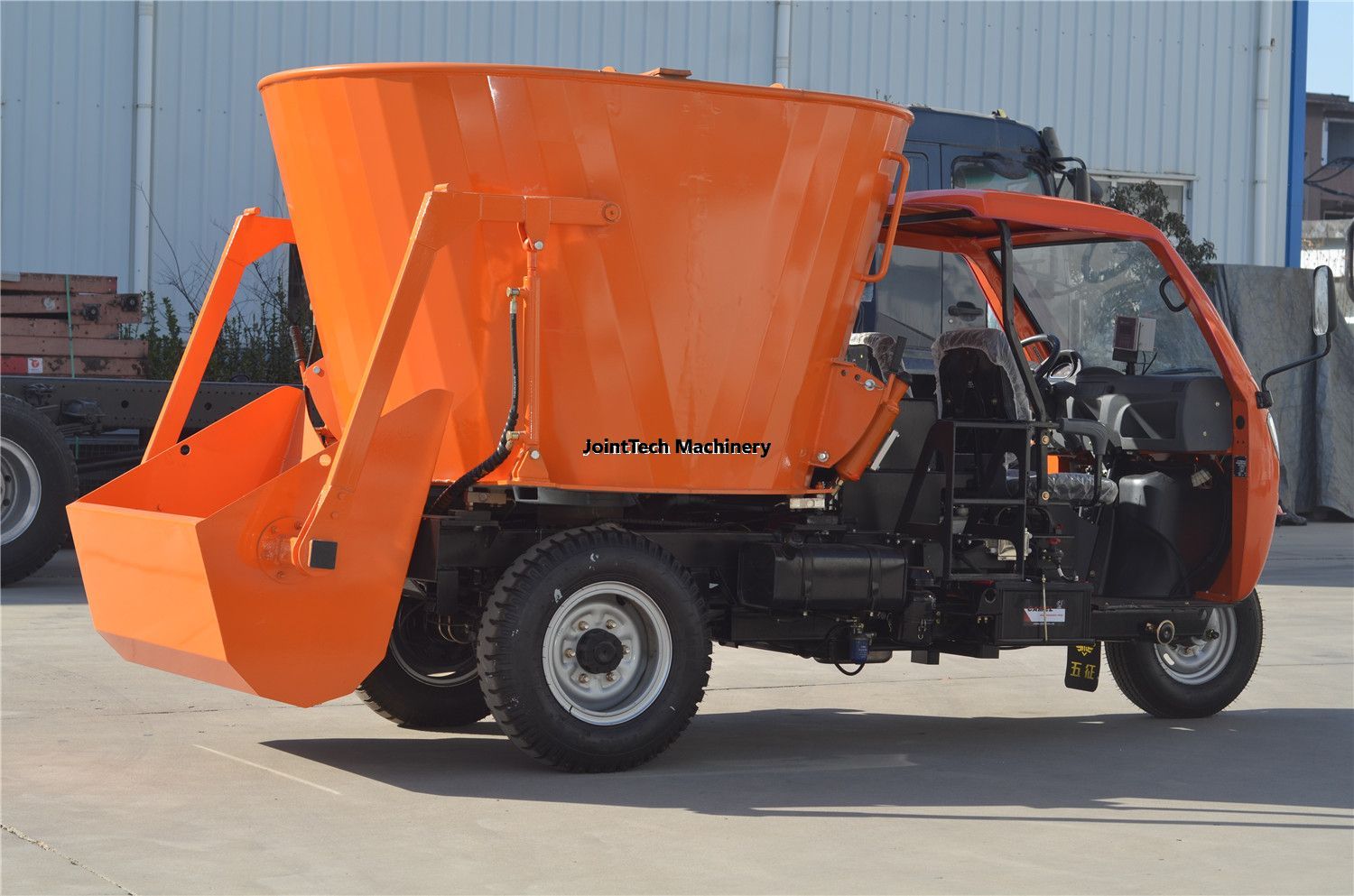

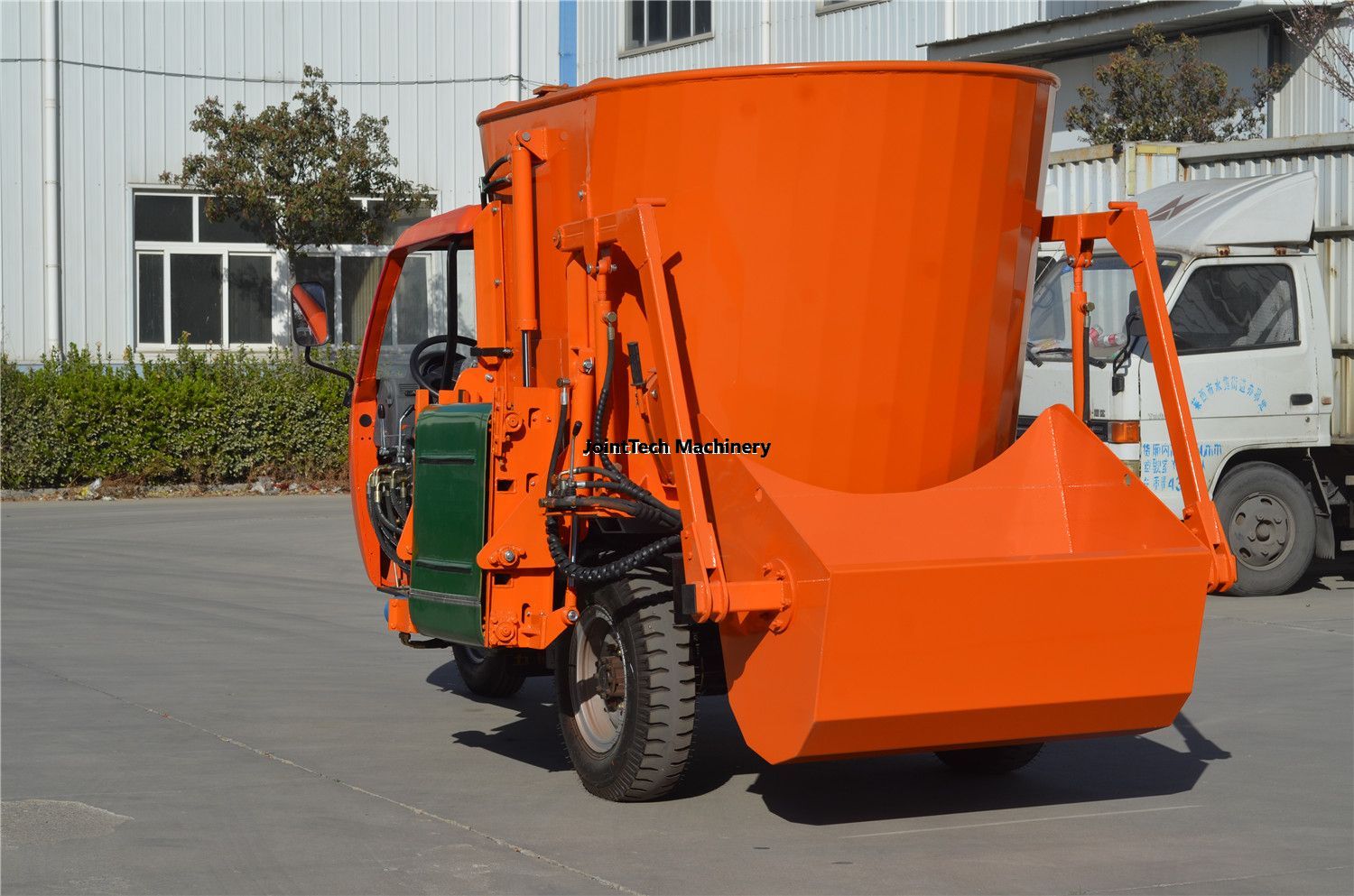

Loader Bucket

Max Load 300Kg

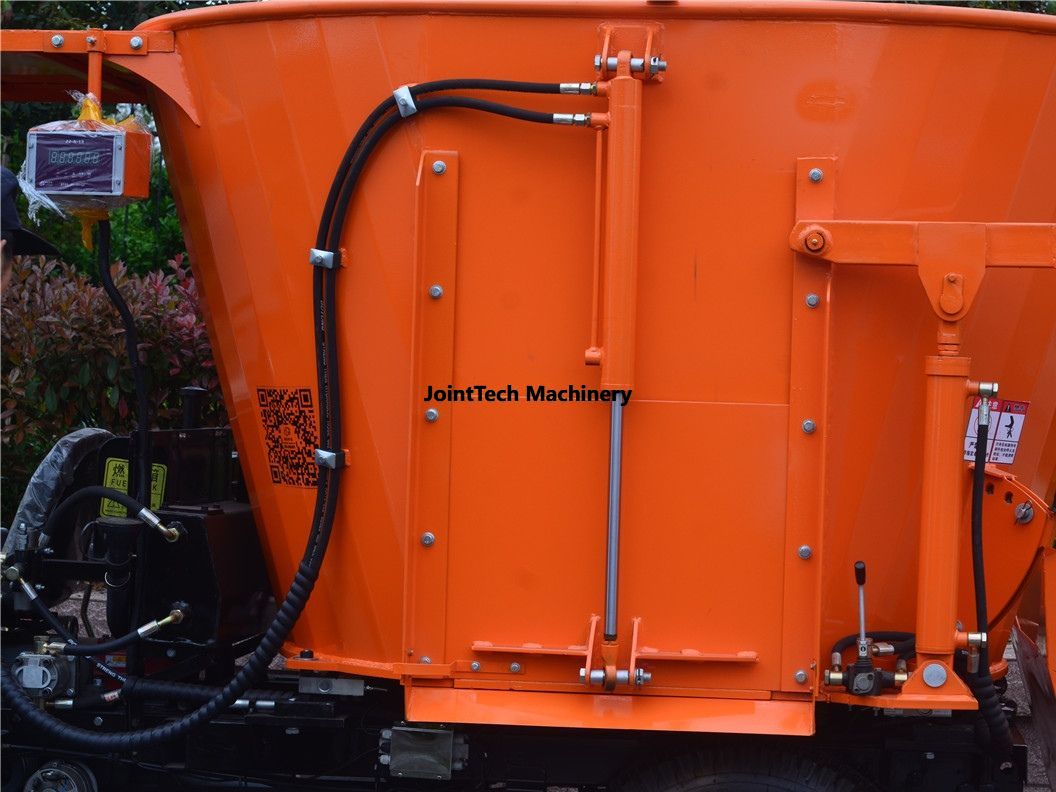

Hydraulic Rapid Discharge Door

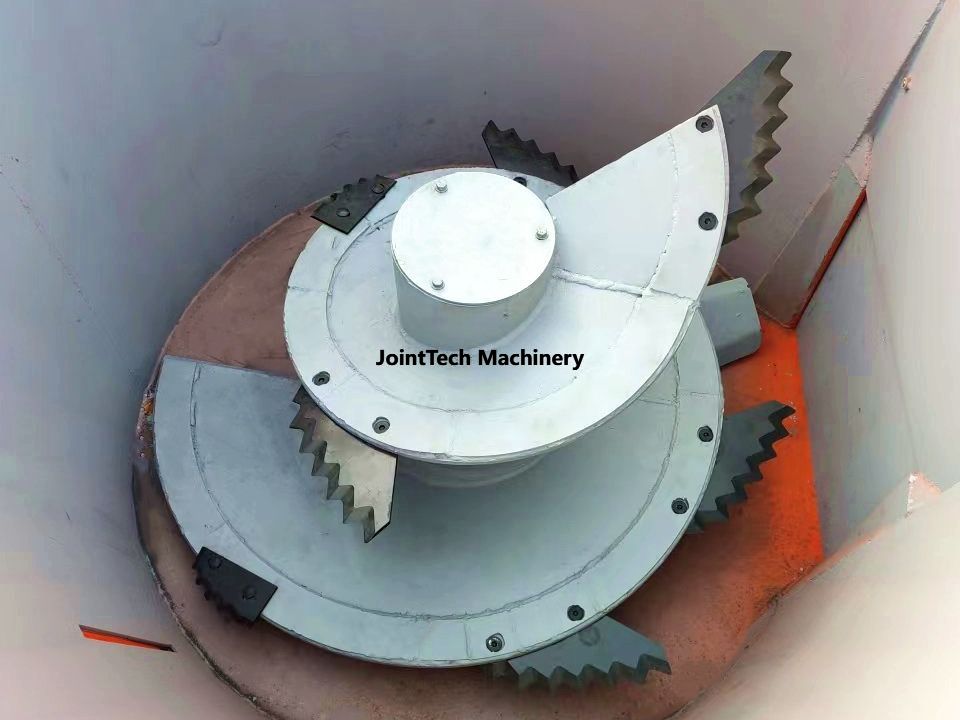

Mix Auger

Auger Flighting Thickness: 12 mm

Cutting Blade

Heavy Duty Carbide Coated Knives

公司名片

product-aad30

公司名片2 product-aad33

Payment

Q: Are you trading company or manufacturer?

A leading livestock farm equipment manufacturer in China since 2016.

Q: What about warranty?

We will send the wearing parts of each machine when delivery. Warranty is 1 Year, during this period, we will offer free spare parts if they are damaged. After warranty, we send the parts in a reasonable price.

Q: Do you accept OEM, ODM order?

Absolutely. Any customized order is warmly welcomed.
