Features:
1. The mixing screw conveyor is CNC formed with a thickness of 24mm, and an 8mm thick wear-resistant plate is added to make the feed boil and turn over, shorten the mixing time, and mix more evenly.
2. The cutting blade is 8mm thick, tungsten carbide.
3. The thickness of the mixing box side is 10mm, and the thickness of the mixing box bottom plate is 20mm
4. The weighing system is sensitive and stable, and the display is clear.
The advantage of stationary feed mixers is that they are powered by electricity, enabling you to save on fuel costs. On large farms where feed stations are spread over a large area, it may be advantageous to mix the feed in a central location and then unload it using a delivery truck. Stationary feed mixers are also a good solution on smaller farms, for example if you want to distribute the feed using a conveyor system or if there is no space on the feed alley for a mixer truck. We offer stationary feed mixers from 3 to 60 cubic meters.
Its simplicity means that any maintenance costs are low and the machine runs efficiently.
5. Remote control function and wear plates can be installed
Specification：
Model | Dimensoon L*W*H | Mix Auger | Cutting Blade | Motor Power | Weighing Sensors | Max Load | Mix Time (Minutes) | Warranty |
STMR-05 | 300*170*212 | 1 | 5 | 11 | 4 | 1500 | 20 | 1 Year |
STMR-07 | 316*189*238 | 1 | 6 | 15 | 4 | 2400 | 20 | 1 Year |
STMR-09 | 346*216*256 | 1 | 9 | 22 | 4 | 3000 | 20 | 1 Year |
STMR-12 | 380*216*280 | 1 | 9 | 37 | 4 | 4200 | 20 | 1 Year |
STMR-14 | 486*186*236 | 2 | 12 | 37 | 4 | 4800 | 20 | 1 Year |
STMR-16 | 560*216*245 | 2 | 18 | 55 | 4 | 5600 | 20 | 1 Year |
STMR-18 | 586*216*245 | 2 | 18 | 55 | 4 | 6300 | 20 | 1 Year |
STMR-20 | 600*216*255 | 2 | 18 | 75 | 4 | 7000 | 20 | 1 Year |
STMR-24 | 650*216*303 | 2 | 18 | 75 | 4 | 8400 | 20 | 1 Year |
| STMR-32 | 650*266*330 | 2 | 18 | 112 | 4 | 11200 | 20 | 1 Year |

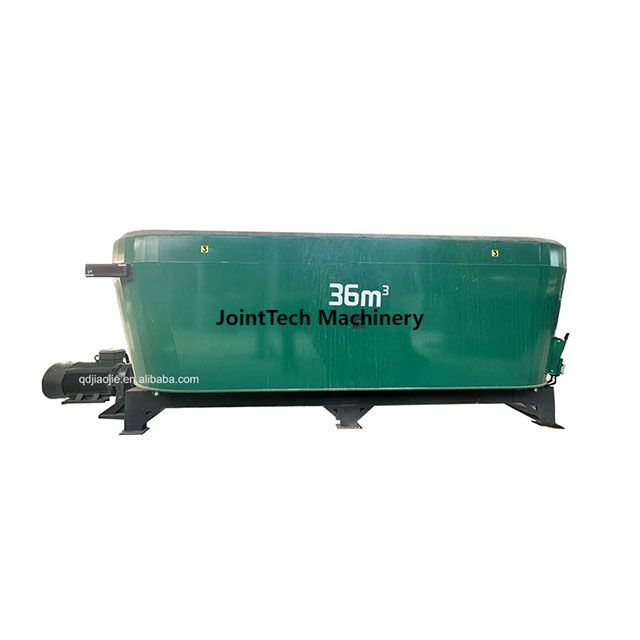

STMR-36 | 900*245*286 | 3 | 30 | 132 | 4 | 12600 | 20 | 1 Year |
Tips：
Adding Feed order:
(1) Basic principles: according to the formula to follow the first dry after the wet, the first fine after the rough, the principle of light and heavy;
(2) Add order:
A. long grass (Leymus chinensis, wild hay, alfalfa, oat grass)
B. concentrate (raw grain, concentrated material, etc.)
C. Accessories (apple meal, cottonseed, wet beer distillers, etc.)
D. silage
E. Water or molasses
(3)In the mixing process should be noted that the charge can not be too full, leaving a certain amount of mixing cycle space.
Efficient mixing must be given to the chassis at least 20% free space for the feed cycle of mixing. To avoid the phenomenon of "arch bridge", that is, the feed is not recycled mixing, all take the deputy in the dragon, this will increase the load of the dragon, affecting the mixing effect.
